20-Ton High-Precision Heavy-Duty Dual Lift Platform for Automotive Manufacturing

Overview

This case study details a customized heavy-duty material handling solution deployed for a leading global automotive production line equipment supplier at a major heavy machinery manufacturing base in Asia.

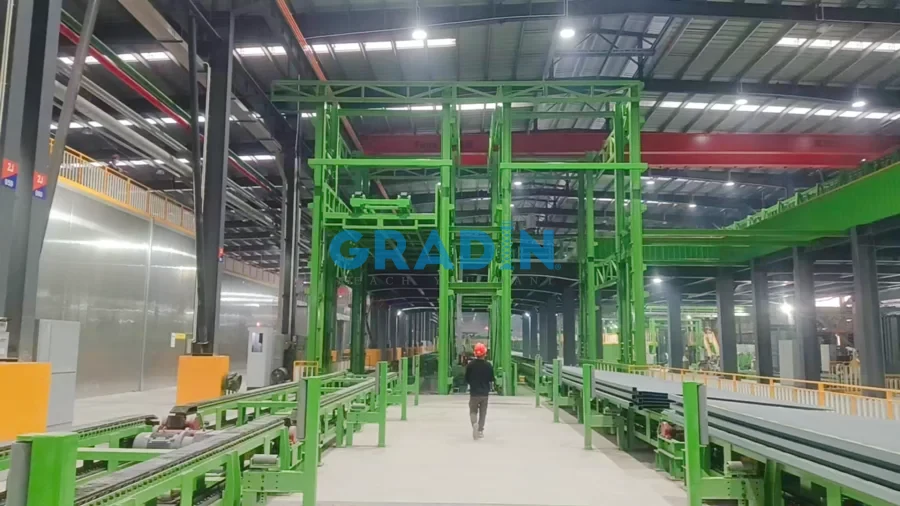

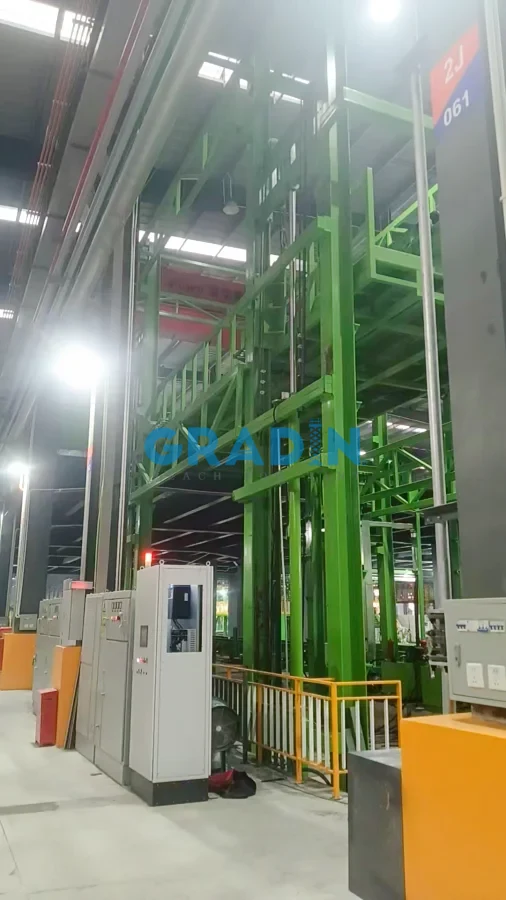

The core of the project is two large-scale guided lift platforms installed side-by-side to work in coordination.

They are designed to address the efficient, precise, and safe vertical transfer of oversized workpieces, such as chassis frames, between different levels of a fully automated production line.

Engineered to meet stringent industrial continuous operation standards, this system integrates high load capacity, high cycling frequency, and exceptional synchronization accuracy, serving as a critical nexus in a modern, world-class manufacturing flow.

Basic Parameters

Parameter Category	Specifications
Model	Guided Scissor Lift Platform (SJD20-6.5)
Client	A Global Automotive Equipment Solutions Provider
End-User Site	A Heavy Machinery Manufacturing Plant (Asia)
Layout	Two units installed in parallel, ~1m center-to-center spacing
Platform Size	4000mm (W) × 12000mm (L)
Rated Load	20 Tons (5-ton eccentric load capable)
Lift Travel	6500mm
Operation	2 stops, 1 station (meets line tact time)
Duty Cycle	24/7 operation, 400 cycles/day, 350 days/year
Core Structure	4 cylinders, 8 columns, 300 H-beam guide rails (8 pcs)
Sync Precision	Longitudinal (12m) error ≤15mm; Lateral (4m) error ≤10mm
Control System	Siemens S7-1200 PLC, Dual Synchronizing Motor Backup System
Safety	Mechanical Anti-Drop Device (any position), Hydraulic System Blow-off Valves
Key Components	Hydraulics (Hengli Cylinders, Huade Valves, Jianghuai Motors), Electrical (Schneider, Siemens), Bearings (NSK/HRB)

Challenge

High Intensity & Load: Required stable transfer of 12-meter-long, 20-ton heavy chassis frames, posing a primary test for structural strength and long-term fatigue resistance.
Extreme Operational Frequency: 24/7, high-frequency operation (400 cycles/day, 350 days/year) pushed the durability of hydraulic systems, mechanical structures, and components to the limit.
Critical Synchronization Accuracy: The massive platform must achieve millimeter-level synchronization under all load conditions for seamless docking with conveyor lines, preventing workpiece jams or equipment damage.
Absolute Safety Guarantee: Any risk of catastrophic failure during heavy workpiece transfer was unacceptable, requiring a failsafe safety system.
Stringent Specifications: The client mandated a full suite of premium industrial brands for all critical components, demanding superior technical integration and quality control from the supplier.

Workflow

Loading: Overhead chain conveyors transfer heavy workpieces (e.g., frames) onto the platforms of the two parallel lifts.
Lifting & Synchronization: Upon command, the four large-diameter cylinders of both units synchronously lift the workpiece to the target floor, controlled precisely by the dual synchronizing motor system.
Precision Leveling & Docking: The PLC control system ensures accurate positioning and perfect alignment with the floor conveyor line, maintaining errors within strict tolerances.
Unloading & Return: The downstream conveyor removes the workpiece. The platform then descends safely to the loading position under the constant protection of the anti-drop device, ready for the next cycle.

Solutions

Ultra-Rigid Structural Design: A 4-cylinder, 8-column system with 300 H-beam guide rails forms an ultra-stable load-bearing frame, ensuring no deformation under continuous heavy loads.
Industrial-Grade Continuous Duty Hydraulic System: The core employs a high-performance system with a dual-pump, dual-synchronizing motor (one active, one standby) setup and an oil cooling unit, guaranteeing reliable, precise, and uninterrupted operation.
Multi-Layer Safety Protection: Beyond hydraulic safety valves, an innovative full-travel mechanical anti-drop device was added, providing a physical lock for dual-layer safety.
Premium Control & Integration: A Siemens S7-1200 PLC achieves millisecond-level closed-loop control. The control cabinet meets IP66 protection, suitable for harsh industrial environments.
Full Compliance with Specifications: We sourced and integrated all components as per the client’s strict bill of materials, ensuring performance and longevity that meets global manufacturing standards.
