5 Tons Two-Level Vehicle Scissor Lift | USA Parking Case Study

Overview

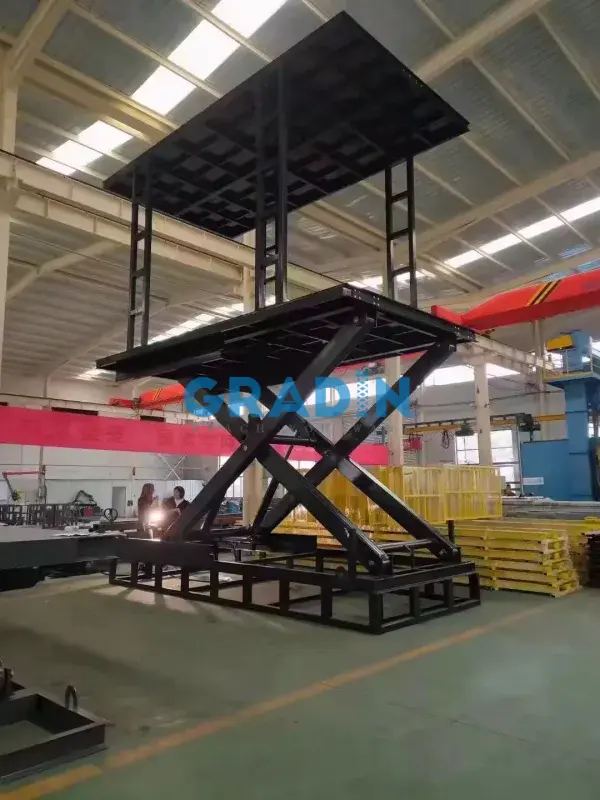

This project: involves a customized two-level vehicle scissor lift for export to the United States, primarily used to optimize parking space and enable double-decker vehicle parking.

The Client: Is an end-user in the USA who conducted their own site measurements and repeatedly confirmed the design dimensions, reflecting a high degree of customization and client involvement.

The equipment must meet export sea freight container loading requirements, with the main structure width limited to under 2 meters.

Basic Parameters

Parameter Category	Specification	Notes / Explanation
Equipment Model	Two-Level Vehicle Scissor Lift Qlift20250415	Custom Design
Basic Parameters	Rated Load: 5500 kg (2750 kg per level)	Meets load-bearing requirement for two vehicles
	Travel Height: 2819.5 mm
	Self-Height (Lowered): 635 mm	Low pit requirement, easy installation
	Stops: 2 Stops, 2 Levels	Corresponds to lower and upper deck
Deck Dimensions	Lower/Upper Deck: 5500 mm × 2600 mm	Accommodates standard sedans and SUVs
Pit Dimensions	Length 5543 mm × Width 2635 mm × Depth 3454.5 mm	Client-specified and confirmed dimensions

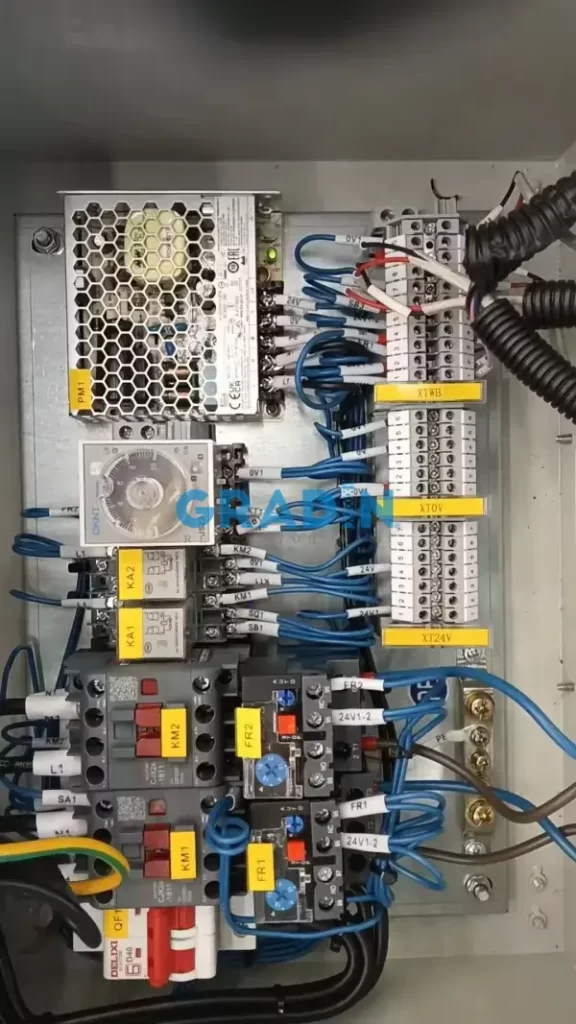

Power System	Motor: 230V, 60Hz, Single Phase	Compliant with US local electrical standards
	Power Unit: 7.5 kW

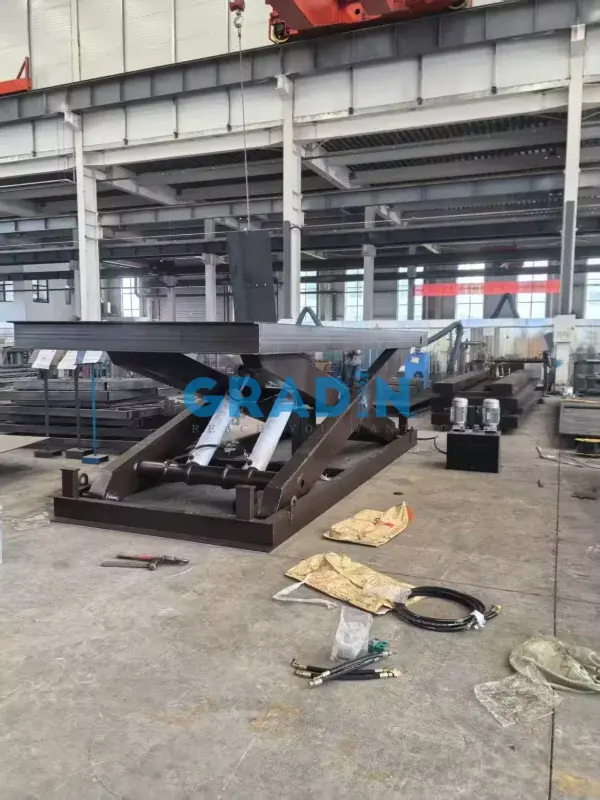

Key Structural Materials	Scissor Arms: 2501508 mm	Ensures overall rigidity
	Cylinder: φ140-100 mm
	Pivot Shaft: φ159-40 mm
Finish & Shipping	Paint Color: Brown
	Main Structure Width: < 2000 mm	Meets export container loading restriction

Key Features

High Space Efficiency: The two-level scissor design doubles the number of parking spaces within the same footprint, effectively addressing parking space shortages.
Customization & Precise Fit: All structural dimensions (especially pit dimensions) were repeatedly confirmed by the client, ensuring perfect compatibility with the site’s civil works and reducing installation difficulty and risk.
Export-Adaptive Design:
- Electrical Compatibility: Uses US-standard 230V/60Hz single-phase motor, eliminating the need for client-side electrical modifications.
- Shipping Optimization: Main structure width is strictly controlled under 2 meters for easy loading into standard containers, reducing international logistics cost and complexity.
Heavy-Duty Load & Stable Structure: The 5500 kg total load capacity, combined with heavy-duty channel steel/rectangular tube framing and large-diameter cylinders, ensures stable, smooth, and safe operation suitable for frequent vehicle access.
Compact Design: The low self-height of 635 mm reduces the required pit depth, broadening the range of suitable installation sites.
