Custom Dual-Layer Private Garage Scissor Lift for France
Overview
Industry: Private Residential Garage / Luxury Home Parking
Company Profile: Owner of One System based in France, specializes in high-end residential equipment and industrial lifting platform sales and services.
The company provides custom parking solutions for French luxury residential projects, installing large dual-layer scissor lift platforms for private car parking. The equipment is installed between the underground garage level and ground level to maximize space utilization.
Project Background: The customer sought customized equipment meeting luxury residential garage space requirements while conforming to international shipping container specifications.
After selecting Gradin for professional custom solutions, the equipment needed to meet French 380V/50Hz three-phase electrical standards and be shipped via 20GP container for export.
Specifications
| Parameter | Specification |
|---|---|
| Level 1 Platform Size | 2,600 × 5,900 mm |
| Level 2 Platform Size | 2,900 × 6,200 mm |
| Pit Depth | 600 mm |
| Lifting Stroke | 3,000 mm |
| Load Capacity (per level) | 4,000 kg |
| Equipment Height | 600 mm |
| Entry/Exit Direction | 2600/2900mm side |
| Voltage | 380V, 50Hz, Three-Phase |
| Component | Specification |
|---|---|
| Scissor Arms | J300×150×8, Oil-free bearings ×12 |

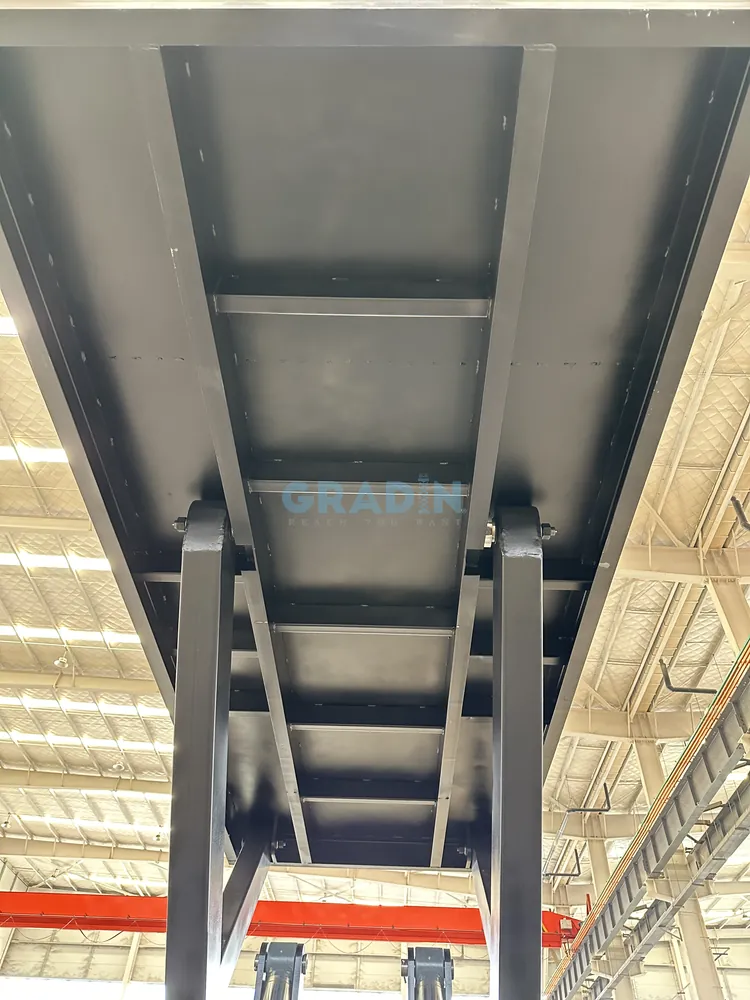

| Frame/Bottom Frame | 25# Steel Channel |
| Platform Surface | 8mm×2 Diamond Plate |

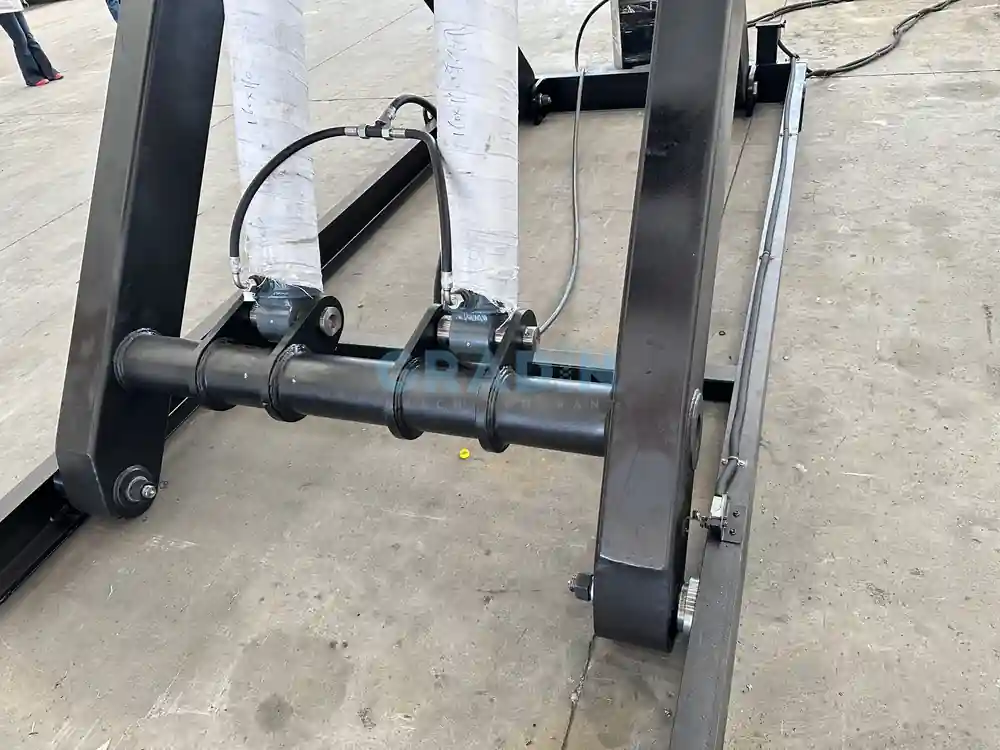

| Pivot Shaft | φ159-40 |
| Hydraulic Cylinder | Φ140×2 |
| Hydraulic Hose | φ27 |
| Pump Station | 7.5kW |
| Color | Standard Matte Black |
Features
1. Extra-Large Dual-Layer Platform Design
- Level 1: 2600×5900mm, Level 2: 2900×6200mm
- 4000kg per level capacity for large private vehicle parking
- Designed specifically for French luxury residential garages with large SUVs and premium vehicles
2. Container Export Design
- Equipment must fit 20GP container (inner: 5.8×2.25×2.25m)
- Split platform design for disassembled shipping and on-site assembly
- Compliant with international shipping standards, reducing logistics costs

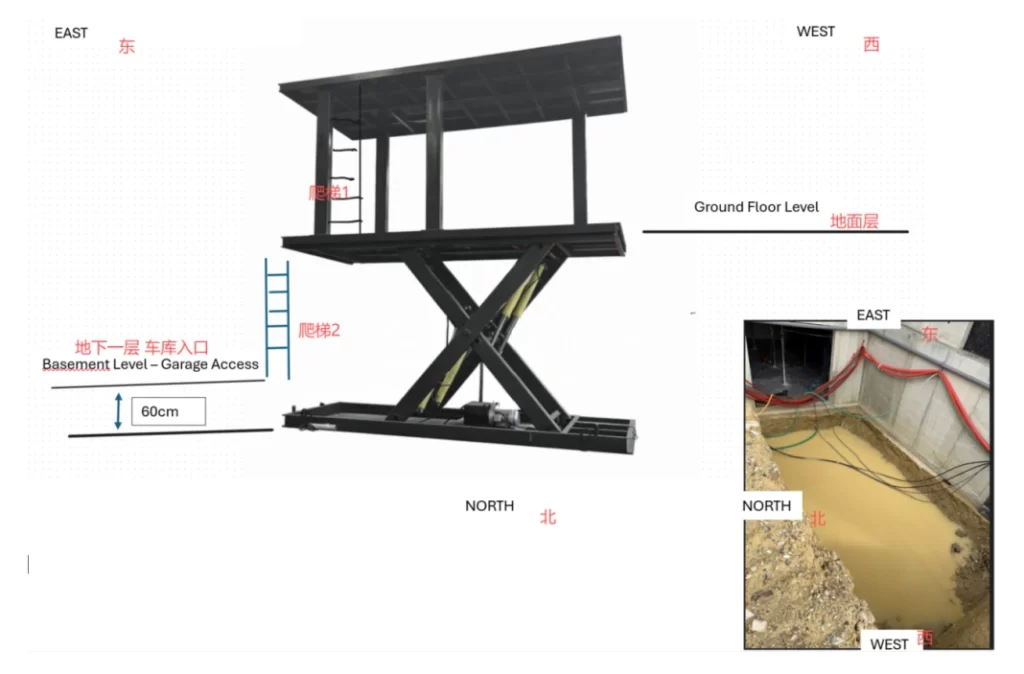

3. Custom Site Adaptation
- Left rear column offset design for optimized vehicle access flow
- 600mm pit depth with 600mm equipment height, space-saving design
- 3-meter fixed ladder on front column and wall for personnel access
4. French Standard Electrical Configuration
- 380V/50Hz three-phase standard, compatible with French industrial power

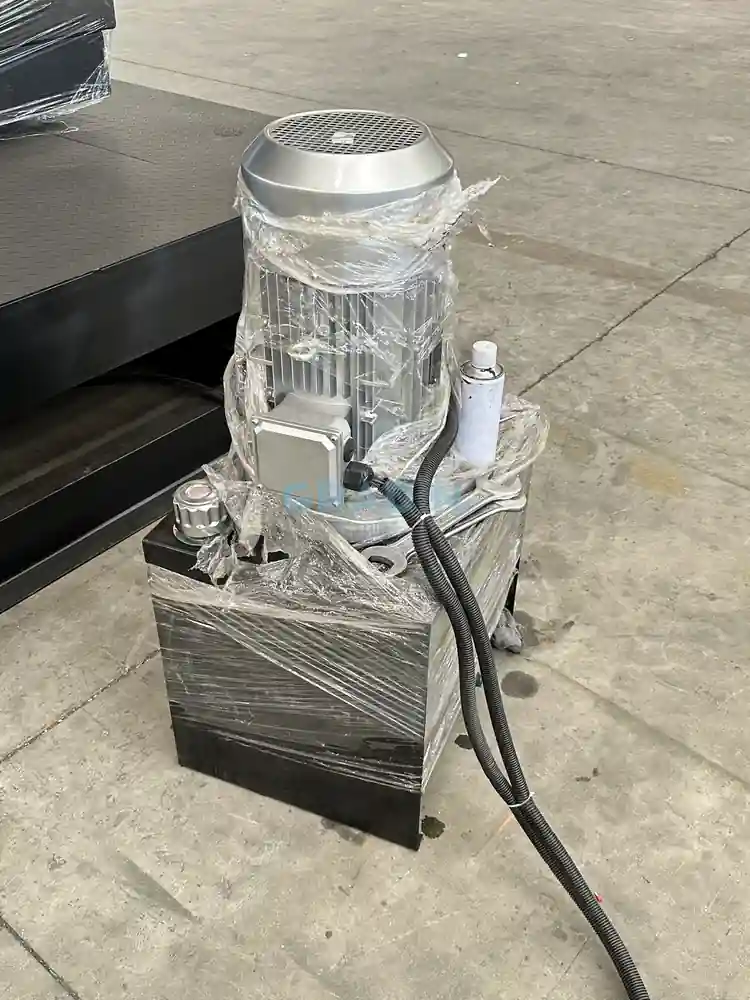

- 7.5kW pump station drive, stable and reliable

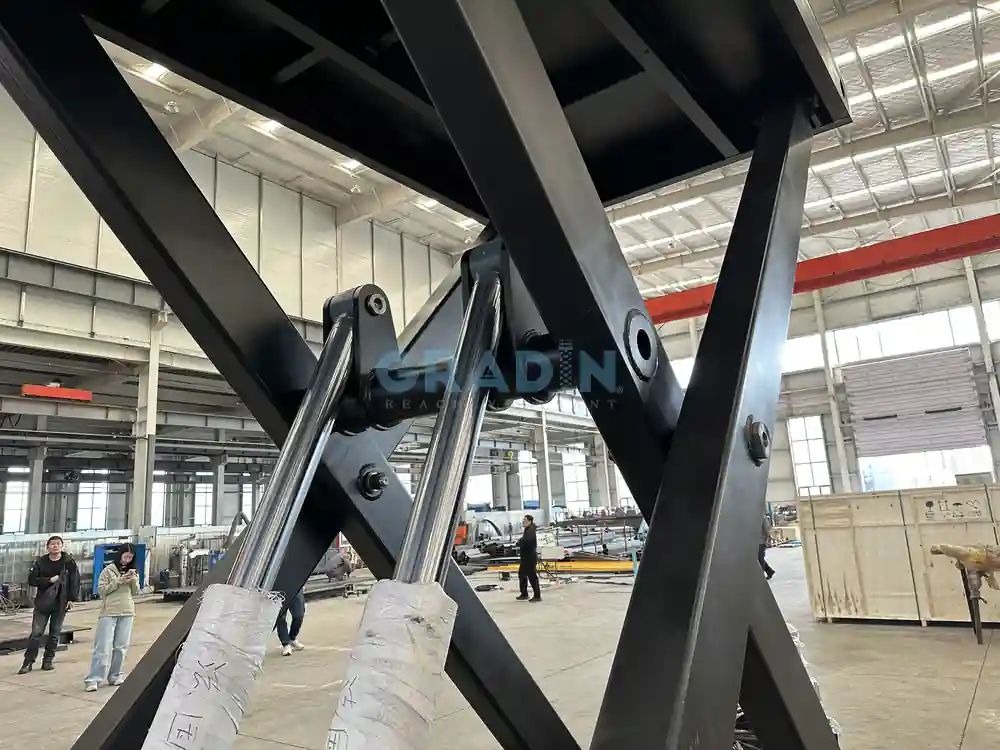

- Φ140 large-bore hydraulic cylinders ×2 with φ27 hoses for smooth heavy-load operation
5. Durable Structural Design
- J300×150×8 scissor arms ×12 sets, high-strength loading capacity
- Oil-free bearing configuration, reducing maintenance costs
- Diamond plate surface, anti-slip and durable
