12.4.2025 / 5-minute read
High-Speed Reciprocating Lift | 3-5 Floors, 1.5 m/s | Vertical Conveyor Solution
Overview
In today’s fast-paced logistics and manufacturing environments, efficiency between floors is not just an advantage—it’s a necessity.
Traditional vertical transport solutions often create bottlenecks, limiting throughput and operational agility.

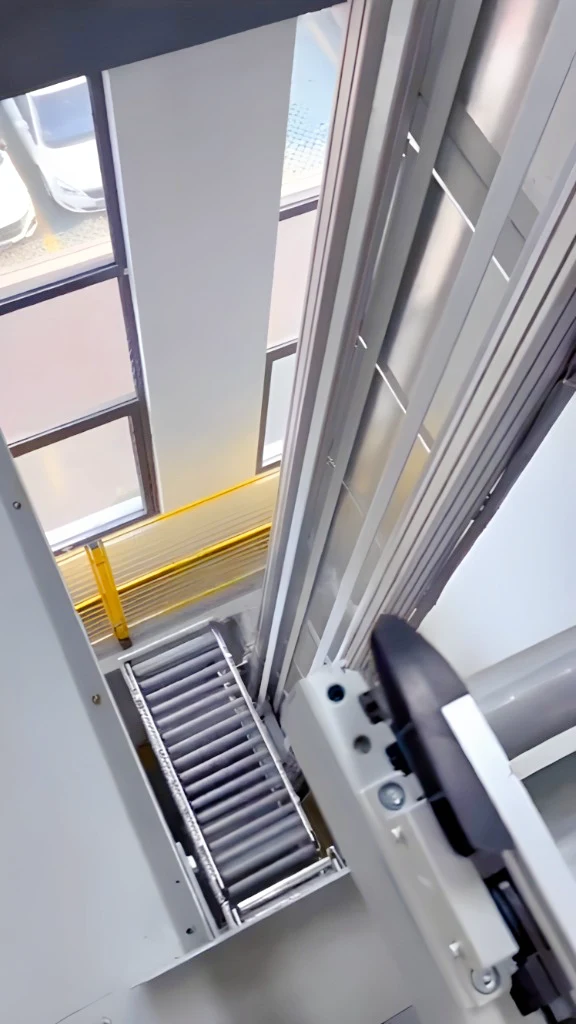

This case study explores how our advanced High-Speed Multi-Level Reciprocating Lift provides a transformative answer, specifically engineered for 3 to 5-floor applications and remarkable speeds of up to 1.5 m/s.
Basic Parameters
| Item | Specification |
|---|---|
| Model | HSR Series |
| Floors Served | 3 – 5 floors (Customizable) |
| Transport Speed | 1.5 m/s |
| Load Capacity | 50 – 2000 kg (Customizable) |
| Positioning Accuracy | ±1 mm |
| Control System | PLC + HMI, WMS/ERP Integration Ready |
| Safety Features | Light Curtains, Safety Door Locks, Overload Protection, Emergency Stop |
| Key Advantages | High-Speed, Modular Design, Space-Saving, Precision & High Efficiency |
Challenge
- Slow vertical transfer times, creating downstream delays.
- Inefficient use of vertical space and building footprint.
- Bottlenecks at lift stations, hindering continuous process flow.
- Difficulty integrating automation between different production or storage levels.
Highlights
- High-Speed Operation: Achieves a vertical travel speed of 1.5 meters per second, significantly reducing cycle time and maximizing the number of daily transfer cycles.
- Multi-Story Coverage: Efficiently serves operations across 3 to 5 floors, seamlessly connecting production, storage, and dispatch zones.

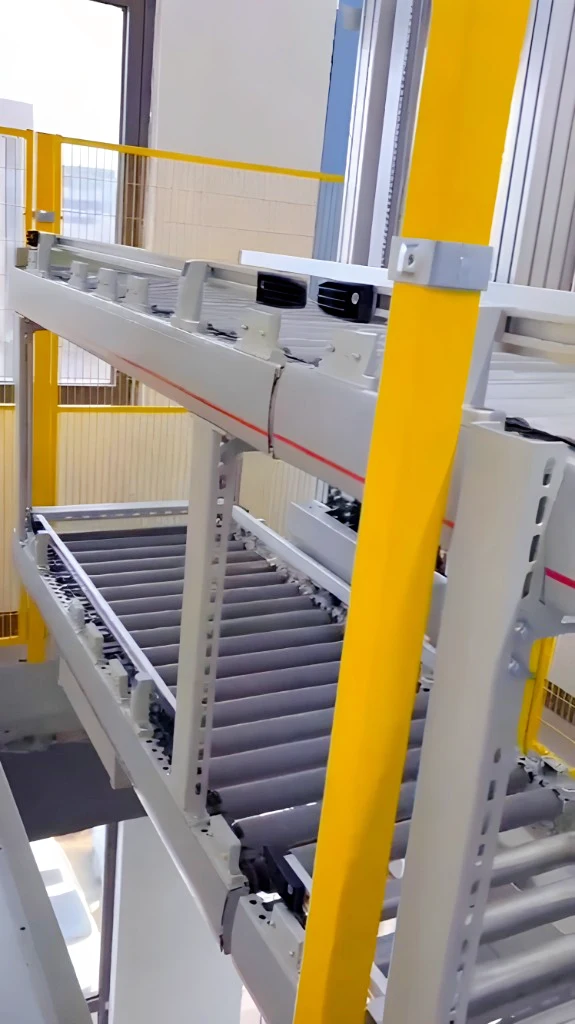

- Precision Reciprocation: Features a dual-load carrier design. While one platform is delivering a load, the other can be simultaneously loaded or unloaded, eliminating idle waiting time and enabling continuous operation.
- Integrated Control: Easily interfaces with Warehouse Management Systems (WMS) or Manufacturing Execution Systems (MES) for automated, on-demand dispatch and real-time tracking.
- Robust Design: Engineered for high-duty, 24/7 operation with built-in safety interlocks and reliable components to ensure maximum uptime and durability.
