2.13.2026 / 4-minute read

Agricultural Ton Bag Automatic VRC Lift | Pit Roller Conveyor Loading Solution

Overview

Customer Industry: Agriculture / Warehouse logistics, handling ton bags (bulk bags) on pallets moved by hand pallet trucks.

Project Background: Baiken Agriculture required an indoor vertical and horizontal transfer solution for ton bags from a ground pit (1000mm deep) to a second-floor corridor (4700mm lift height). The equipment must not span floors, occupy minimal space, and allow direct hand pallet truck operation.

Basic Parameters

Parameter	Specification
Equipment	Automatic Reciprocating VRC
Capacity	1500 kg
Lifting Speed	30 m/min
Travel Height	4700 mm
Stops	2 stops / 2 levels
Car Size (W×D×H)	1700 × 1600 × 2200 mm
Car Entry	1700 mm, through-type
Pit Size (W×L×D)	2800 × 1750 × 1000 mm
Drive Motor	Dongli 15 KW
Control	Siemens PLC + 10″ HMI, Manual/Auto
Safety	Anti-drop device, polyurethane buffers, overload alarm

In-Car Conveyor	Roller, effective 1400×1500 mm
Pit Conveyor	3-section sunken roller, 1500×2000 mm, flush type
Mezzanine Conveyor	Roller, 1500×12000 mm
Landing Door	PVC high-speed roll-up, 1750×1900 mm
Enclosure	Diamond mesh full cover

Key Requirements

Hand pallet trucks must drive into the pit for loading/unloading
Seamless connection between vertical lift and horizontal conveying
Dimension detection and out-of-limit alarm
Simple operation with manual/auto modes
Full machine protection and safety features suitable for agricultural environment

Solution

Sunken Pit Conveyor
Three‑section retractable roller conveyor (effective width 1500×length 2000mm) installed flush with pit floor; hand pallet trucks roll on directly; middle section reinforced with steel plate.

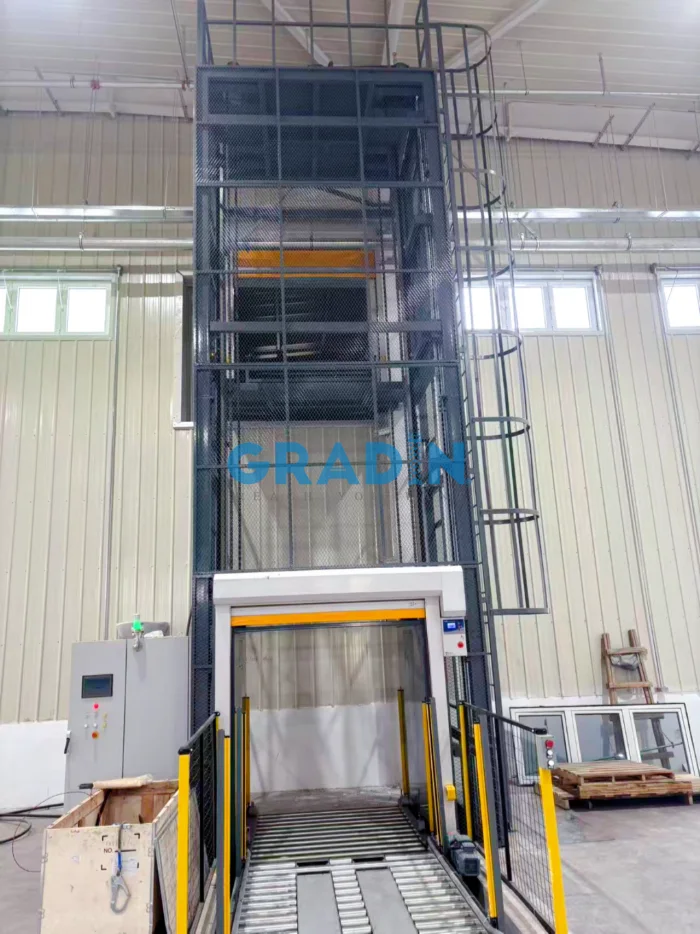

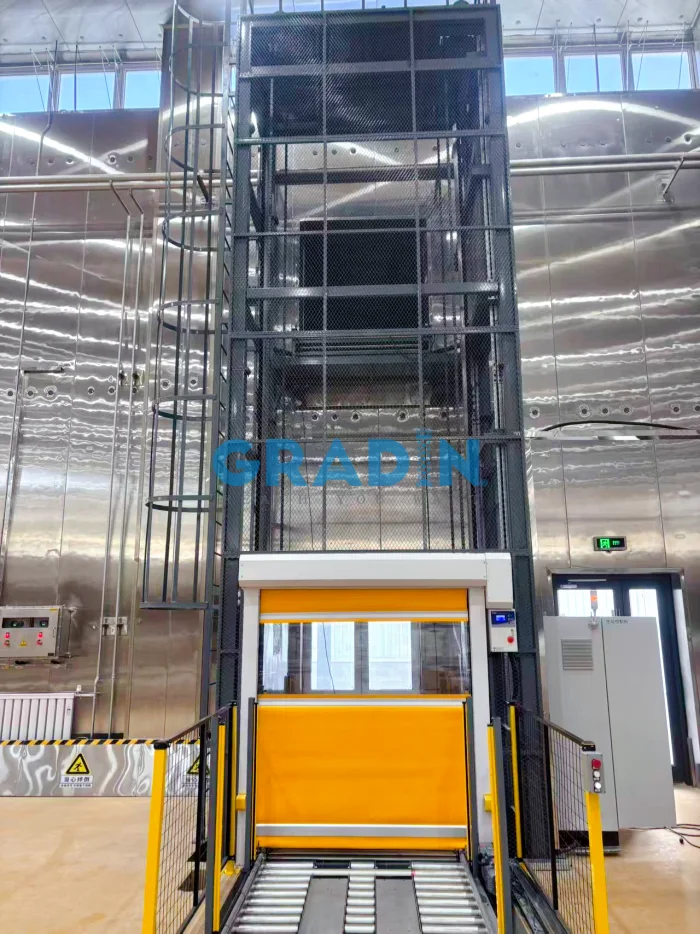

Through‑Type Car & In‑Car Conveyor
Car size 1700(W)×1600(D)mm with roll-up door at both ends, equipped with roller conveyor (effective width 1400×length 1500mm). Ton bags automatically move into position without manual pushing.
Long‑Distance Corridor Conveyor
12m roller conveyor on mezzanine, sectionally driven for stable transport deep into storage.
Intelligent Control & Safety
- Siemens Smart200 PLC + 10” Kunlun Tongtai HMI, switchable manual/auto.
- Photoelectric dimension detection, triggers alarm & tri‑color lamp when overload.

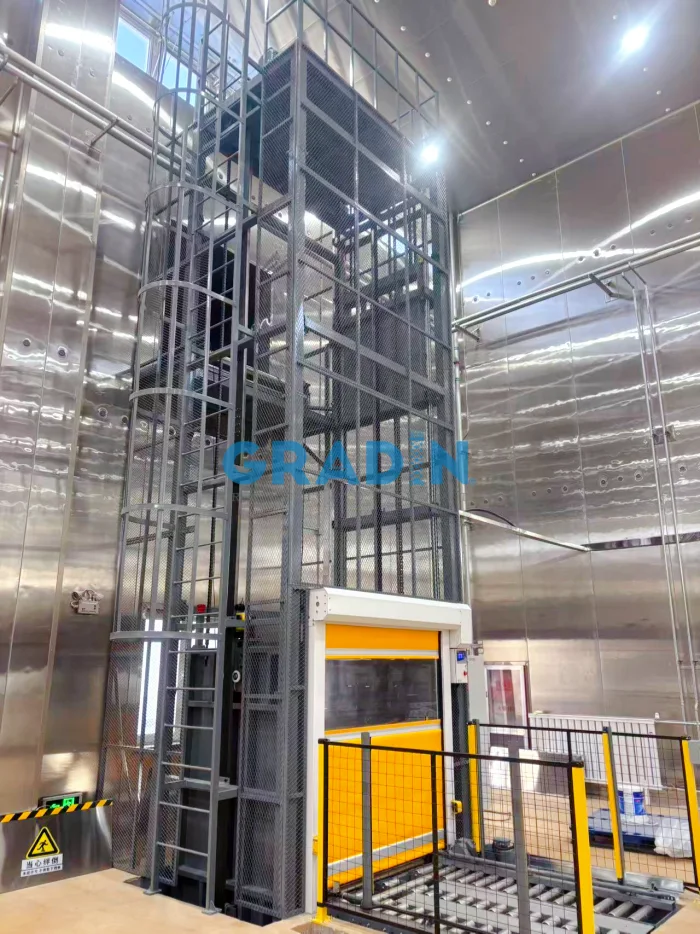

- Full safety set: T90 guide rails, safety gear, polyurethane buffers, maintenance ladder with cage, door guards.
Structural Optimization
- Main frame: 120×5mm square tube; top frame: J120×60×5mm rectangular tube – 1500kg capacity, 4700mm travel.
- Cost‑effective cast counterweight.
- PVC high‑speed roll‑up door (1750×1900mm) for layer separation.
