Explosion-Proof Vertical Lift Platform for Chemical Research Institute
Overview
Client: A leading chemical research & design institute
Contract No.: ZD-FJ2025013
Industry: Chemical Research & Process Engineering
Equipment Quantity: 1 Unit
Order Date: August 8, 2025
Delivery Date: September 8, 2025 (On-time delivery required by contract)
Basic Parameters
| Item | Specification |
|---|---|
| Platform Size | 2000 × 2000 mm |
| Overall Space Requirement | 2700 × 2100 mm |
| Travel Height | 12,600 mm |
| Rated Load Capacity | 2,000 kg |
| Stops / Landings | 2 Stops / 2 Landings |
| Material Flow | Through-type (pass-through entry and exit on the same axis) |
Challenge

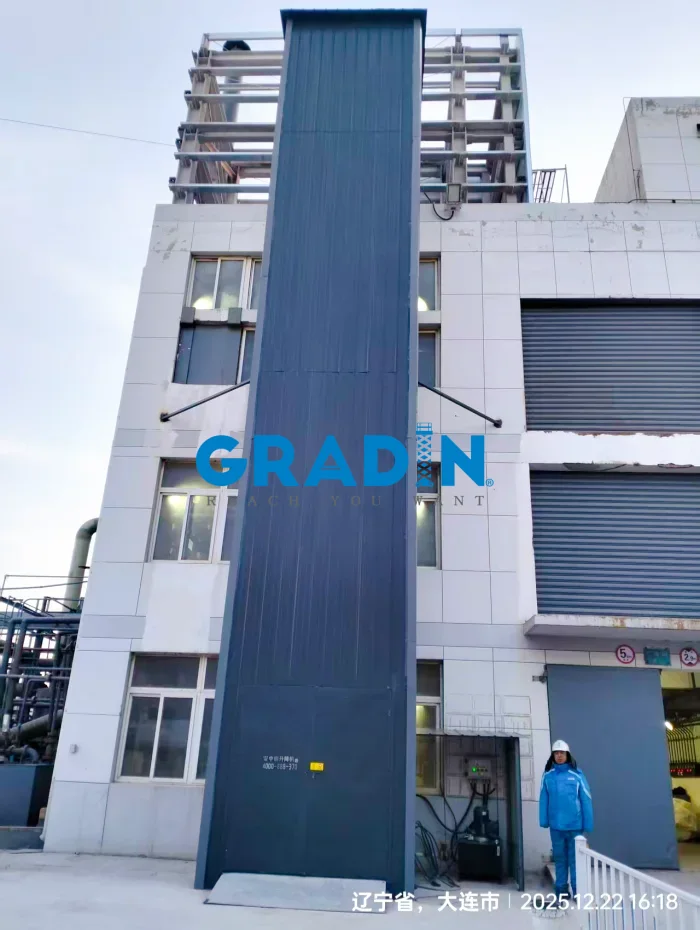

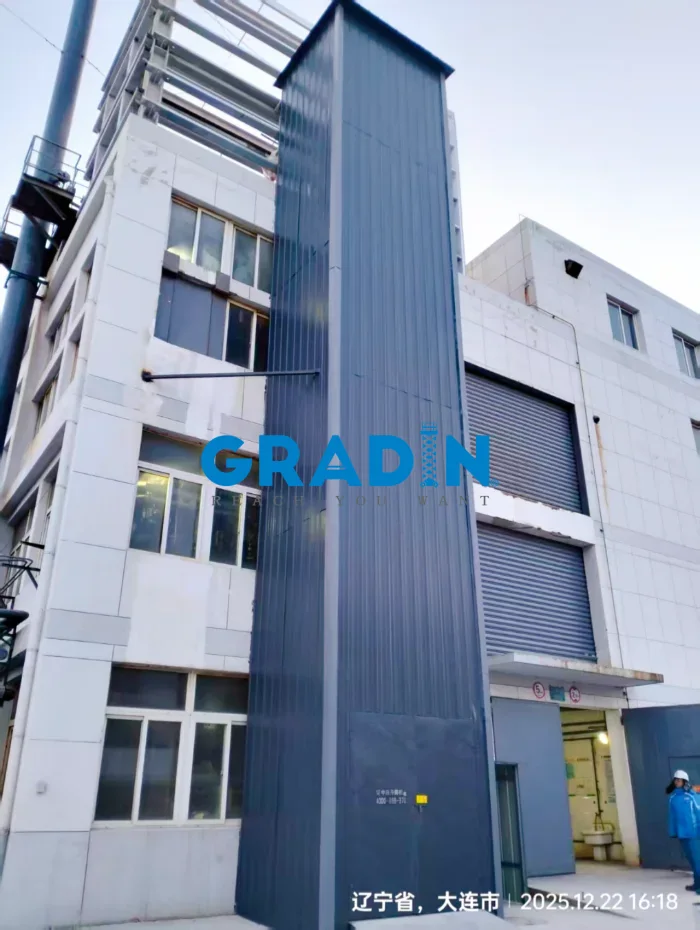

- The equipment is installed outdoors, adjacent to a building wall, and operates up to the rooftop level.
- The site is located in a chemical industrial park, requiring strict explosion-proof and safety compliance.
- No pit excavation was allowed, increasing the complexity of structural and access design.
- Large and heavy materials needed to be transported vertically across two levels, with stable and precise positioning.
- The client required a fully enclosed structure to prevent dust, weather exposure, and safety risks.
Structural & Mechanical Design

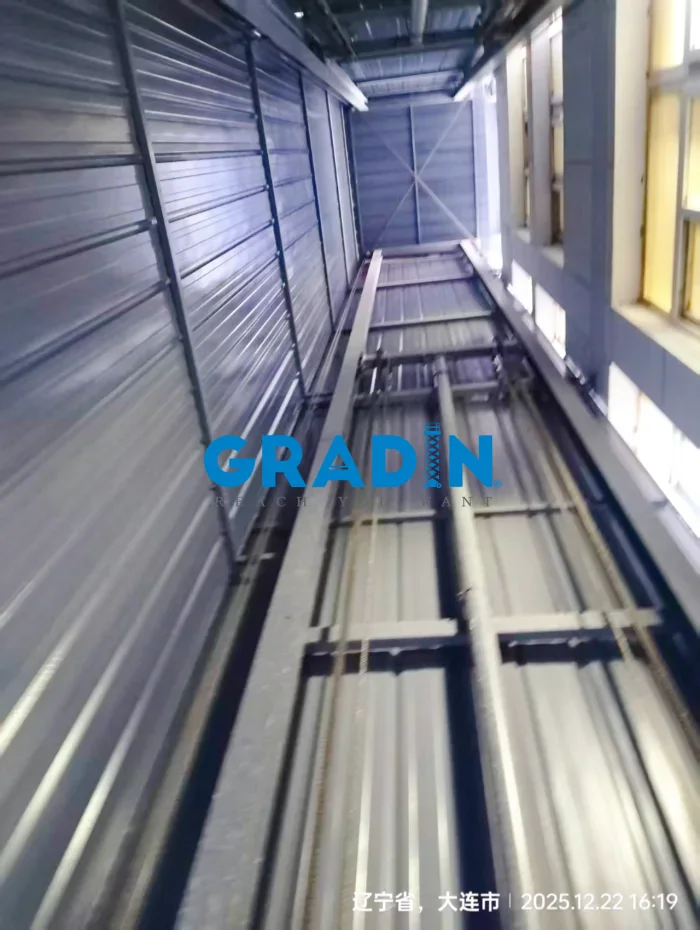

- Structure Type: 2 Hydraulic Cylinders + 4 Guide Rails
- Guide Rails: 125 × 125 H-beam, national standard steel
- Hydraulic Cylinders: Φ80 / 60 × 2
- Platform Frame: 120 × 60 × 4 mm rectangular steel tube
- Platform Deck Plate: 4 mm thick steel plate
- Pump Station: 4 kW hydraulic power unit
- Hydraulic Oil Pipe: Ø22 mm
- Chain: LH1244 × 4
- Wire Rope: Φ14 mm, 4 + 4 configuration
- Speed: Double-speed lifting system for higher efficiency
Explosion-Proof & Safety Features
- Explosion-Proof Rating: Ex d ⅡB T4
- Corrosion Protection Grade: WF1
- Explosion-Proof Components: Motor, valves, electrical system
- Hydraulic Safety:
- Explosion-proof valve
- Pressure gauge
- Oil level indicator
- Door Interlock System: Power cut-off when doors are opened
Enclosure & Access Design

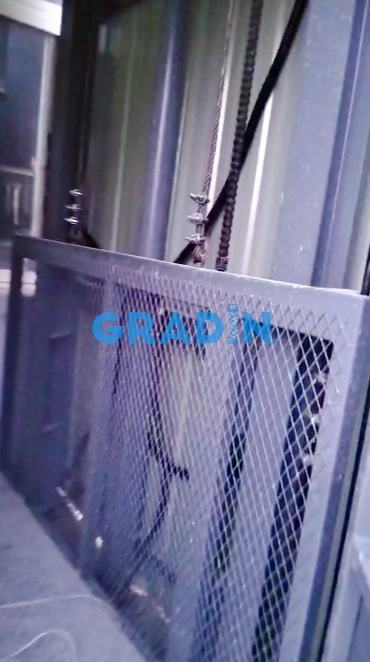

- Platform Guardrails:
- Height: 1200 mm
- Enclosed with diamond-pattern metal mesh
- Landing Doors:
- Size: 2000 × 2200 mm (W × H)
- Quantity: 2 sets
- Made of color steel plates
- Equipped with horizontal and bottom locking bolts

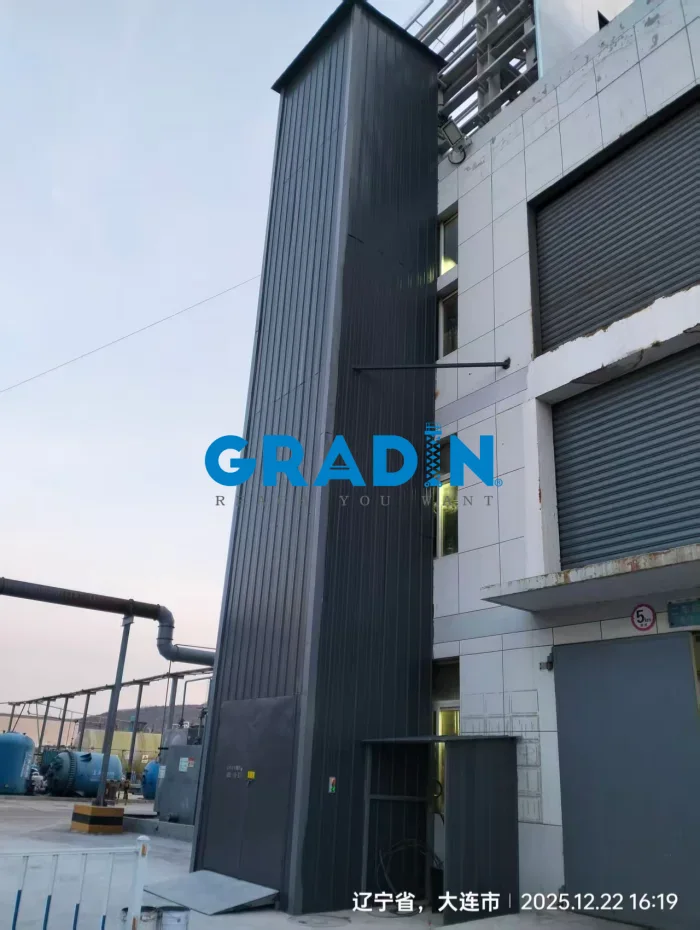

- Full External Enclosure:
- Color steel panel enclosure for the entire lift structure
- Creates a sealed and protected operating space
- Pit Requirement: None
- Ramp: A loading ramp provided on the ground floor
Installation & Logistics Advantages
- No Pit Construction: Reduces civil work cost and installation time
- Guide Rails Shipped Separately: Easy transportation and on-site assembly
- Integrated Platform & Guide Frame: Enhances alignment accuracy and lifting stability
- Outdoor Wall-Mounted Installation: Saves space and optimizes site layout
Surface Treatment & Appearance
- External Enclosure Color: Gray (Color Steel Panel)
- Main Equipment Color: Medium Gray
Project Results & Client Value
- Achieved safe and stable vertical transportation in an explosion-risk environment
- Fully complied with chemical industry explosion-proof requirements
- Delivered on time, meeting strict contractual obligations
- Reduced construction complexity with no pit design
- Improved operational efficiency through high load capacity and double-speed lifting
