Best-Selling Models
All-Terrain｜Non-Marking｜Stable on Slopes｜Auto-Leveling
Videos
Features
CAN Bus Technology: Enables efficient data transmission for seamless operation.

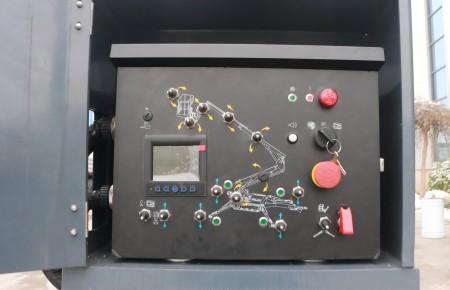

Turntable Control Box: Displays real-time status and fault diagnostics

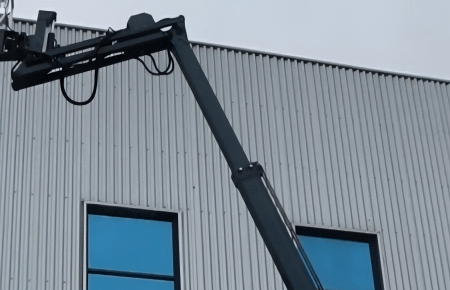

Telescopic Boom + Jib Arm: Provides greater flexibility and extended reach.

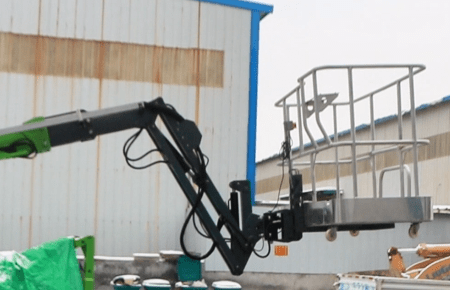

±80° Rotating High-Strength Aluminum Platform: Easily detachable for improved adaptability.

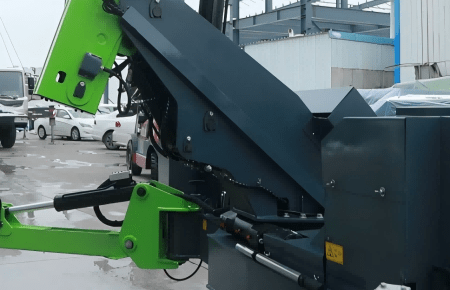

360° Rotating Turntable: Equipped with a worm gear reducer for smooth and precise rotation.

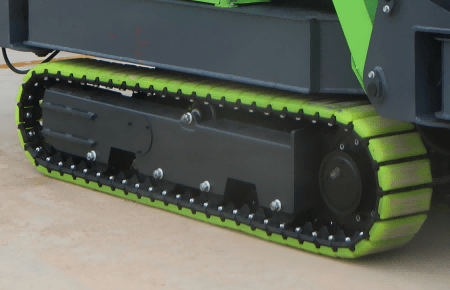

High-Durability Tracks: Enhanced wear resistance for stable movement on various terrains.

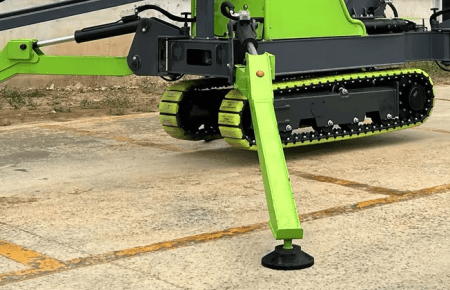

One-Touch Outrigger Leveling (Optional): Simplifies setup for quick and efficient operation.
Ultra-Narrow Chassis: Excellent maneuverability in confined spaces, maximizing the working range.
Specifications
| Specification | G-X23E | G-X17E | G-X18D | G-S16C | G-S14C | G-S12C | G-S10C | G-S08C |
|---|---|---|---|---|---|---|---|---|
| Max. Working Height | 23 m | 17.6 m | 18 m | 17.7 m | 17.7 m | 14 m | 14 m | 10 m |
| Max. Platform Height | 21 m | 15.6 m | 16 m | 15.7 m | 15.7 m | 12 m | 12 m | 8 m |
| Max. Working Radius | 9.8 m | 9.3 m | 7.2 m | 8.1 m | 8.1 m | 6.2 m | 6.2 m | 5 m |
| Platform Dimensions | 0.6×0.6×1.0m | 1.2*0.61*1.07m | 1.25*0.65m | 1.1*0.7*1.1m | 1.1*0.7*1.1m | 0.9*0.7*1.1m | 0.9*0.7*1.1m | 0.9*0.7*1.1m |
| Length (stowed) | 7.46 m | 7.8 m | 6.05 m | 5.3 m | 5.3 m | 5.3 m | 5.3 m | 4.7 m |
| Width (stowed) | 0.89 m | 1.62 m | 1.45 m | 0.85 m | 0.85 m | 0.75 m | 0.75 m | 0.75 m |
| Height (stowed) | 2.1 m | 2.1 m | 1.99 m | 2.0 m | 2.0 m | 1.9 m | 1.9 m | 1.9 m |
| Outrigger Footprint Length | – | – | 4.02 m | 4 m | 4 m | 4 m | 4 m | 4 m |
| Outrigger Footprint Width | – | – | 2.94 m | 4 m | 4 m | 2.6 m | 2.6 m | 2.6 m |
| Eff. Insulation Length (Upper Boom) | ≥1.0 m | ≥1.0 m | – | – | – | – | – | – |
| Eff. Insulation Length (Lower Boom) | ≥0.3 m | ≥0.4 m | – | – | – | – | – | – |
| Lift Capacity | 200 kg | 230 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg |
| Platform Occupancy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Jib Rotation | 45° | 45° | 45° | -90°-0 | -90°-0 | -90°-0 | -90°-0 | -90°-0 |
| Turntable Rotation | 360° | 360° | 359° | 360° | 360° | 355° | 355° | 355° |
| Drive Speed (stowed) | 2.1 km/h | 2.1 km/h | 1.5 km/h | 3 km/h | 3 km/h | 1.5 km/h | 1.5 km/h | 1.5 km/h |
| Gradeability | 30% | 30% | 30% | 25% | 25% | 25% | 25% | 25% |
| Max. Working Angle | 15° | 15° | 15° | 10° | 10° | 10° | 10° | 10° |
| Weight | 4800 kg | 3950 kg | 2380 kg | 2200 kg | 2200 kg | 1880 kg | 1880 kg | 1720 kg |
