9.26.2025 / 5-minute read

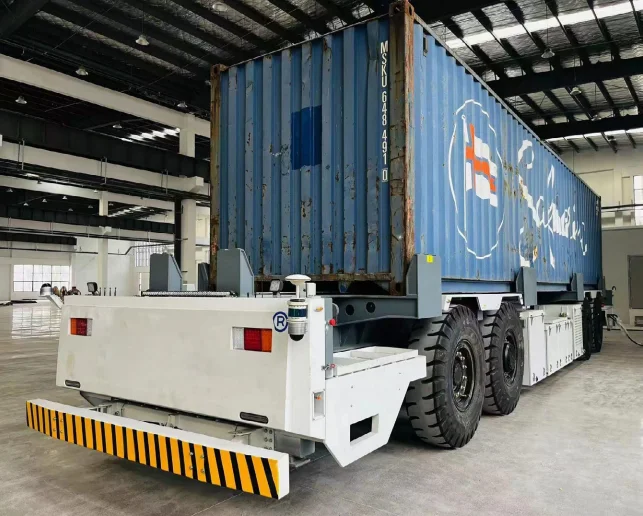

Transporteur autonome de conteneurs - 4 essieux 70 tonnes
Vue d'ensemble
This case analysis introduces the 8×4 symmetrical wire-controlled chassis flatbed vehicle, designed to meet the demands for heavy-load, high-adaptability transport equipment in modern logistics.
With 450mm maximum ground clearance and 70-ton rated load capacity, it effectively solves the industry challenge of heavy container transportation on unpaved roads, providing revolutionary solutions for ports, mines, and large construction sites.
Paramètres de base
| Paramètres | Spécifications |
|---|---|
| Charge nominale | ≥70 tons |
| Curb Weight | ≤20 tons (including battery) |
| Power Configuration | Dual permanent magnet synchronous motors (single ≥135kW) |
| Battery Capacity | ≥282kWh |
| Range | ≥100km (SOC 95%-20%) |
| Max Speed | ≥30km/h loaded, ≥35km/h unloaded |
| Min Turning Radius | ≤8.5m |
| Max Gradeability | ≥10% (fully loaded continuous) |
Comment ça marche
The vehicle features all-wheel steering with electro-hydraulic control system, achieving precise manipulation through wire-controlled technology.
The dual permanent magnet synchronous motor drive system delivers powerful performance, combined with European heavy-duty suspension and mining-grade axles to ensure stable operation under 70-ton loads.
An intelligent management system monitors tire pressure, battery status, and vehicle parameters in real-time, supporting multiple modes including bidirectional travel and figure-eight steering.
Les défis
- Mobility Challenges: Traditional equipment cannot handle complex unpaved roads
- Load Limitations: Conventional flatbeds struggle with 70-ton container transport
- Control Precision: Heavy loads require more accurate steering and braking control
- Environmental Requirements: Large transport equipment must meet strict emission standards
Solutions
- Innovative Chassis Design
- 8×4 symmetrical structure optimizes load distribution
- 450mm ground clearance ensures passage through difficult terrain
- Intelligent Drive System
- Dual permanent magnet motors deliver superior power
- Electro-hydraulic steering enables precise control
- Multi-layer Safety Assurance
- Ventilated disc hydraulic braking system
- Active parking control emergency system
- Real-time tire pressure monitoring
- Green Power Solution
- 282kWh lithium iron phosphate battery pack
- Supports automatic charging/battery swapping
