GTK-10 10m Simple Articulated Boom Lift
10m｜230kg｜Lightweight｜Detachable｜Cost-effective
It can work over obstacles in high places, and when the platform is lifted to any position, it can work while walking.
Compact structure, flexible steering. Alternate power unit, operable work platform reset, convenient transportation.
GTK-10 10m Simple Articulated Boom Lift
Models & Specs
| Model | GTK-10 |
| Power form | Diesel |
| Overall Dimension (mm) | 3800 × 1800 × 2600 |
| Working platform size (L×W×H) (m) | 1.0 × 0.7 × 1.1 |
| Weight (T) | 1.8 |
| Rotation | 360° |
| Maximum working radius (m) | 3.2 |
| Brake configuration | Oil Brake |
| Outrigger form | Frog |
| Load (kg) | 230 |
| Disassembly size (mm) | Chassis: 3500×1800×1500 |
| Boom: 3800×800×1770 | |
| Travelling speed (km/h) | 16–32 |
| Frame rectangular tube (mm) | 100×200×5 |
| Arm rectangular tube (mm) | 120×140×5 |
| Upper balance arm rectangular tube (mm) | 50×70×3 |
| Lower balance arm rectangular tube(mm) | 40×60×3 |
| Outrigger spread (m) | 3.6 |
| Model | GTK-14 | GTK-12 | GTK-10 |
| Power form | Diesel | Diesel | Diesel |
| Overall Dimension (mm) | 5200 × 1800 × 3050 | 3800 × 1800 × 3050 | 3800 × 1800 × 2600 |
| Working platform size (L×W×H) (m) | 1.0 × 0.7 × 1.1 | 1.0 × 0.7 × 1.1 | 1.0 × 0.7 × 1.1 |
| Weight (T) | 2 | 1.9 | 1.8 |
| Rotation | 360° | 360° | 360° |
| Maximum working radius (m) | 4.2 | 3.45 | 3.2 |
| Brake configuration | Oil Brake | Oil Brake | Oil Brake |
| Outrigger form | Frog | Frog | Frog |
| Load (kg) | 200 | 230 | 230 |
| Disassembly size (mm) – Chassis | 4500×1800×1500 | 3500×1800×1500 | 3500×1800×1500 |
| Disassembly size (mm) – Boom | 5200×800×2270 | 3800×800×2270 | 3800×800×1770 |
| Travelling speed (km/h) | 16–32 | 16–32 | 16–32 |
| Frame Rectangular Tube (mm) | 100×200×5 | 100×200×5 | 100×200×5 |
| Arm Rectangular Tube (mm) | 120×140×5 | 120×140×5 | 120×140×5 |
| Upper balance arm rectangular tube (mm) | 50×70×3 | 50×70×3 | 50×70×3 |
| Lower balance arm rectangular tube (mm) | 40×60×3 | 40×60×3 | 40×60×3 |
| Outrigger spread (m) | 3.6 | 3.6 | 3.6 |
Features

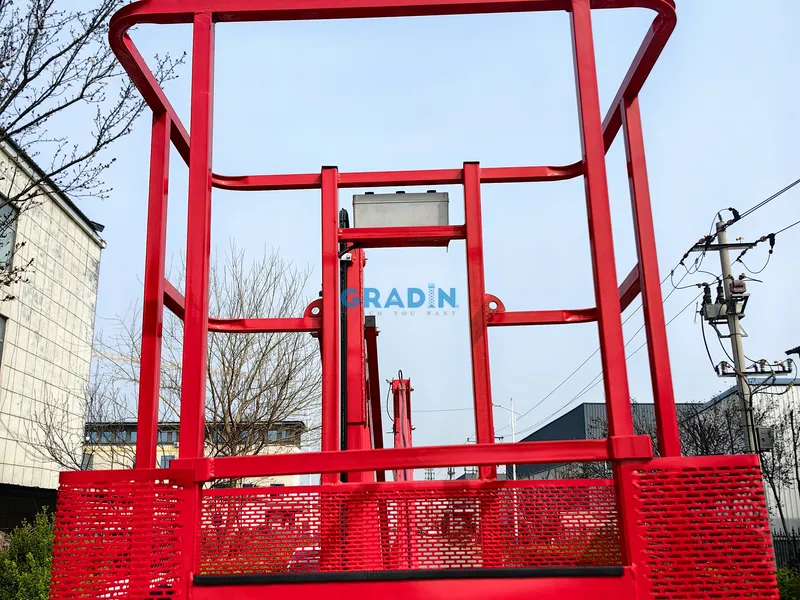

Work Platform

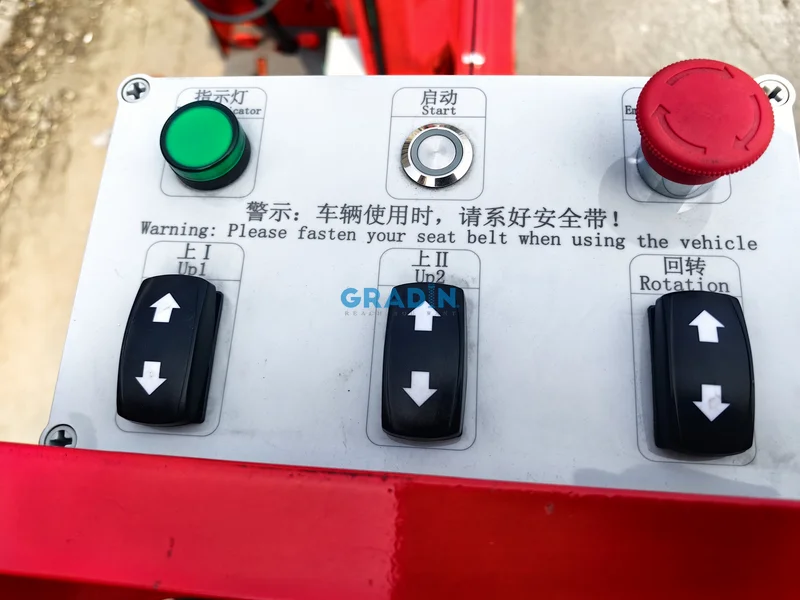

Upper control panel

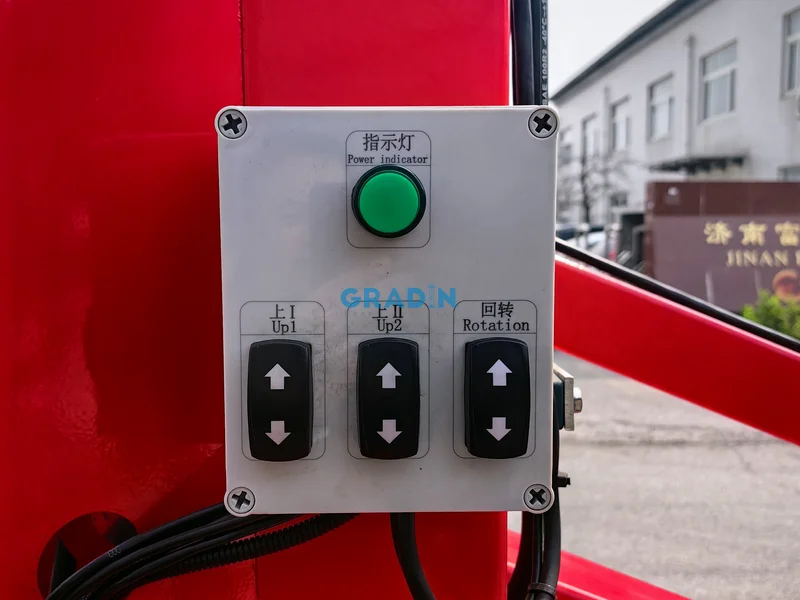

Ground Control Panel

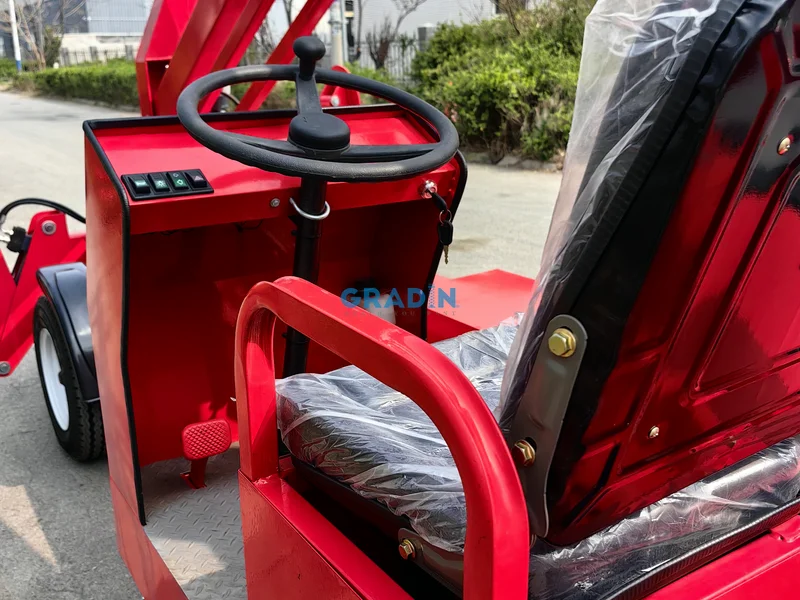

Drive Station

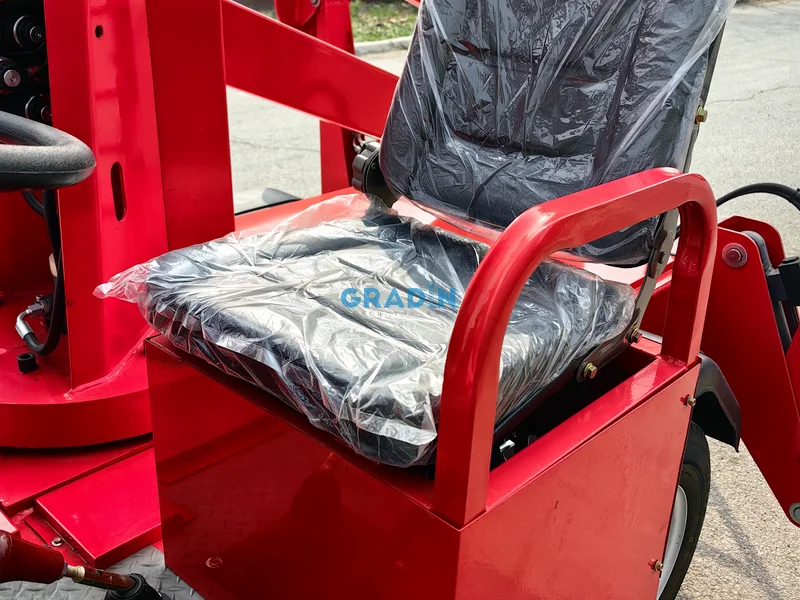

Driver’s seat

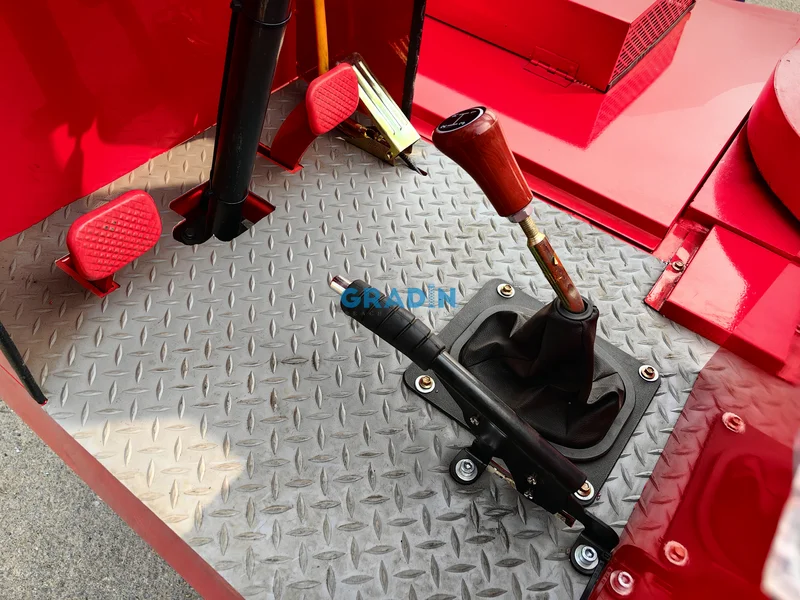

Pedal Area

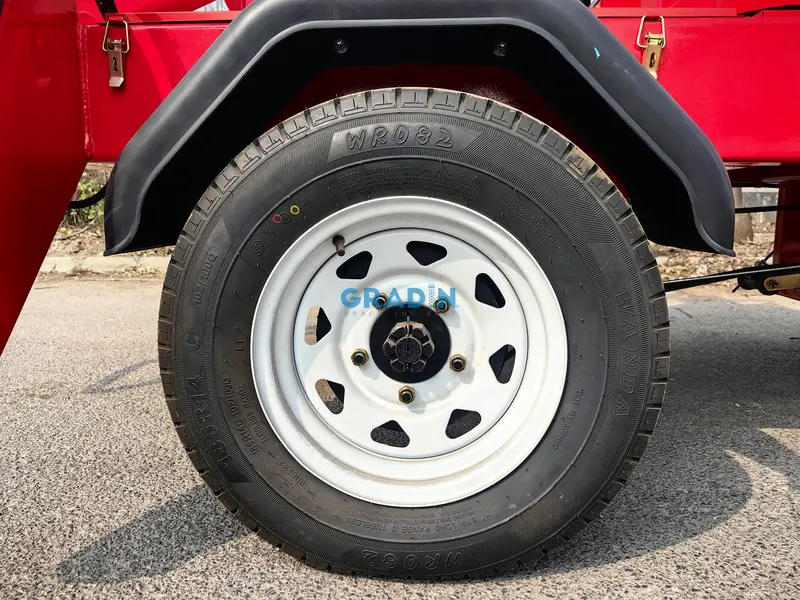

Tire

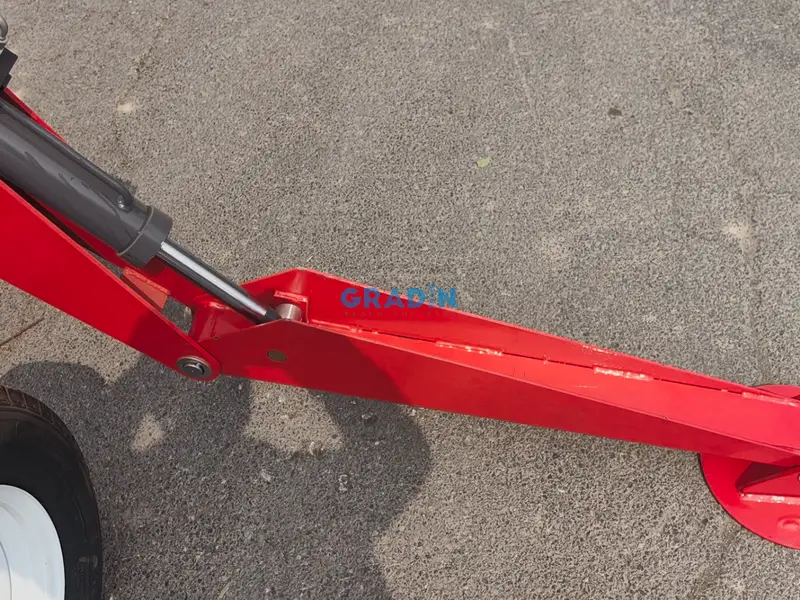

Outriggers
Boom Cylinder

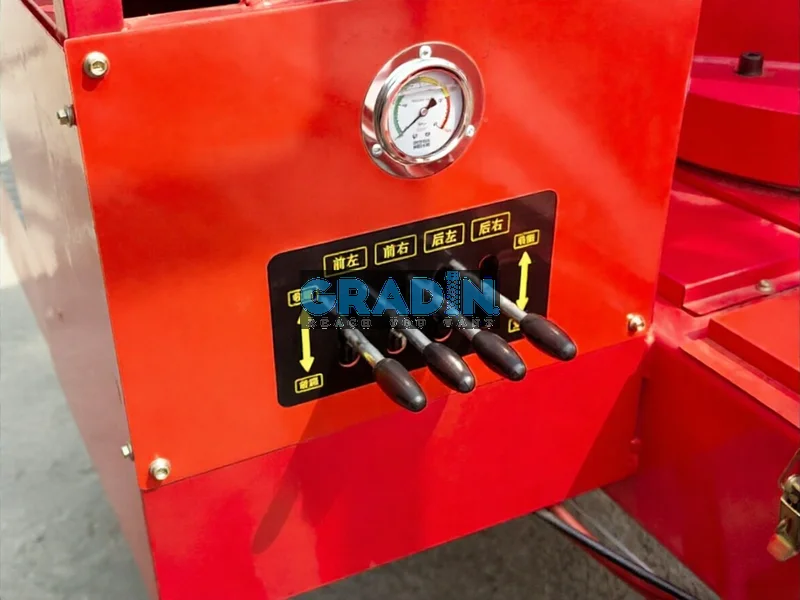

Outrigger Control Levers

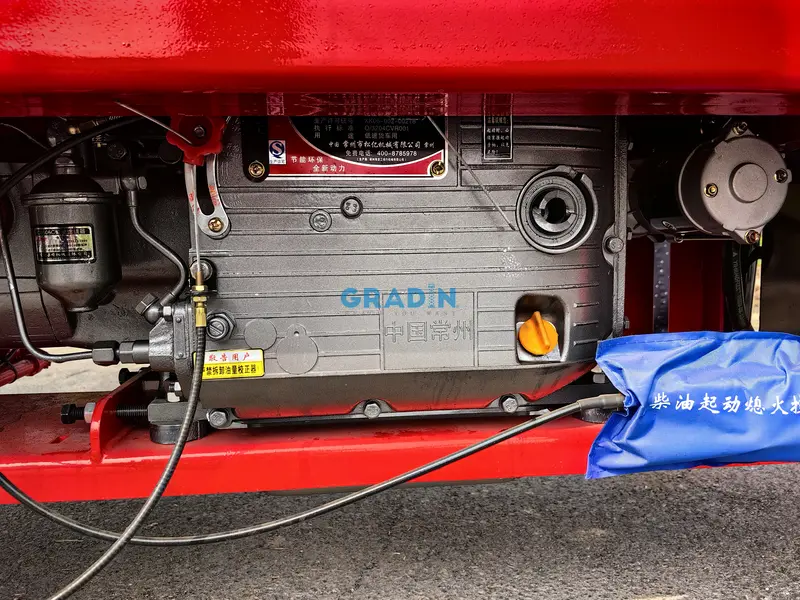

Diesel Engine

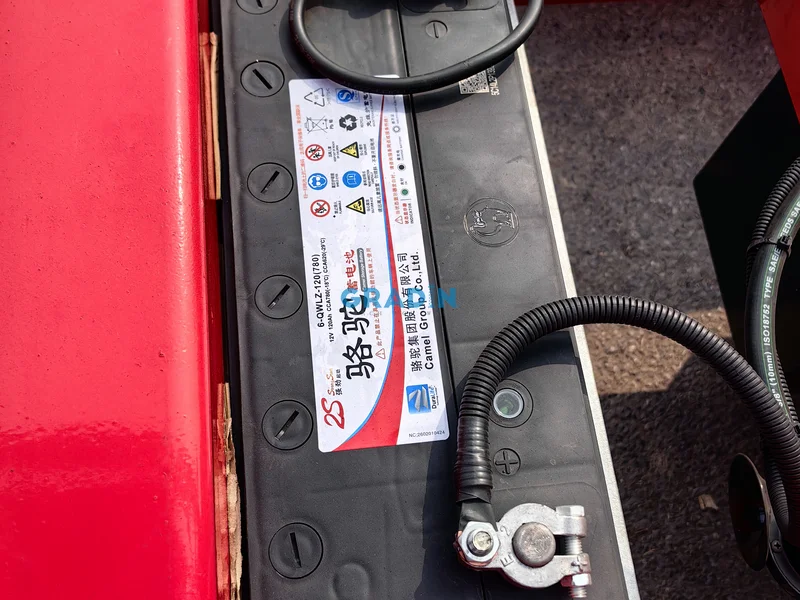

Battery

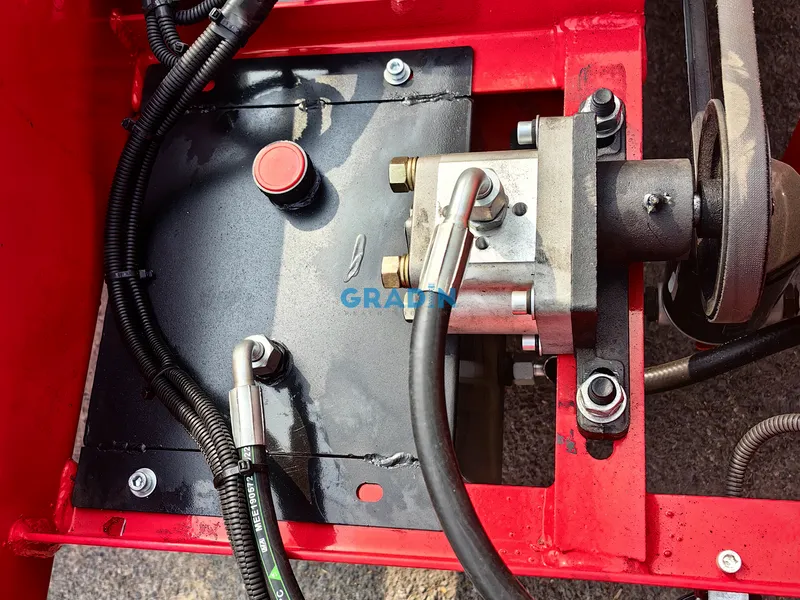

Hydraulic oil tank

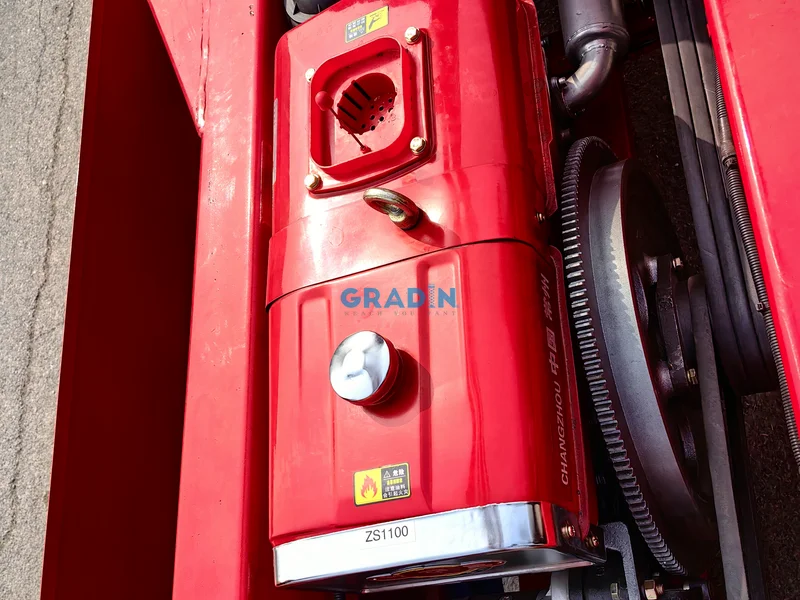

Fuel Tank

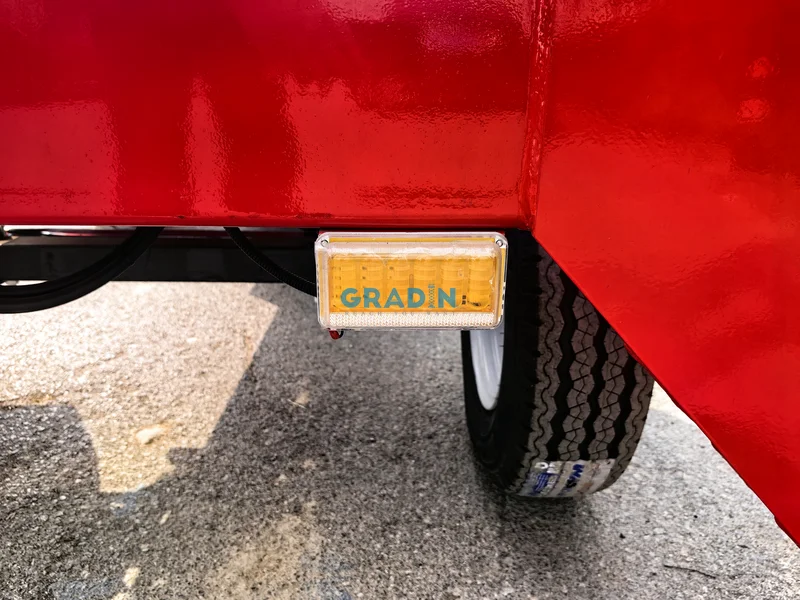

Beacon Light

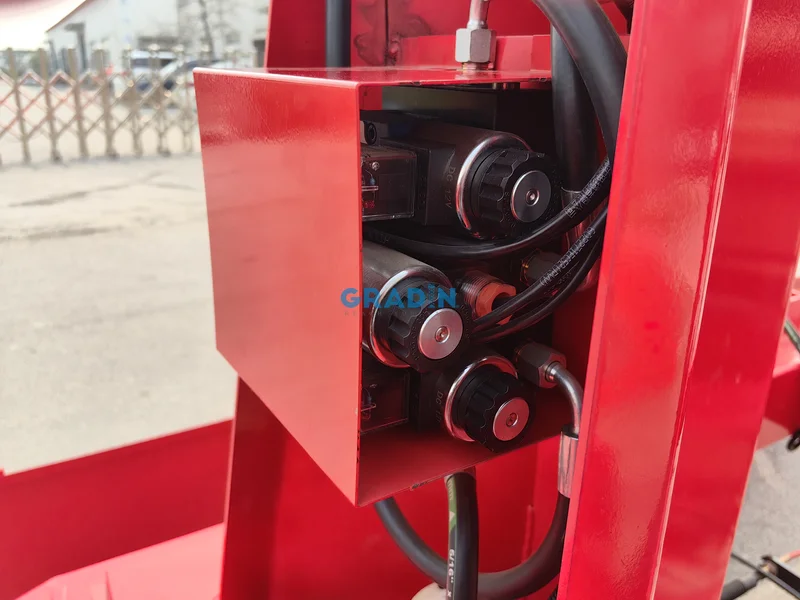

Hydraulic Cylinder Bank
Videos

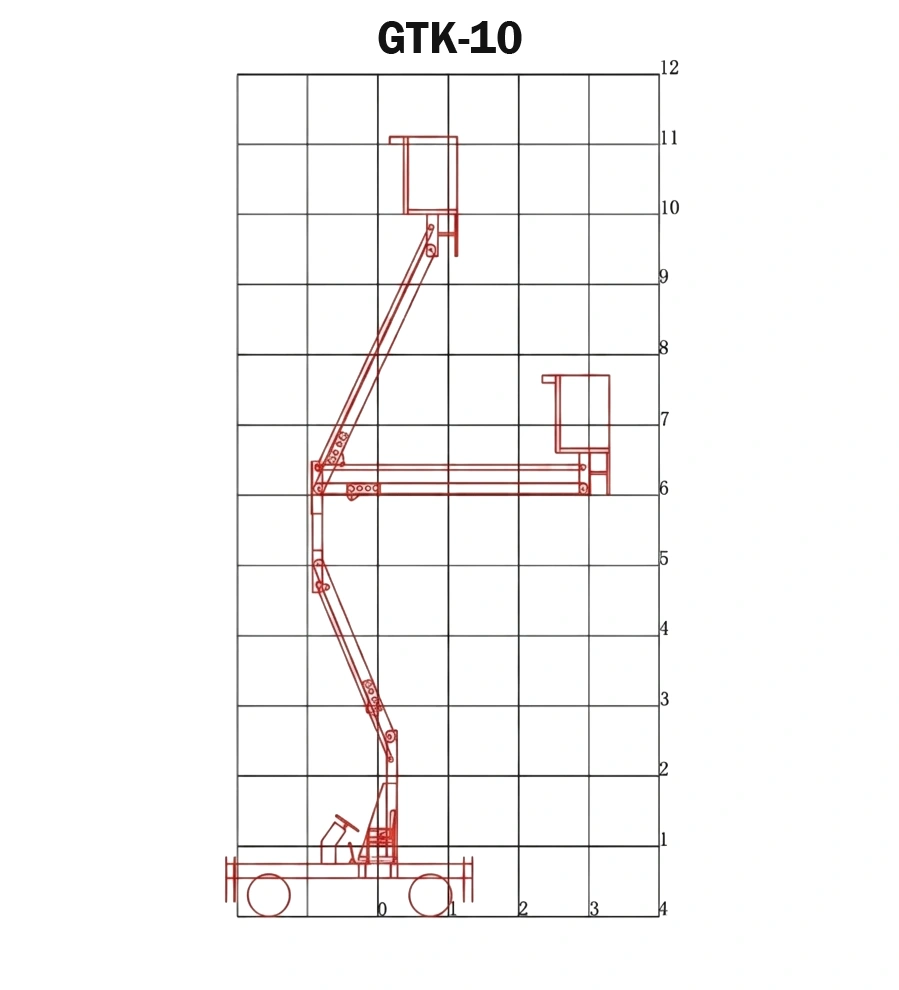

Dimensional Drawing
After-sales service
Structural components are covered by a 1-year warranty, while other components have a 1-year warranty.
The battery is covered by a 1-year warranty (excluding damage caused by human factors, which are eligible for free replacement).
