G-QZX-6
Self-propelled scissor lift is a kind of efficient lifting equipment widely used in various industrial and commercial environments.
It is flexible, convenient and fast, and can replace scaffolding to reach the required height, making it an ideal choice for handling, installation, maintenance and aerial work.
Capacity: 450kg
Distance: 6m
Width: 2430mm
Length: 1210mm
G-QZX-6
Models & Specs
| Parameter | G-QZX-6 |
|---|---|
| Model | G-QZX-6 |
| Safe Working Load | 450 kg |
| Extended Platform Safe Working Load | 113 kg |
| Maximum number of person | 4 |
| Maximum Working Height (A) | 8 m |
| Maximum Platform Height (B) | 6 m |
| Overall Machine Length (C) | 2.43 m |
| Overall Machine Width (D) | 1.21 m |
| Overall Machine Height (Fence Not Folded) | 2.22 m |
| Overall Machine Height (Fence Folded) (E) | 1.67 m |
| Working Platform Size (length x width (F)) | 2.27*1.12 m |
| Platform Extension Size (G) | 0.9 m |
| Machine Running Speed (Folded State) | 3.5 km/h |
| Machine running Speed (Lifting State) | 0.8 km/h |
| Rising/Falling speed | 100/80 sec |
| Storage battery | 4×6/200 V/Ah |
| Maximum climbing ability | 25% |
| Machine weight | 2250 kg |
| Parameter | G-QZX-06 | G-QZX-6 | G-QZX-08 | G-QZX-8 | G-QZX-10 | G-QZX-12 | G-QZX-14 |
|---|---|---|---|---|---|---|---|
| Safe Working Load | 230 kg | 450 kg | 320 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Extended Platform Safe Working Load | 110 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 110 kg |
| Maximum number of person | 2 | 4 | 4 | 4 | 3 | 3 | 2 |
| Maximum Working Height (A) | 8 m | 8 m | 10 m | 10 m | 12 m | 13.8 m | 15.8 m |
| Maximum Platform Height (B) | 6 m | 6 m | 8 m | 8 m | 10 m | 11.8 m | 13.8 m |
| Overall Machine Length (C) | 1.85 m | 2.43 m | 2.43 m | 2.43 m | 2.43 m | 2.43 m | 2.85 m |
| Overall Machine Width (D) | 0.79 m | 1.21 m | 0.89 m | 1.21 m | 1.21 m | 1.21 m | 1.31 m |
| Overall Machine Height (Fence Not Folded) | 2.2 m | 2.22 m | 2.35 m | 2.35 m | 2.47 m | 2.6 m | 2.62 m |
| Overall Machine Height (Fence Folded) (E) | 1.68 m | 1.67 m | 1.8 m | 1.8 m | 1.93 m | 2.06 m | 2.06 m |
| Working Platform Size (length x width (F)) | 1.68*0.74 m | 2.27*1.12 m | 2.27*0.86 m | 2.27*1.12 m | 2.27*1.12 m | 2.27*1.12 m | 2.7*1.11 m |
| Platform Extension Size (G) | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Machine Running Speed (Folded State) | 3.8 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Machine running Speed (Lifting State) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Rising/Falling speed | 100/80 sec | 100/80 sec | 100/80 sec | 100/80 sec | 100/80 sec | 100/80 sec | 100/80 sec |
| Storage battery | 4×6/200 V/Ah | 4×6/200 V/Ah | 4×6/200 V/Ah | 4×6/200 V/Ah | 4×6/200 V/Ah | 4×6/200 V/Ah | 4×6/240 V/Ah |
| Maximum climbing ability | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Machine weight | 1430 kg | 2250 kg | 2260 kg | 2350 kg | 2550 kg | 2980 kg | 3670 kg |
Features
Scissor Mechanism
Movable Control Switch
Battery
Joystick
Hydraulic Cylinder
Hydraulic Hose
Tilt Sensor
Tire
Work Light
Forklift Pockets
Videos

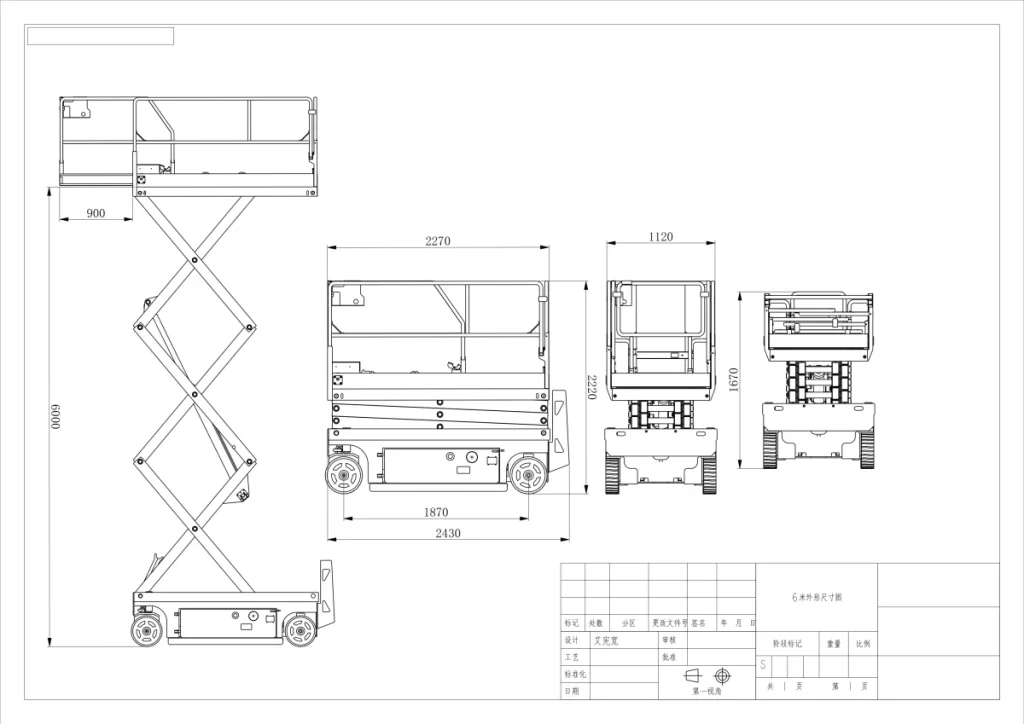

Dimension Drawing
