G-QZX-10

Self-propelled scissor lift is a kind of efficient lifting equipment widely used in various industrial and commercial environments.

It is flexible, convenient and fast, and can replace scaffolding to reach the required height, making it an ideal choice for handling, installation, maintenance and aerial work.

Capacity: 320kg

Distance: 10m

Width: 2430mm

Length: 1210mm

REQUEST A QUOTE

Models & Specs

G-QZX-10

Models & Specs

Parameter	G-QZX-10
Safe Working Load	320 kg
Extended Platform Safe Working Load	113 kg
Maximum Number of Persons	3

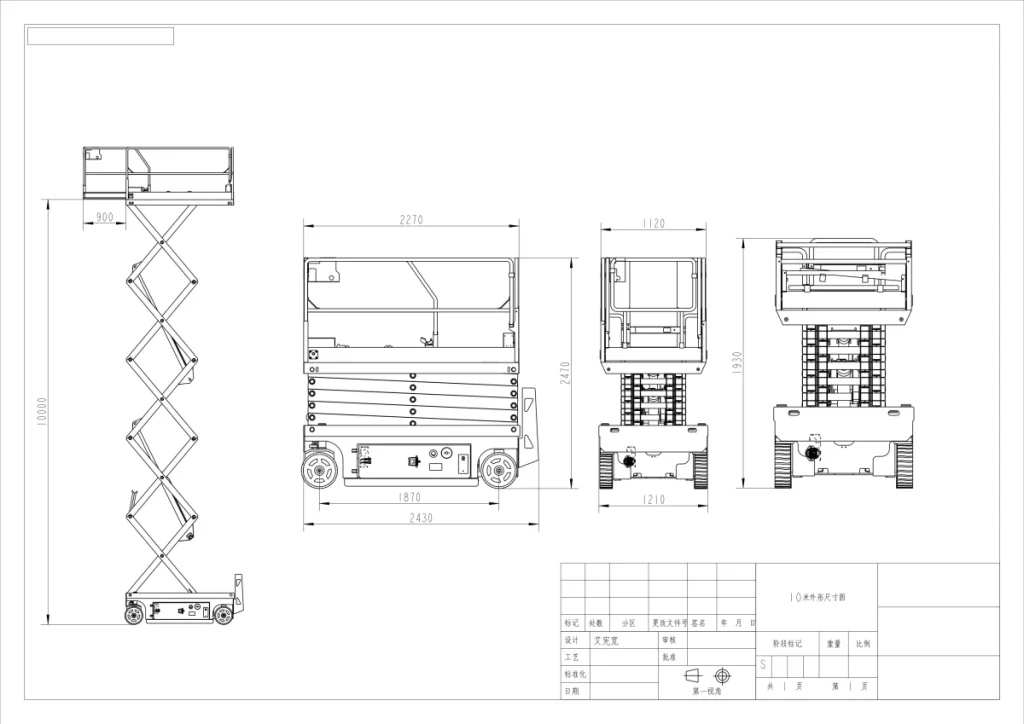

Maximum Working Height (A)	12 m
Maximum Platform Height (B)	10 m
Overall Machine Length (C)	2.43 m
Overall Machine Width (D)	1.21 m
Overall Machine Height (Fence Not Folded)	2.47 m
Overall Machine Height (Fence Folded) (E)	1.93 m
Working Platform Size (L × W) (F)	2.27 × 1.12 m
Platform Extension Size (G)	0.9 m
Machine Running Speed (Folded)	3.5 km/h
Machine Running Speed (Lifted)	0.8 km/h
Rising / Falling Speed	100 / 80 sec
Storage Battery	4 × 6V / 200Ah
Maximum Climbing Ability	25%
Machine Weight	2550 kg

Parameter	G-QZX-06	G-QZX-6	G-QZX-08	G-QZX-8	G-QZX-10	G-QZX-12	G-QZX-14
Safe Working Load	230 kg	450 kg	320 kg	450 kg	320 kg	320 kg	230 kg
Extended Platform Safe Working Load	110 kg	113 kg	113 kg	113 kg	113 kg	113 kg	110 kg
Maximum number of person	2	4	4	4	3	3	2
Maximum Working Height (A)	8 m	8 m	10 m	10 m	12 m	13.8 m	15.8 m
Maximum Platform Height (B)	6 m	6 m	8 m	8 m	10 m	11.8 m	13.8 m
Overall Machine Length (C)	1.85 m	2.43 m	2.43 m	2.43 m	2.43 m	2.43 m	2.85 m
Overall Machine Width (D)	0.79 m	1.21 m	0.89 m	1.21 m	1.21 m	1.21 m	1.31 m
Overall Machine Height (Fence Not Folded)	2.2 m	2.22 m	2.35 m	2.35 m	2.47 m	2.6 m	2.62 m
Overall Machine Height (Fence Folded) (E)	1.68 m	1.67 m	1.8 m	1.8 m	1.93 m	2.06 m	2.06 m
Working Platform Size (length x width (F))	1.68*0.74 m	2.27*1.12 m	2.27*0.86 m	2.27*1.12 m	2.27*1.12 m	2.27*1.12 m	2.7*1.11 m
Platform Extension Size (G)	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m
Machine Running Speed (Folded State)	3.8 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h
Machine running Speed (Lifting State)	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h
Rising/Falling speed	100/80 sec	100/80 sec	100/80 sec	100/80 sec	100/80 sec	100/80 sec	100/80 sec
Storage battery	4×6/200 V/Ah	4×6/200 V/Ah	4×6/200 V/Ah	4×6/200 V/Ah	4×6/200 V/Ah	4×6/200 V/Ah	4×6/240 V/Ah
Maximum climbing ability	25%	25%	25%	25%	25%	25%	25%
Machine weight	1430 kg	2250 kg	2260 kg	2350 kg	2550 kg	2980 kg	3670 kg

Standard Configuration

Proportional Control	Automatic Braking System
Automatic Pothole Protection System	Emergency Descent System
Platform Self-locking Door	Emergency Stop Button
Full Travel Travel	Oil Pipe Explosion-proof System
Non-marking Tires	Fault Diagnosis System
4×2 Drive	Tilt Protection System
Buzzer	Extended Platform
Trumpet	Charging Protection System
Work Schedule	Strobe Light
Safety Maintenance Support Rod	Imported Valve Core
Standard Transport Forklift Holes	Maintenance Free Battery
Folding Fence	Three-year Warranty for Structural Components
