9.15.2025 / 6-minute read
1700kg L-Groove Turning Platform for Italian Coil Processing
Overview

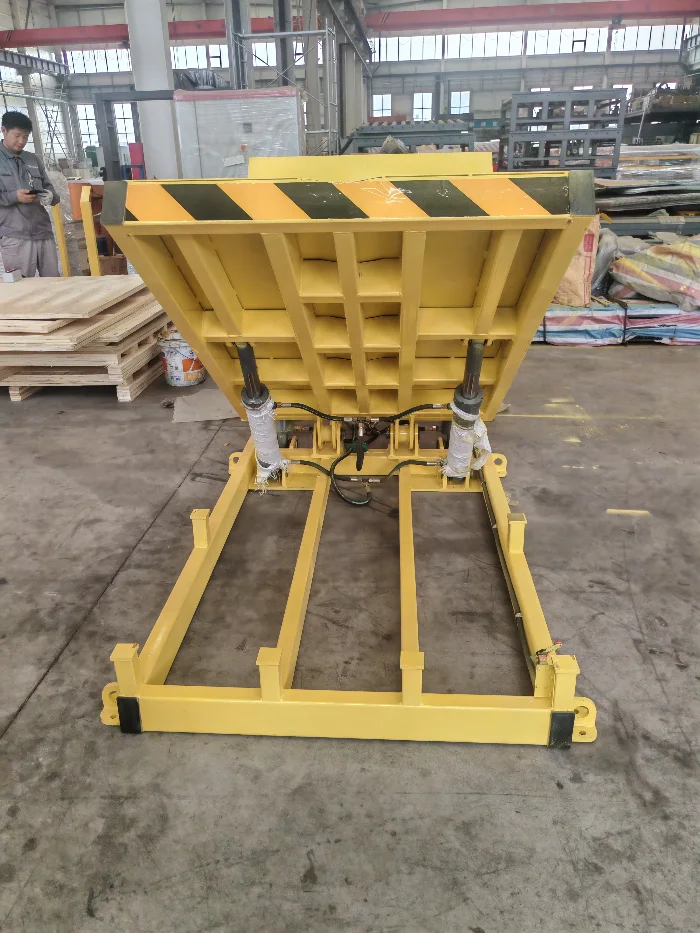

This case analysis details a 1700kg L-groove turning platform customized for the Italian coil processing industry.
Specifically designed for turning, cutting, and ejection of heavy coils, it features a low-profile structure and L-shaped platform with special grooves, providing a complete solution for precise positioning and efficient turning of heavy materials in coil processing.

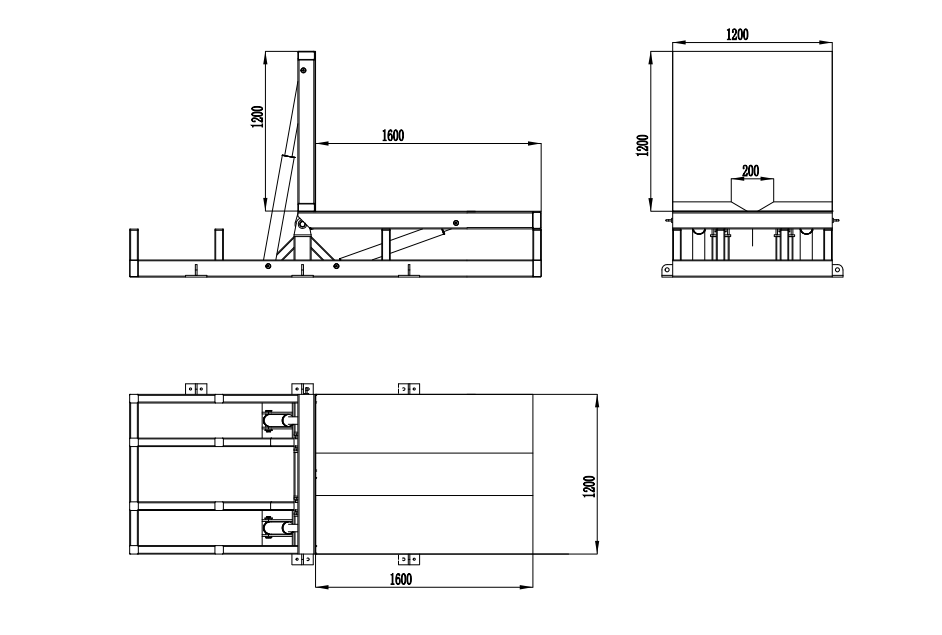

Basic Parameters
| Parameter | Value/Specification |
|---|---|
| Rated Load | 50 tons (core net weight) |
| Max Core Size | 4300×3400mm |
| Stacking Table Size | 3500×4300×1250mm |
| Turning Angle | 0-90 degrees |
| Angle Accuracy | ±0.5° |
| Turning Time | ≤10 minutes (adjustable) |
| Hydraulic Power | ≤55KW |
| Working Pressure | 18-25MPa |
| Flatness Accuracy | ≤3mm (under 50-ton load) |
| Service Life | >30 years |
How It Works
The equipment is pit-mounted to achieve a flush platform-ground interface.
After placing a 1700kg coil on the L-platform with 160-degree grooves, four φ80-60 cylinders driven by a 3KW power unit synchronously execute 90-degree precise turning.
After the cutting operation, the platform returns to its original position.
The Delixi electrical control system ensures safe operation through an external control cabinet and 5-meter remote controller.
The Challenges
The coil processing industry faces several challenges in heavy coil handling:
- Significant safety risks in manual turning of 1700kg coils
- Conventional equipment cannot meet special fixing requirements for coil shapes
- Strict European requirements for equipment safety and energy efficiency
- Limited production space requiring pit-mounted low-profile solutions
- Precise ejection requirement after coil cutting to avoid material damage
Solutions

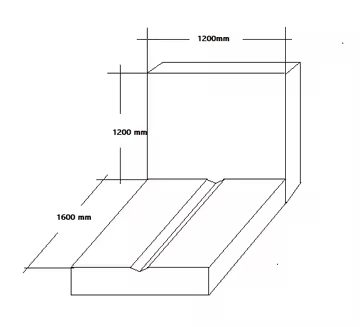

- Special Groove Design: 160-degree L-grooves perfectly match coil profile ensuring turning stability
- Low-profile Structure: Pit-mounted installation achieves flush platform-ground interface saving space
- European Compliance: 400V/50Hz voltage and CE certification requirements
- Safety Assurance: Delixi control system with grounding protection and emergency stop
- Maintenance-friendly: Includes vulnerable spare parts (seals and limit switches)
- Precision Control: 4-cylinder synchronization ensures smooth 1700kg load turning
