Best-Selling Models
Electric Articulating Boom Lifts (Flexible｜obstacle-reaching｜multi-angle)
Electric Telescopic Boom Lifts (Long-reach｜straight-line｜high-stability)
Diesel Scissor Lifts (More Power｜Longer Runtime｜Better Outdoor Performance｜No Charging Needed｜Higher Load Capacity)
Crawler Spider Boom Lifts (All-Terrain｜Non-Marking｜Stable on Slopes｜Auto-Leveling)

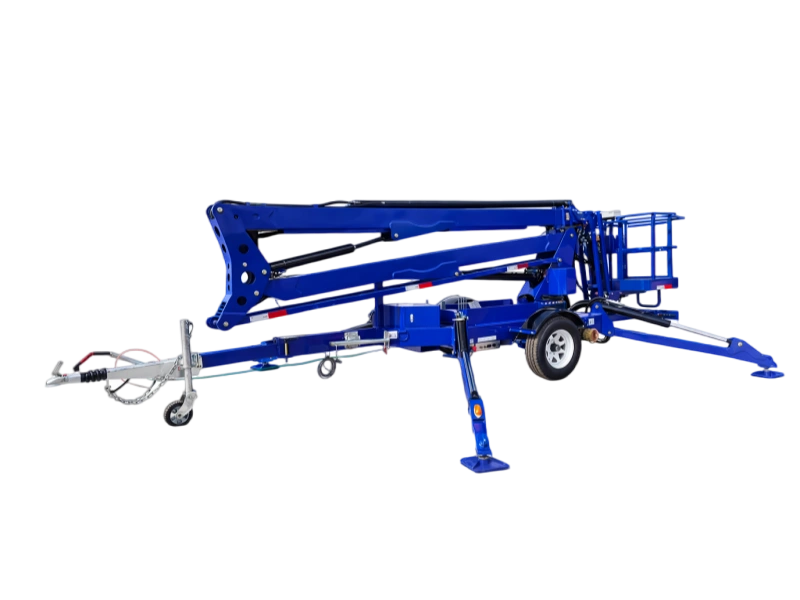

Trailer Fold Arm Boom Lift (Portable｜Versatile｜Stable)
Features
The product is lightweight and energy-saving, and has compact design with excellent battery life.
Σ-shaped boom with compact structure and flexible extension can realize vertical lifting and horizontal extension, and has strong obstacle-surpassing ability.
160° rotatable platform provides a larger working range, while the narrow turntable with compact layout improves work efficiency.
The platform control panel is PG and Bosch Rexroth brand, which is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance.
International brand drag chain of the telescopic jib provides safety protection and guiding capabilities for the cables inside the booms and prolongs the service life of the cables.
Equipped with solid tires, skid-proof and explosion-proof with longer lifetime, providing a stable and labor-saving operation.
Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments.
The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water.
The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation.
The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance.
The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments.
The tires are designed for durability and traction, providing excellent performance and stability on rough and uneven terrain.
Specifications
| Model | G-V20 | G-V18 | G-V16 | G-V14 | G-V11 | G-V09 |
| Max Working Height | 22.5m | 20.2m | 17.7m | 15.8m | 12.5m | 11.3 |
| Max Platform Height | 20.5m | 18.2m | 15.7m | 13.8m | 10.5m | 9.3 |
| Max Working Radius | 11.8m | 11.1m | 8.9m | 7.5m | 6.5m | 5.8m |
| Platform Dimension (LxWxH) | 1.8×0.76×1.1m | 1.8×0.76×1.1m | 1.4×0.76×1.1m | 1.4×0.76×1.1m | 1.4×0.7×1.1m | 1.4×0.7×1.1m |
| Machine Dimension (LxWxH) | 9×2.5×2.4m | 8.5×2.5×2.4m | 7.9×1.9×2.0m | 6.5×1.76×2.0m | 5.6×1.5×2.0m | 5.2×1.27×2.0m |
| Machine Weight | 10200kg | 9100kg | 6630kg | 5960kg | 5200kg | 5710kg |
| Load Capacity | 230/350 kg | 230/350kg | 230kg | 230kg | 200kg | 200kg |
| Driving Speed | 4.5km/h | 4.8km/h | 5.1km/h | 5.1km/h/h | 4.8km/h | 4.8km/h |
| Pump Motor | 12kw | 12kw | 4kw | 4kw | 4kw | 4kw |
| LFP Battery Power | 48V/420Ah | 48V/420Ah | 48V/420Ah | 48V/320Ah | 48V/320Ah | 48V/320Ah |
| Control Voltage | 24V | 24V | 24V | 24V | 24V | 24V |
| Specifications | G-J16 | G-J18 | G-J20 | G-J24Li | G-J26Li |
|---|---|---|---|---|---|
| Max. Working height | 18m | 20.5m | 21.6m | 26.2m | 28.8m |
| Max. Platform height | 16m | 18.5m | 19.6m | 24.2m | 26.8m |
| Max. Working radius | 11.2m | 13.2m | 14.5m | 20m | 22m |
| Platform Dimensions | 1.8m x 0.75m | 1.8m x 0.75m | 1.8m x 0.75m | 2.4m x 0.9m | 2.4m x 0.9m |
| Ⓐ Length (stowed) | 8.3m | 9.8m | 10.3m | 10.9m | 11.7m |
| Ⓑ Width (stowed) | 2.48m | 2.49m | 2.49m | 2.49m | 2.49m |
| Ⓒ Height (stowed) | 2.26m | 2.26m | 2.26m | 2.92m | 2.92m |
| Ⓓ Wheelbase | 2.5m | 2.5m | 2.5m | 3.2m | 3.2m |
| Ground clearance – center | 0.32m | 0.32m | 0.32m | 0.3m | 0.3m |
| Weight | 7800kg | 8520kg | 9100kg | 15100kg | 16600kg |
| Power Specifications | G-J16 | G-J18 | G-J20 | G-J24Li | G-J26Li |
| Battery | 48V/420Ah | 48V/320Ah | 48V/320Ah | 80V/500Ah | 80V/500Ah |
| Control voltage | 12V | 12V | 12V | 12V | 12V |
| Pump motor | 12kw | 12kw | 12kw | 30kw | 30kw |
| Drive motor | 3.3kw | 3.3kw | 3.3kw | 5.2kw | 5.2kw |
| Lithium Battery | Optional | Optional | Optional | Standard | Standard |
| Power Plus Generator | Optional | Optional | Optional | – | – |
| Max. Working height | 16.7m – 47.5m |
| Max. Platform height | 14.7m – 45.5m |
| Max. up and over clearance | 8.25m – 19.5m |
| Horizontal outreach | 8.1m – 23m |
| Ⓐ Platform width | 0.76m – 0.91m |
| Ⓑ Platform length | 1.83m – 2.44m |
| Ⓒ Height – stowed | 2.47m – 3.17m |
| Ⓓ Length – stowed | 6.72m – 14.7m |
| Ⓔ Width | 2.28m – 5.1m |
| Ⓕ Wheelbase | 2.4m – 5.6m |
| Ground clearance – center | 0.4m – 0.43m |
| Max. Lift capacity | 230kg/480kg |
| Number of platform occupants | 2/3 |
| Platform rotation | ±180° |
| Turntable rotation | 355°/360° continuous |
| Drive speed – raised | 0.8 – 1.1km/h |
| Drive speed – stowed | 4.2 – 4.4km/h |
| Gradeability – stowed | 40% |
| Turning radius (inside) | 1.87m – 7.6m |
| Turning radius (outside) | 4.8m – 10m |
| Drive and steer | 4×4×2 / 4×4×4 |
| Weight | 7500kg – 26500kg |
| Specifications | |
| Max. Working height | 12-22m |
| Max. Platform height | 10-20m |
| Horizontal outreach | 5.88-11m |
| Ⓐ Platform Length | 0.8m |
| Ⓑ Platform Width | 1.2m |
| Ⓒ Height–stowed | 1.9-2.1m |
| Ⓓ Length–stowed | 5.4-6.9m |
| Ⓔ Width–stowed | 1.7m |
| Ⓕ Ground Clearance | 0.25m |
| Ⓖ Length Outrigger Footprint | 3.9-6.5m |
| Ⓗ Width Outrigger Footprint | 3.9-6m |
| Productivity | |
| Lift Capacity-Standard | 200kg/400lb |
| Turntable rotation | 360° |
| Self-leveling platform | 3° |
| Speed–stowed | 100km/h |
| Tire size Rubber tyre | 700mm |
| Weight | 1950kg – 3500kg |
