7.4.2025 / 5-minute read

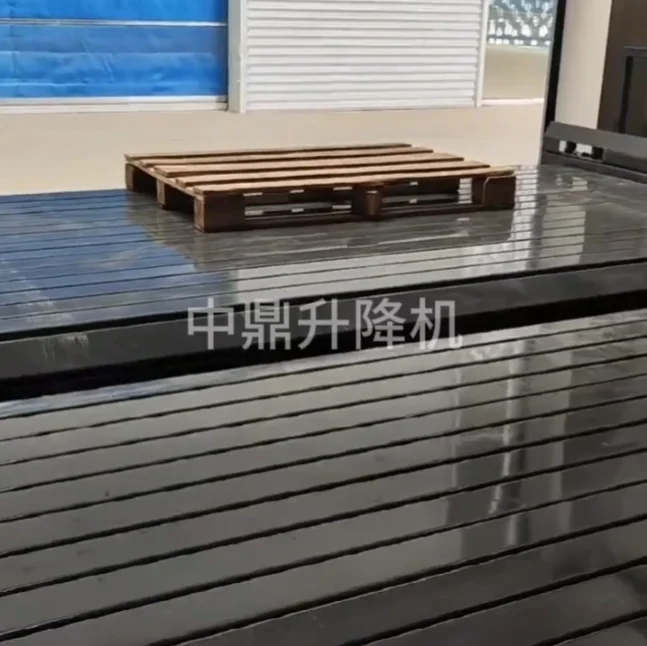

Slat Chain VRC | Transportador vertical para serviço pesado para paletes e caixas
Visão geral
Heavy-duty vertical reciprocating conveyor with slat chain mechanism, engineered for secure and efficient vertical transport of unit loads (pallets, containers, large parts).
Features cyclic lifting via a motorized platform within enclosed mast, enabling multi-level stops and automated material handoff between floors – an elevator alternative for industrial workflows.
Parâmetros básicos
| Parâmetro | Specification Range | Unit |
|---|---|---|
| Capacidade de carga | 500 – 5,000 | kg |
| Tamanho da plataforma | 1.2×0.8 – 6×3 | m |
| Altura do elevador | 2 – 30 | m |
| Velocidade de deslocamento | 0.1 – 0.3 | m/s |
| Positioning Acc. | ±5 – ±10 | mm |
| Fonte de alimentação | 380V/50Hz (3-phase) | – |
| Nível de ruído | ≤70 | dB(A) |
Working Principle
Motor-driven slat chains move a load platform vertically along guided masts. The platform ascends with loads and descends empty (or dual-platform for continuous flow). Precise positioning (±5mm) by encoders/limit switches ensures seamless integration with conveyors/AGVs for automated transfer.
Technical Advantages
- Heavy Payload: Steel slat chain + structural platform, capacity 500–5,000kg.
- High Precision: ±5mm leveling accuracy for automated docking.
- Construção robusta: Galvanized/alloy steel chains for 10+ year service life.
- Redundância de segurança: Dual mechanical locks, fall arrestors, door interlocks, E-stop (CE/EN 1570).
- Load Flexibility: Custom platform sizes (up to 6m×3m), handles pallets, carts, containers.
- Energy Efficient: VFD control + empty descent cuts energy by 40% vs elevators
Compatible Load Types
Pallets (EUR/CHEP), stillages, totes, machinery parts, raw material bundles, production modules
Typical Applications
- Automotive: Engine/transmission cross-floor transfer
- Warehousing: AS/RS input/output, cross-docking
- F&B: Case handling between production/packing
- Manufacturing: Stamped parts line feeding
- Pharma: Raw material totes transfer
Core Benefits
- ⚡ Elevator Alternative: No certification, fast install, lower cost
- ⛓️ Non-stop Operation: 24/7 duty cycle capability
- 📦 Space Saving: Vertical flow frees floor space
- 💰 High ROI: Labor reduction + minimized product damage
Customization Options
| Dimension | Options |
|---|---|
| Tamanho da plataforma | 1-6m L × 0.8-3m W |
| Máx. Carga | 500kg – 10,000kg |
| Altura de deslocamento | 2m – 30m |
| Sistema de portões | Manual roll-up/Auto sliding/Light curtain |
| Controle | Push-button/PLC+HMI/System integration |
| Environment | Explosion-proof(ATEX)/Washdown(IP65)/Cryogenic(-22°F) |
