드럼 연속 리프트 | 자동화된 헤비 듀티 드럼 리프팅 솔루션

개요

A continuous, automated lifting system specifically engineered for the efficient and safe elevation and transfer of standard drums (55-gallon / 200-liter).

Ideal for production lines, warehouse loading/unloading, filling lines, etc., significantly boosting material handling efficiency while reducing labor costs and risks.

기본 매개변수

매개변수	Specification Range	Units	Notes
부하 용량	150 – 500	kg (per lift)	Single or multiple drums
	330 – 1100	lbs
리프트 높이	1 – 10+	m	Customizable
	3.3 – 33+	ft
리프팅 속도	0.1 – 0.5	m/s	Adjustable
	0.33 – 1.64	ft/s
Drum Compatibility	Ø 560 – 600	mm	Standard 55-gal drums
(Diameter)	Ø 22 – 24	in
드라이브 시스템	Electric / Hydraulic	—	3-phase motor standard
제어 시스템	Push Button / PLC + HMI	—	Optional automation
전원 공급 장치	380-480V / 50-60Hz	—	Hydraulic: 15-25 bar
			(220-360 PSI)
Operating Temp.	-10°C to +50°C	°C	Industrial standard
	14°F to 122°F	°F
소음 수준	< 75	dB(A)	At 1 m distance

Working Principle

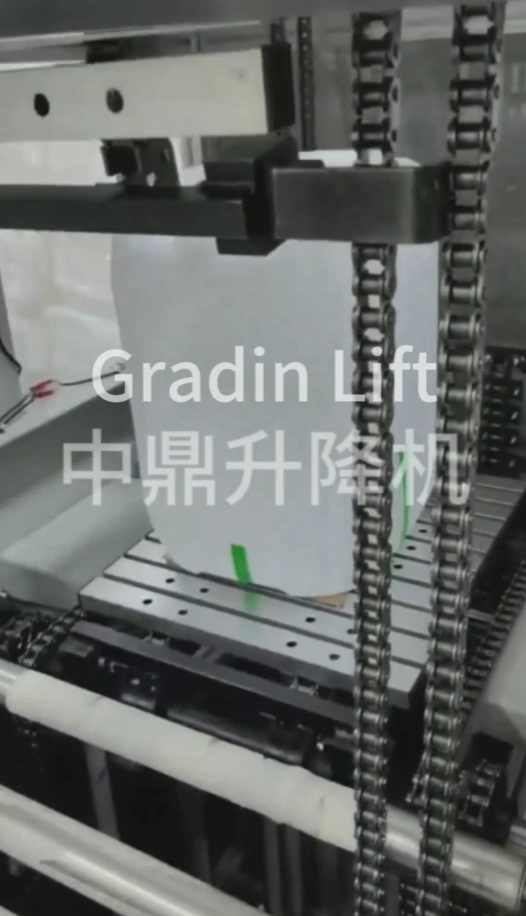

Utilizes a chain or belt-driven system equipped with specialized drum clamps or platforms. Drums are automatically fed into the lift inlet, continuously and smoothly elevated (or lowered) to the designated height by the conveying system, and automatically disengaged/released at the outlet, enabling continuous vertical transportation of drummed materials.

Technical Advantages

Continuous Operation: Seamlessly integrates with upstream/downstream processes for uninterrupted material flow.
High Efficiency & Stability: Fast lifting speed, high load capacity (single or multiple drums), smooth and shock-free operation.
Drum-Specific Tooling: Features adaptive drum clamps, slots, or platforms to securely grip standard drums (full/empty), preventing slippage and tipping.
Safety & Reliability: Multiple safety protections (overload protection, emergency stop, anti-drop device, safety guards/light curtains), compliant with industrial safety standards.
Robust Construction: Built from heavy-duty steel for durability in industrial environments.
Easy Integration: Flexible interfacing with conveyors, filling machines, palletizers, etc., for automated production lines.
Easy Maintenance: Modular design facilitates access and replacement of key components
