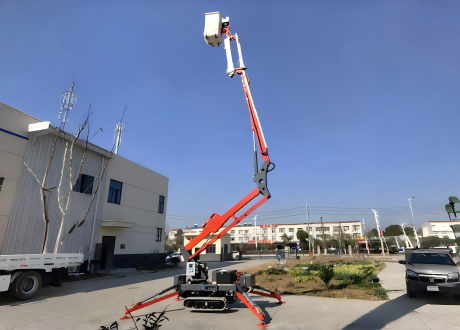

Nacelle araignée sur chenilles isolée G-X18D

18m|230kg|Superior Stability|Rough Terrain Adaptation

This insulated crawler spider boom lift, with a maximum working height of 18 meters and platform height of 16 meters, is designed for complex environments and electrical work. It features dual power systems, adjustable rubber tracks, and frog-leg outriggers with one-touch leveling, making it ideal for narrow or uneven terrain. The insulated boom ensures operator safety near power lines. With balance valves and an electric emergency pump, the hydraulic system remains safe and stable even in case of hose failure—making it a reliable choice for aerial operations.

Nacelle araignée sur chenilles isolée G-X18D

Modèles et spécifications

Spécifications
Hauteur de travail max. Hauteur de travail18m
Max. Hauteur de la plate-forme16m
Max. Rayon d'action7.2m
Dimensions de la plate-forme1.25*0.65m
Ⓐ Length- stowed6.05m
Ⓑ Width-stowed1.45m
Ⓒ Height-stowed1.99m
Ⓓ Outrigger Footprint Length4.02m
Ⓔ Outrigger Footprint Width2.94m
Productivité
Lift Capacity200 kg
Platform Occupancy2
Platform Rotation±80°
Jib Rotation45°
Turntable Rotation359°
Drive Speed- stowed1.5km/h
Gradeability30%
Max. Working Angle15°
Poids2380kg
Power
Insulation Voltage Rating10 kV
Insulated Platform AC Withstand Voltage(0.4 m, 50 kV/1 min) No flashover or breakdown
Insulated Boom Power Frequency Withstand Voltage(0.4 m, 50 kV/1 min) No flashover or breakdown
Vehicle AC Leakage Current (1 m, 20 kV)≤500 µA
Insulated Boom MaterialFRP Insulating Material
Power System (Standard)Gasoline Engine (Briggs & Stratton) + 220V/50Hz AC

Caractéristiques

  • Frog-Leg Outriggers – One-touch automatic leveling with outrigger safety locks for enhanced stability.
  • Dual Power System – Stable performance with stepless hydraulic speed control for smooth operation.
  • Hydraulic Safety – Boom and outrigger cylinders equipped with balance valves, hydraulic locks, and an electric emergency pump to ensure system safety even in the event of hose failure.
  • Rubber Tracks – Independently operated and width-adjustable tracks allow the machine to operate efficiently in narrow streets and extremely complex or harsh environments.
  • Ground-Level Work Basket – Platform can be lowered to the ground for easy and safe entry/exit.
  • Dual Insulated Boom Design – Upper and lower arms are insulated to ensure operator safety during live-line work.
  • Upper Insulated Control System – Provides additional protection for operators working on live lines and effectively prevents surface creepage on the platform.
  • Electrical Protective Cover on Upper Boom – Adds over 1.0 meter of effective insulation length. Even when the insulated boom is fully retracted, insulation performance is maintained.

Vidéos

Crawler Spider Boom Lift
Company Introduction Video

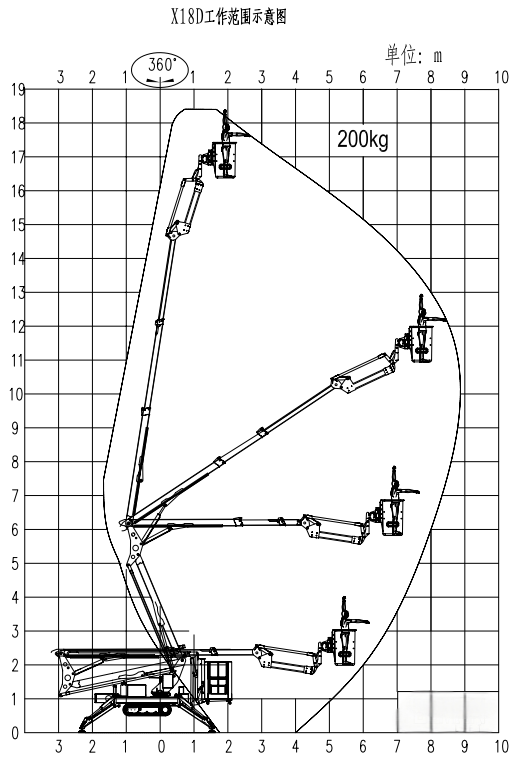

Size Charts
