Nacelles télescopiques électriques G-J16 16m
16m｜300kg｜Long-reach｜straight-line｜high-stability
Introducing the G-J16 Electric Telescopic Boom Lifts, distinguished by their specialized design tailored for specific aerial work demands. Unlike Articulating Boom Lifts, which excel in navigating around obstacles with their flexible, multi-jointed arms, Telescopic Boom Lifts like the G-J16 prioritize maximum height reach. With a straightforward, extendable arm mechanism, they are ideal for straight vertical and horizontal reach applications, such as construction and maintenance tasks where precise height is critical.
Nacelles télescopiques électriques G-J16 16m
Modèles et spécifications
| Spécifications | |
| Hauteur de travail max. Hauteur de travail | 18m |
| Max. Hauteur de la plate-forme | 16m |
| Max. Rayon d'action | 11.2m |
| Dimensions de la plate-forme | 1.8*0.75m |
| Ⓐ Length（stowed） | 8.3m |
| Ⓑ Width（stowed） | 2.48m |
| Ⓒ Height（stowed） | 2.26m |
| Ⓓ Wheelbase | 2.5m |
| Garde au sol - centre | 0.32m |
| Poids | 7800kg |
| Productivité | |
| Capacité de levage max. Capacité de levage | 300 kg |
| Nombre d'occupants de la plate-forme | 3 |
| Rotation de la plate-forme | ±80° |
| Rotation du plateau tournant | 360° Continuous |
| Jib rotation (up/down) | ±70° |
| Vitesse d'entraînement - rangée | 4,8km/h |
| Pouvoir de nivellement - rangé | 45% |
| Max. Working angle (Tilt sensor activation) | 3° |
| Rayon de braquage (extérieur) | 4.9m |
| Drive and steer mode | 4×2 |
| Power | |
| Batterie | 48V/320Ah |
| Tension de contrôle | 12V |
| Moteur de la pompe | 12kw |
| Moteur d'entraînement | 3,3 kW |
| En option | |
| Pile au lithium | En option |
| Générateur Power Plus | En option |
Caractéristiques
The Bosch Rexroth platform control panel is equipped with proportional joystick controls and an emergency stop button.
The Bosch Rexroth ground control panel features an IP65 waterproof design and an emergency stop button.
The boom utilizes self-weight lowering technology and a load-sensitive hydraulic system to ensure smooth and energy-efficient operation.
The platform can automatically level itself within a ±80° rotation range.
The 360° continuous rotation of the turntable allows the platform to reach worksites with enhanced flexibility.
Advanced four-wheel AC drive technology combined with steering differential control significantly reduces tire wear and motor overload rates.
Équipé de pneus solides, antidérapants et antidéflagrants, d'une durée de vie plus longue, il assure un fonctionnement stable et économe en main-d'œuvre.
The international brand drag chain of the telescopic boom offers safety protection and guiding capabilities for the cables inside the booms.
Vidéos

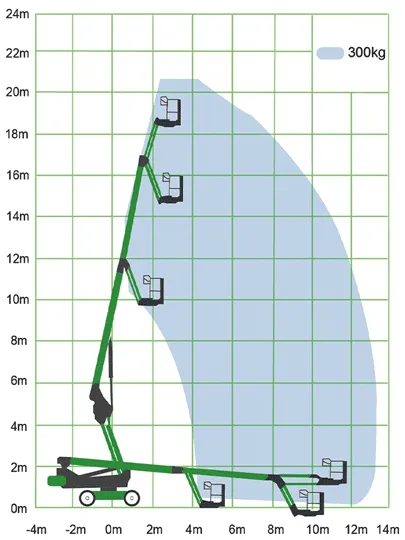

Dimensional Drawing
