6.11.2025 / 5 minute read

Custom Rolling Shutter Freight Elevator | Vertical Logistics Solution

Vue d'ensemble

The Rolling Shutter Freight Elevator integrates rapid-access doors with vertical lifting systems, featuring:
Space footprint ＜1.5m² (40% less than conventional)
Synchronized door-lift control for direct cargo transfer
Dual compliance: GB 28755 & CE Machinery Directive

Paramètres de base

ParamètresStandardCustom Range
Capacité de charge3000kg2000-30000kg
Vitesse de levage0.3m/s0.25-0.5m/s
Max Height10m≤15m
Door Size (W×H)2500×2200mm2000-3000×2000-2500mm
Taille de la plate-forme2600×2800mmShaft-adaptive
Protection ClassIP54/IP32IP65 optional
Drive SystemHydraulic Power UnitElectric Rack-Pinion

Le défi

  • Space Waste
    Traditional elevators require ＞2.5m² for airlock zones
  • Efficiency Loss
    Separated loading/lifting processes cost ＞180s/cycle
  • Risques pour la sécurité
    Non-synchronized doors cause ＞0.3% fall accidents
  • Environmental Limits
    Standard seals fail below -10℃

Solutions

Space Optimization

  • Shaft-embedded shutter doors
  • 200mm pit depth design

Efficiency Upgrade

  • Door-lift synchronization control
  • 0.5m/s high-speed door operation

Safety Engineering

  • Triple braking system (mechanical/electrical/dynamic)
  • ±2% overload precision protection

Extreme Environment

  • -30℃ hydraulic fluid
  • 304 stainless steel guide rails

Avantages

  • 40% Space Saving
    Shaft depth compressed to 1.2m, eliminating airlocks
  • 30% Operational Efficiency Gain
    ≤90s cycle time via direct cargo transfer
  • Mil-Spec Safety
    ✓ Mechanical safety gear (response ＜0.1s)
    ✓ Door interlock (EN 81-20)
    ✓ Dynamic load monitoring
  • Full Customization
    ✓ Explosion-proof version (Ex db IIC T4)
    ✓ Food-grade stainless steel
    ✓ -40℃ Arctic hydraulic oil

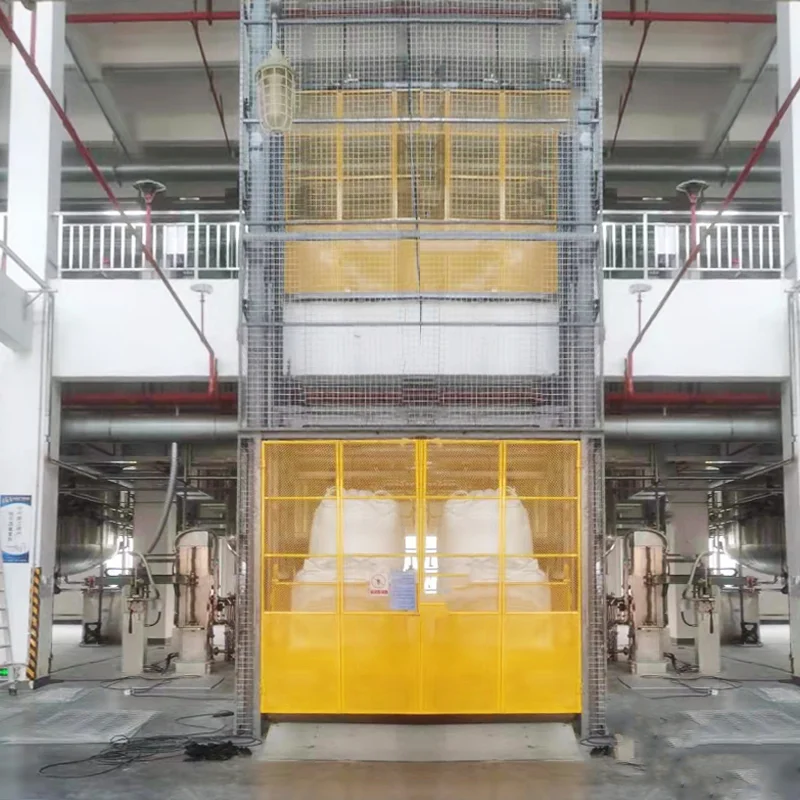

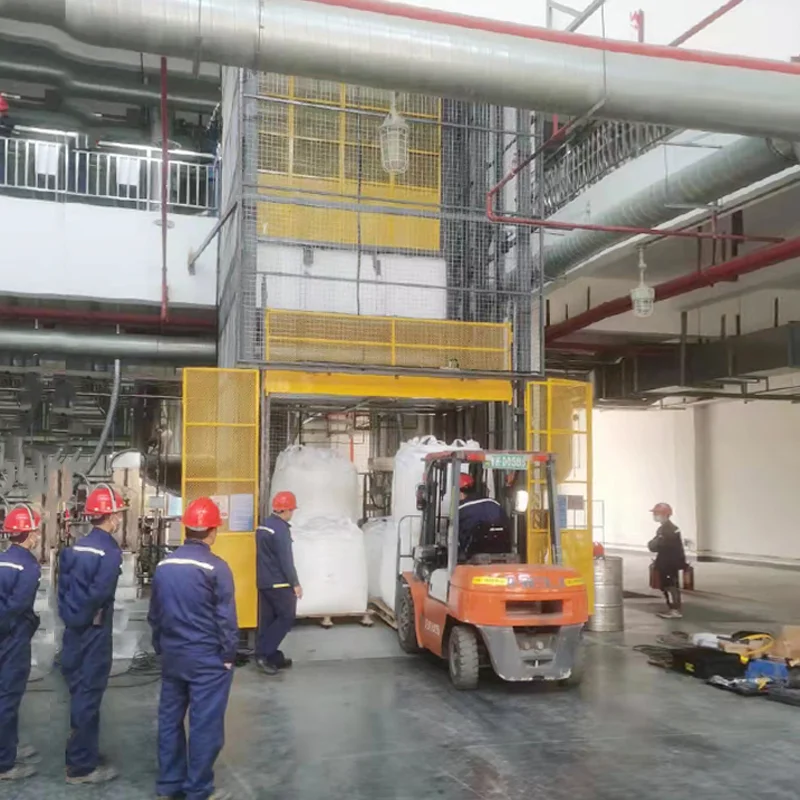

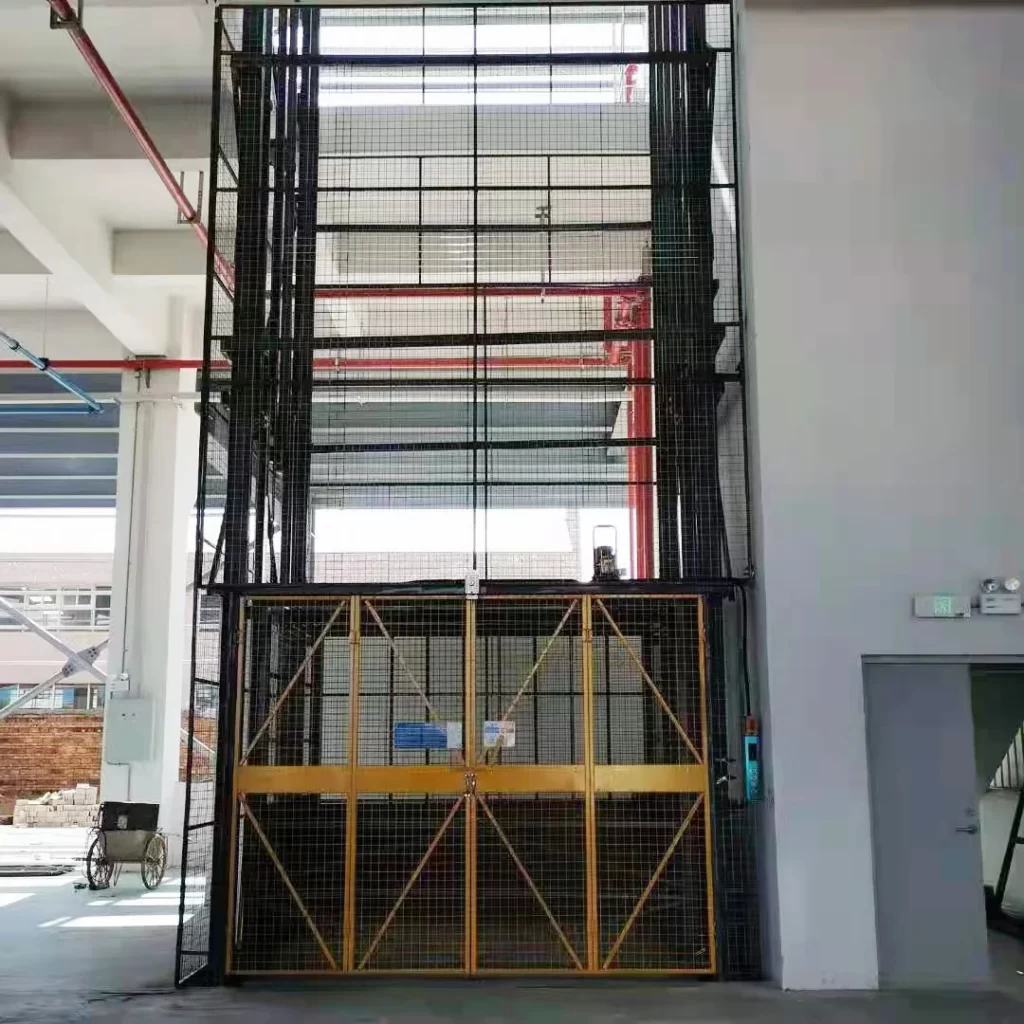

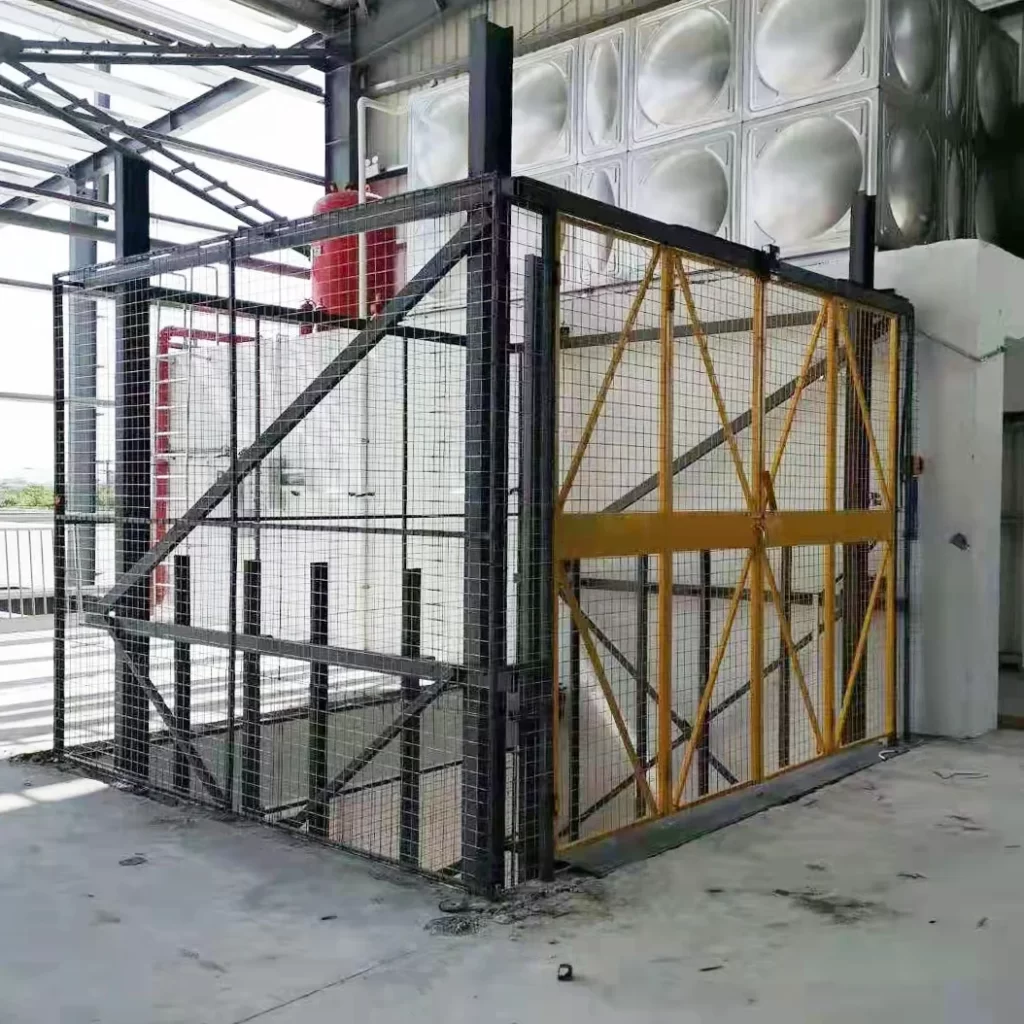

Galerie
