Élévateur réciproque de 18 m pour l'automatisation des matières premières de boissons de 2000 kg
Project Overview
Equipment End-user: A primary supplier to leading Chinese beverage companies.
Industry: Beverage Raw Material R&D & Manufacturing
Objective: Automate vertical transport of heavy pallets (1700×1700×2400mm) across 4 floors (18m height).

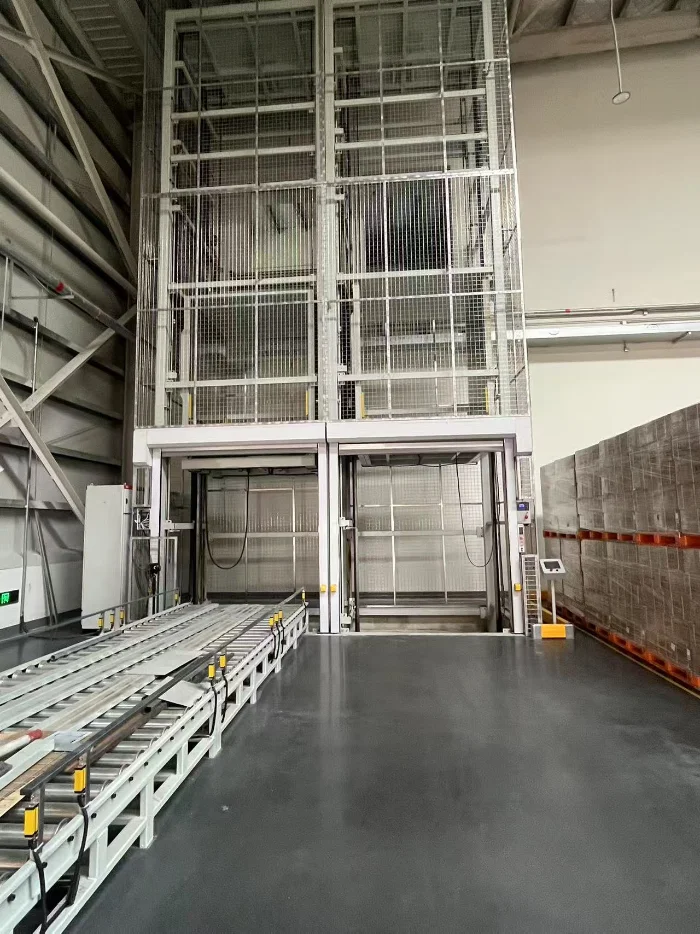

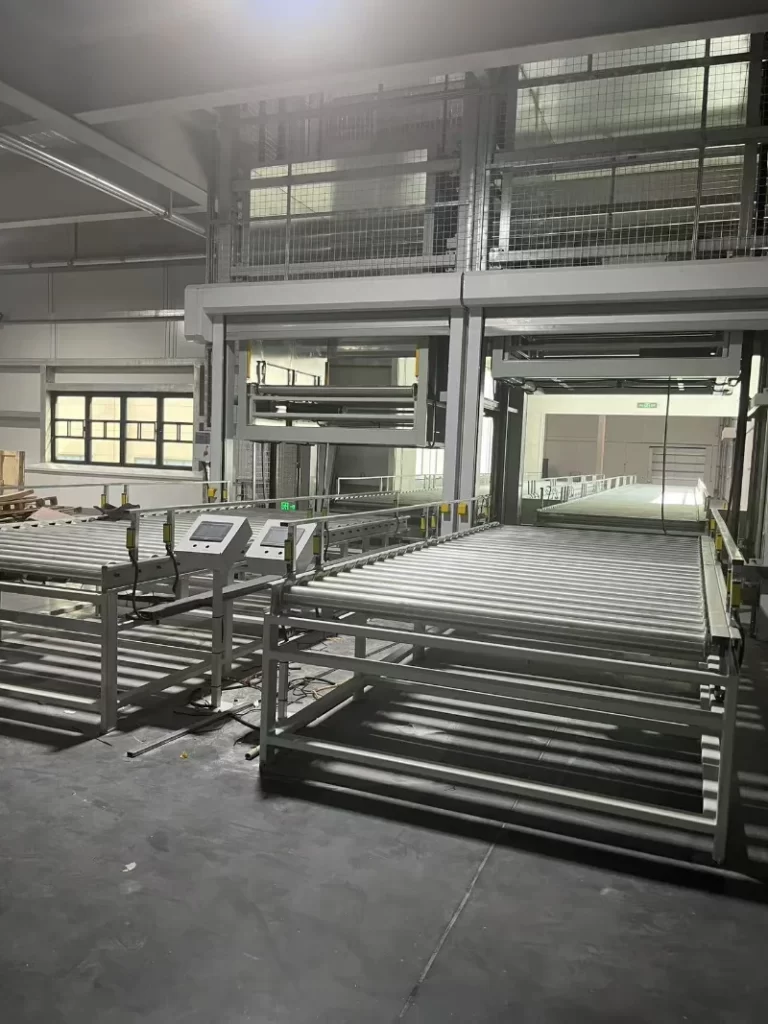

Solution: Custom SJW2.0-18.0 elevator with intelligent control and safety systems.
Paramètres de base
| Paramètres | Valeur |
|---|---|
| Payload | 2000kg |
| Hauteur de levage | 18,000mm |
| Précision du positionnement | ±5mm |
| Vitesse | 36m/min (Adjustable) |
| Stations | 4 Floors / 4 Stops |
| Sécurité | 4 Fire-rated Curtain Doors + Light Grids |
Le défi
- 18m lift height requiring anti-sway structure
- 2000kg dynamic load demanding ultra-robust chains/guides
- ±5mm pallet docking precision
- Food-grade hygiene compliance

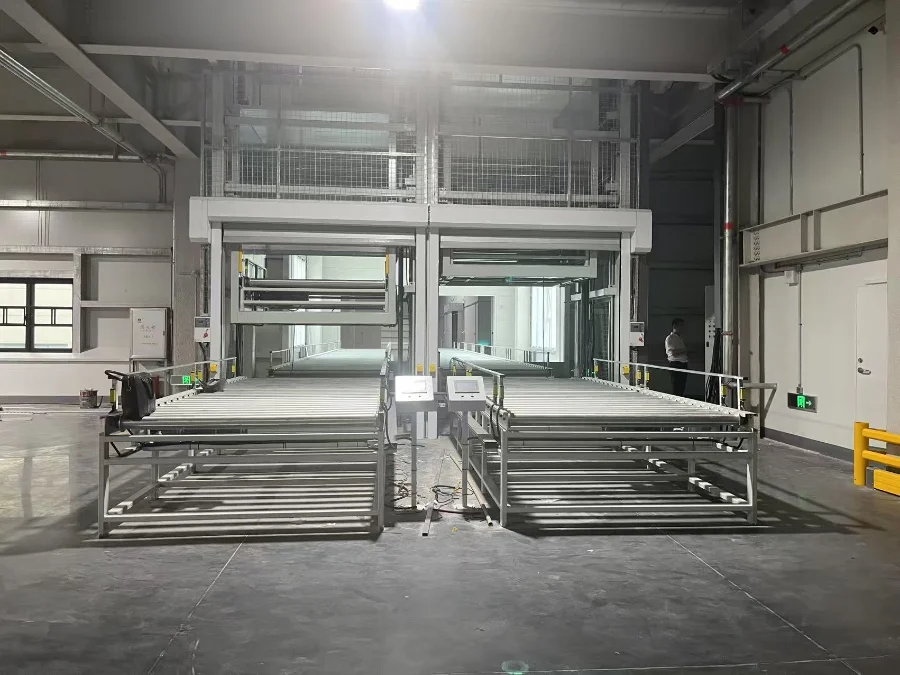

Solutions
Structural Reinforcement
- Main frame: 150×4mm steel tubes (Laigang Group)
- Lifting system: T90 elevator guides + 20B industrial chains (Donghua)
Precision Control
- Drive: SEW 15.5kW gearmotor + Siemens PLC
- Safety: Elevator-grade arrestor + Yuxi light curtains
Industry Adaptation
- Sanitary 304 stainless steel car (TISCO)
- 4 fire-rated high-speed doors
