Vehicle Storage System for Luxury Residence

Project Overview

Client: Private Villa Owner

Industry: High-End Residential Parking Solutions

Application: Automated Underground Vehicle Storage

Core Challenge: To design and install a sophisticated vehicle storage system enabling seamless transition of two vehicles from ground level to underground parking with precise space optimization.

Basic Parameters

Parameter	Specification
Load Capacity	10,000 kg
Platform Size	13,800 × 6,000 mm
Travel Height	4,900 mm
Lifting Speed	4 m/min
Power System	12.5 kW Hydraulic Power Unit
Control System	Siemens PLC + Schneider Components
Rotating Platforms	2 × Ø5,500 mm (1 RPM)
Finish	Matte White

Challenge

Limited Space: Required efficient storage for multiple vehicles within confined underground area
Precision Maneuvering: Needed exact 90-degree vehicle rotation for orderly parking arrangement
Aesthetic Integration: Equipment must maintain visual appeal while providing industrial-grade performance
User-Friendly Operation: Required simple, reliable control system for daily residential use

Solution

System Architecture Design

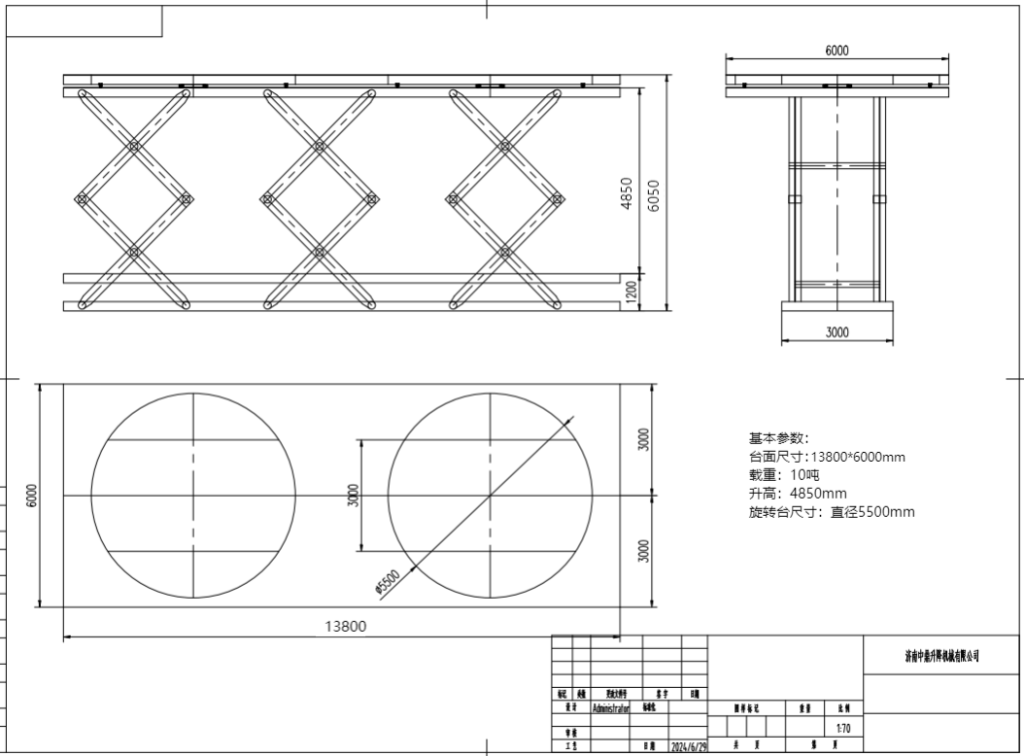

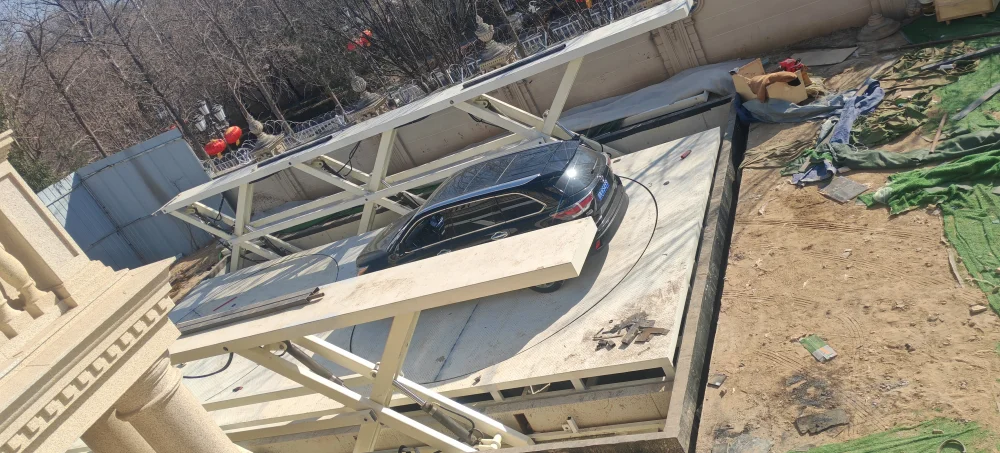

Overall Layout: Utilizes a large 13.8m×6m platform that perfectly accommodates two standard parking spaces

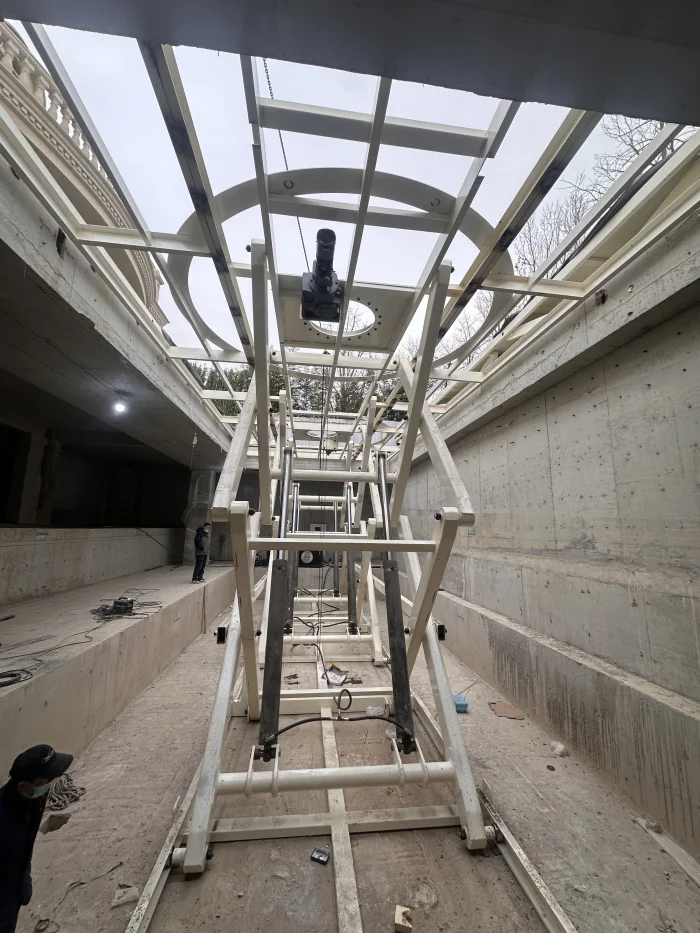

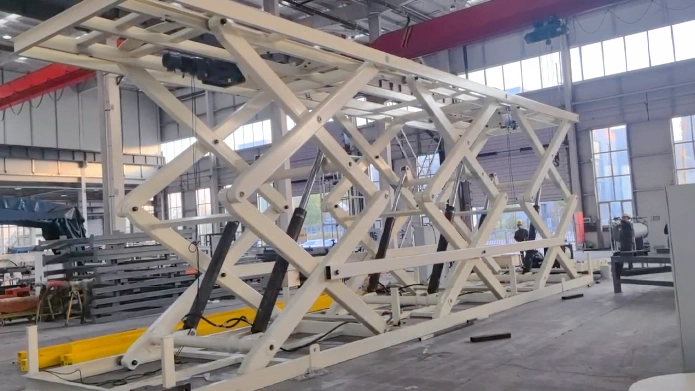

Structural Design: Three-level, two-span frame structure ensures structural stability when bearing 10-ton loads
Space Optimization: Equipment retracted height below 1200mm maximizes underground space utilization

Core Technical Highlights

Synchronized Lifting System

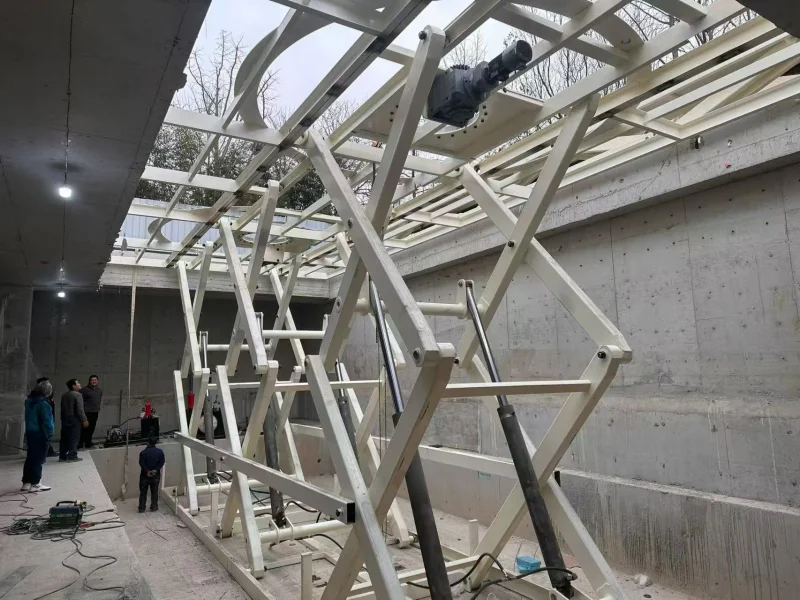

- Employs 4 sets of Φ120-100 hydraulic cylinders for smooth synchronous lifting
- Lifting speed of 4m/min ensures operational stability
- Siemens PLC controls lifting synchronization accuracy within ±5mm

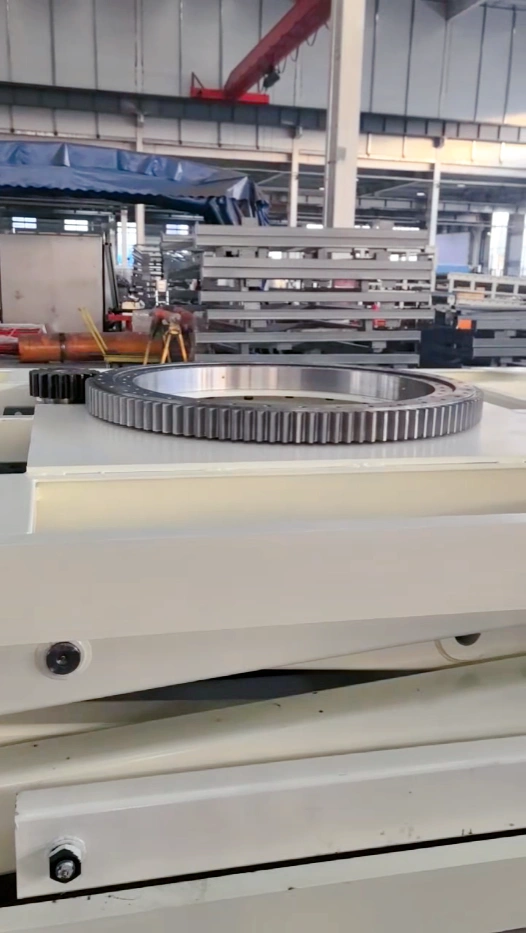

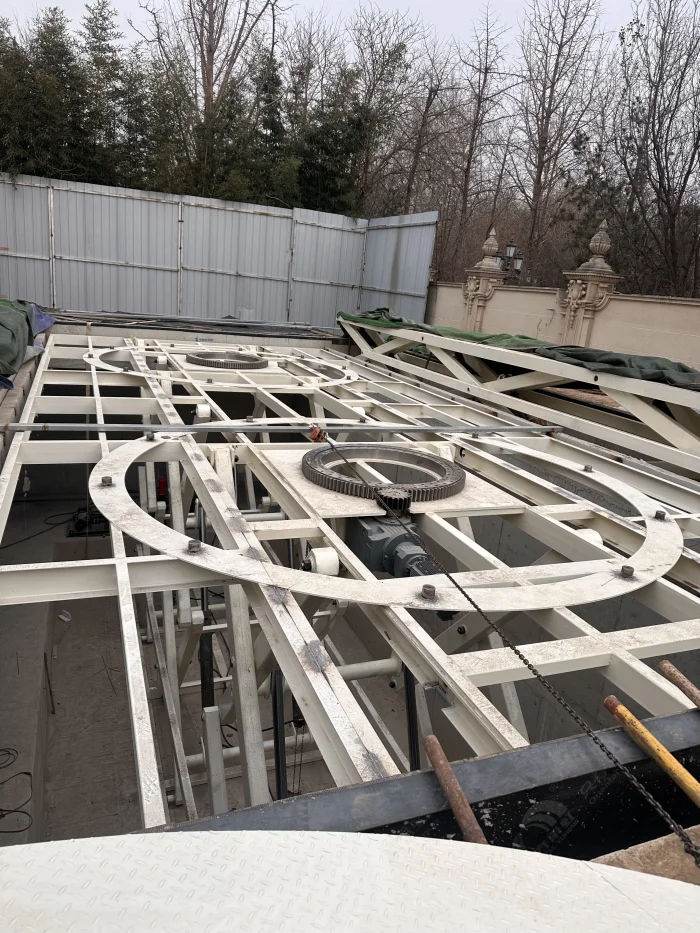

Independent Rotating Platforms
- Two independent rotating platforms with 5500mm diameter
- Rotation speed of 1 RPM, equipped with parking damping devices
- Precise rotation positioning achievable while platform is stationary

Intelligent Control System

Core Control: Integrated control using Siemens PLC
Execution Components: Schneider brand ensures reliability
Operation Method: Two wireless remote controllers with integrated control functions
Safety Monitoring: Real-time system status monitoring ensures operational safety

Safety Protection Design

Structural Safety: Uses 250×100×6mm rectangular tubes and [20 channel steel to ensure structural strength
Hydraulic Safety: Beijing Huade pumps and valves combined with Hengyu cylinders provide reliable power assurance
Electrical Safety: Siemens motors with secondary energy efficiency rating, energy-saving and environmentally friendly
Emergency Measures: Manual pressure relief system on the platform ensures safe operation in emergencies

Humanized Design

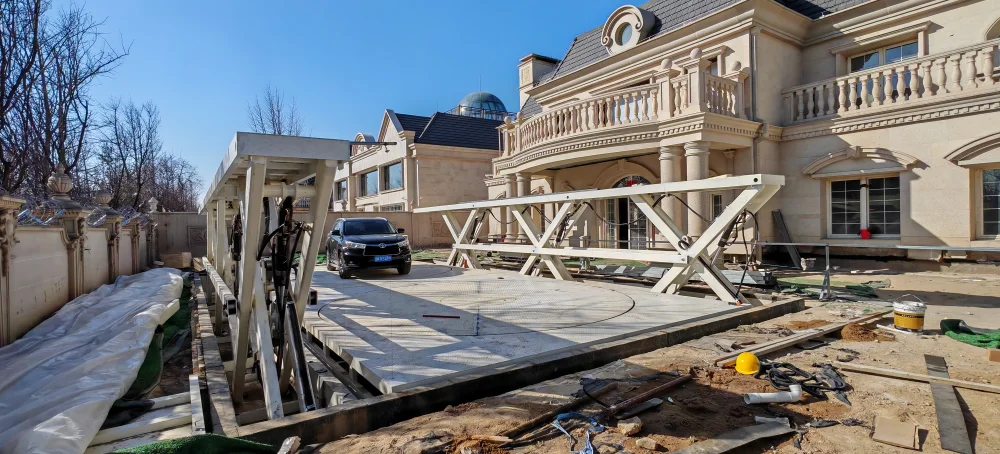

Aesthetic Design: Matte white finish perfectly integrates with villa environment
Operational Convenience: Compact and aesthetically designed remote controllers with simple operation
Maintenance Ease: Modular design facilitates later maintenance and servicing
