Smart Container Rotator System – 90°/360° Remote-Control Flipping Platform for Logistics & Manufacturing
Project Overview
This 90° hydraulic turning machine delivers precision rotation for 15-ton cylinder sleeves in ship engine production lines. Engineered for pit installation, it features variable-frequency hydraulics achieving 70s±10.5s flipping cycles with instant angle locking. The intelligent system includes:
Operational reliability is ensured in extreme conditions (-10°C to 50°C / 90% RH) through industrial-grade PLC controls and wear-resistant steel construction. Delivered as a turnkey solution within 75 days, the machine complies with 5 national safety standards, including GB 5083, providing failsafe heavy-load handling for automated production environments.
Basic Parameters
| Parameter | Standard Range | Premium Configuration | Special Application |
|---|---|---|---|
| Load Capacity | 0.5-30t | 40t (FDM798T-40G) | 50t (Metallurgy) |
| Rotation Angle | 0-90° | 0-180° | 360° continuous |
| Drive System | Hydraulic cylinder | Electric stepless | Pneumatic (EX) |

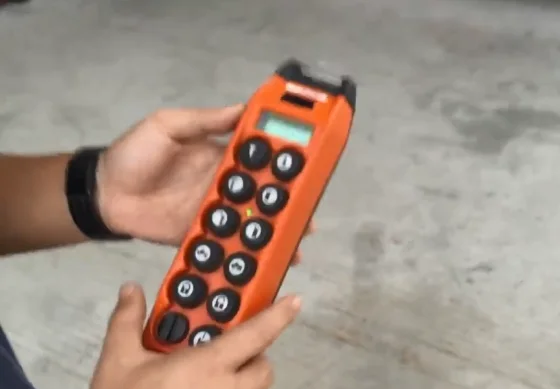

| Control Method | Control panel | Wireless remote (100m) | Programmable logic |
| Lift Travel | 200-800mm | >1000mm | Adaptive adjustment |
| Container Type | 20′ standard | 20’/40′ universal | Coil steel specials |
| Power Rating | 7.5-18.5kW | 199kW (Heavy-duty) | Energy regeneration |
| Cycle Time | 60-120 seconds | <60 seconds | Multi-box operation |
The Challenge
- 15-ton workpiece risks: Prevent tipping/slipping during rotation
- Multi-size adaptation: Quick roller adjustment for varying diameters
- Harsh environment: Reliable operation at -10℃~50℃ & 90% humidity
- Human-machine safety: Avoid pit falls & crane interference
Solutions
- Throughput Limitations: Manual unloading processes require 60-90 minutes per two containers, creating critical bottlenecks. Overhead crane-dependent operations in manufacturing disrupt production flow.
- Safety Hazards: Confined-space entry exposes workers to suffocation and entrapment risks (OSHA report: 35% of bulk handling accidents occur inside containers). Unsecured rotation causes container drops and equipment damage.
- Cost Inefficiencies: Multi-equipment solutions increase capital expenditure by 40%. Hydraulic systems incur high maintenance costs ($18,000 annual average for traditional units).
- Operational Rigidity: Fixed 90° rotation angles cause material residue in 28% of operations. Limited container adaptability creates compatibility issues with special designs.
Advantages
- Operational Efficiency
- 3x faster unloading (30 minutes → 10 minutes per container)
- 100% container space utilization through precision positioning
- Cost Optimization
- Labor reduction: 3 workers → 1 operator
- 30% less facility space requirement vs. traditional systems
- Safety Compliance
- Eliminates confined-space entry per OSHA 1910.146
- CE-certified safety components with SIL-2 PLC
- Configuration Flexibility
- Quick-change adapters for multiple container types
- Field-upgradable from 90° to 360° rotation
- Maintenance Efficiency
- 50,000-hour hydraulic component lifespan
- Modular replacement with <4hr MTTR
