Pallet Vertical Conveyor | High-Capacity Automated Lifting Solution | Up to 100 Pallets/Hour
Overview

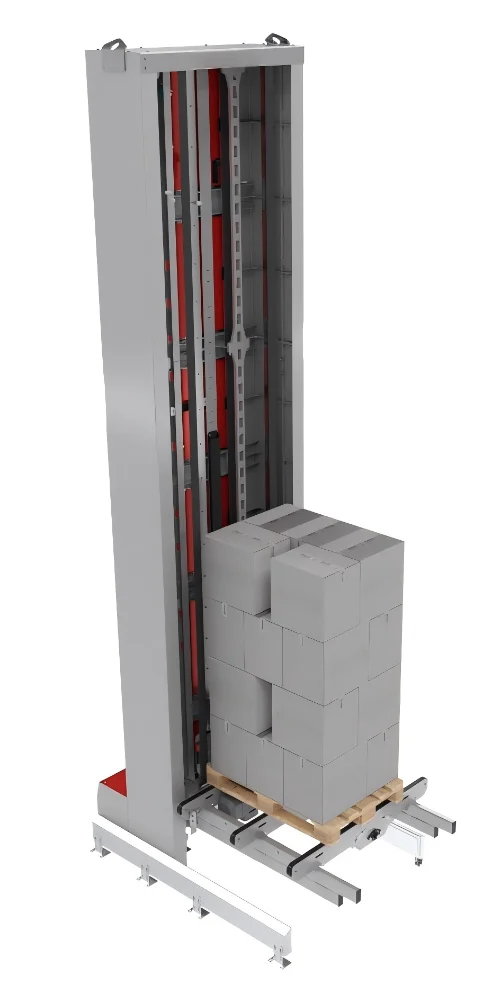

This pallet vertical conveyor provides a robust and stable solution for automated pallet handling, enabling efficient vertical transportation between different floors. Its compact structure ensures seamless integration into diverse layout environments with a minimal footprint, making it ideal for medium to high-frequency pallet transport operations.
Capable of handling standard pallets weighing up to 1,250 kg, the system offers a lifting height of up to 10 meters and a throughput of up to 100 pallets per hour. Featuring a modular design, the elevator is easy to install and maintain while delivering excellent system integration capabilities.

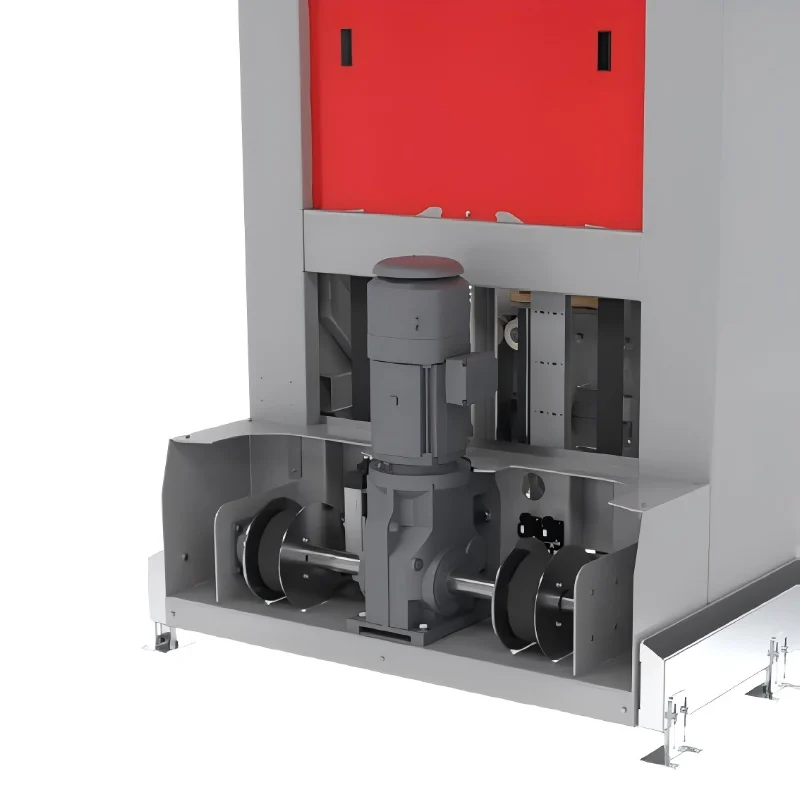

Pallets can be loaded and unloaded from three different directions, significantly enhancing layout flexibility and supporting multi-infeed and multi-outfeed configurations for vertical sorting. The load platform can be equipped with either roller conveyors or chain conveyors based on specific customer requirements. Powered by a high-quality motor, the drive system can be installed at ground level or on a mezzanine for added convenience.
Basic Parameters
| Parameter | Value |
|---|---|
| Lowest Infeed/Outfeed Height | 500 mm |
| Highest Infeed/Outfeed Height | 10,900 mm |
| Max. Travel Height | 10 m |
| Max. Pallet Weight | 1,500 kg |
| Max. Pallet Size | 1,300 x 1,250 mm |
| Max. Throughput | 100 p/h |
Advantages
- High-Efficiency Operation: Handles up to 100 pallets per hour, making it ideal for high-frequency transfers between production lines or different floors.
- Compact Structure: Features a space-saving design with a minimal footprint for easy integration into various factory or warehouse layouts.
- Three-Way Infeed/Outfeed: Allows pallets to enter and exit from three different directions, providing exceptional layout flexibility and integration freedom.

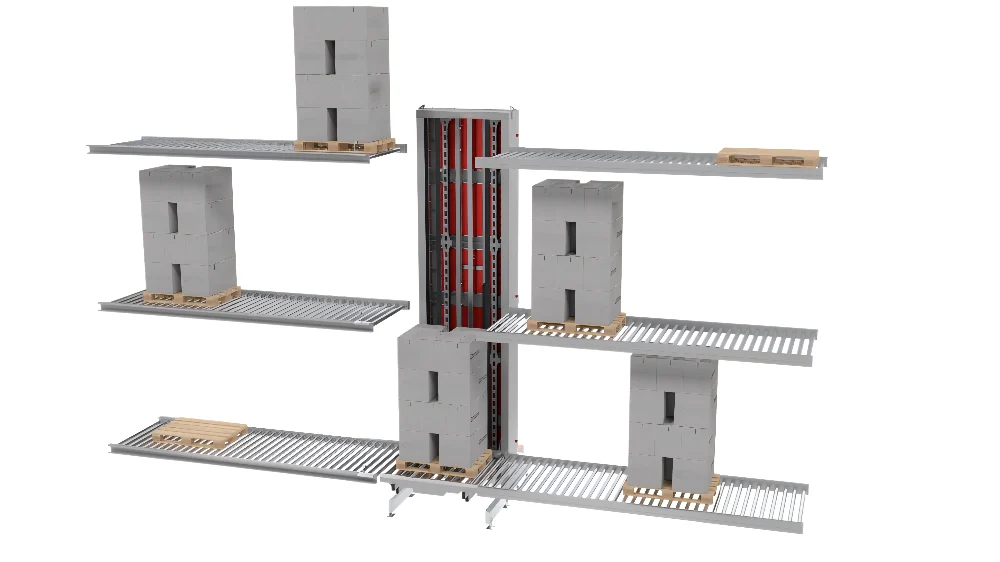

- Multi-Level Transport & Vertical Sorting: Supports configurations with multiple infeed and outfeed points, combining lifting and lowering with integrated sorting capabilities.
- Modular Design: Constructed with a fully modular approach for straightforward system integration and easy maintenance, helping to reduce operational costs.

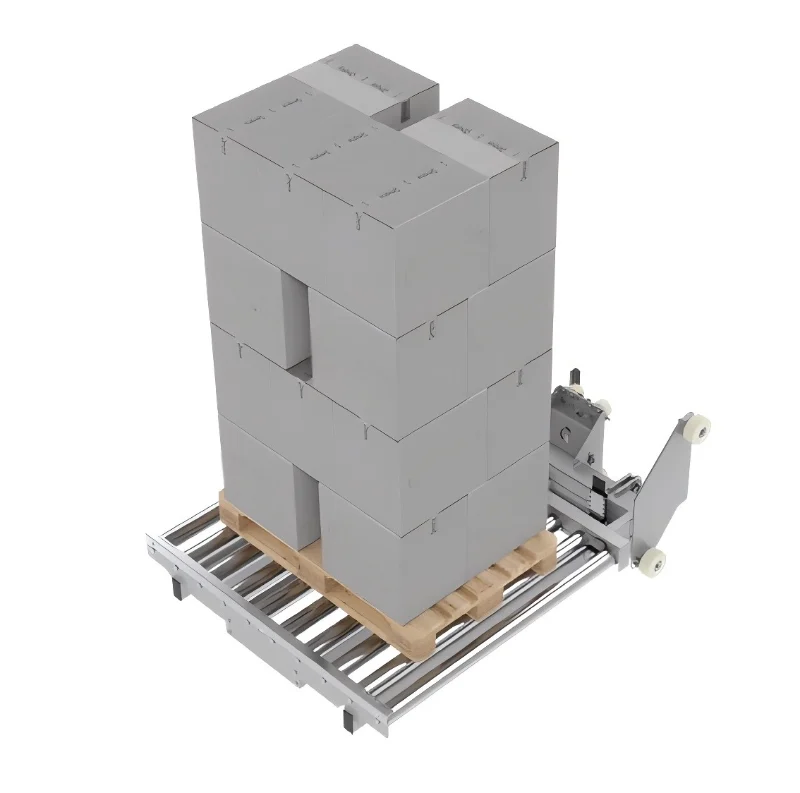

- Multiple Conveyor Options: The load platform can be fitted with either roller conveyors or chain conveyors to suit diverse application needs.
Key Applications
- Multi-Story Warehouse & Distribution Centers
Enables seamless vertical pallet transport between different building levels, optimizing storage density and retrieval efficiency. - Production Line Integration & Mezzanine Feeding
Connects ground-floor production lines with mezzanine-level assembly or storage areas, creating a continuous, automated workflow. - Automated Storage & Retrieval System (AS/RS) Interfaces
Serves as a high-throughput link between AS/RS and conveyor systems, facilitating efficient inbound and outbound logistics. - Vertical Sorting & Order Consolidation Hubs
Leverages its multi-directional infeed/outfeed capability to act as a compact vertical sortation node for directing pallets to specific zones. - Food, Beverage & Pharmaceutical Industries
Ideal for environments requiring frequent movement of standardized loads between processing, packaging, and cold storage levels. - Manufacturing & Assembly Facilities
Supports Just-in-Time (JIT) processes by providing reliable, high-speed vertical transfer of materials and components across production floors.
