11.7.2025 / 5-minute read

Outdoor Accessibility Lift for Scenic Areas | JG-350 Barrier-Free Platform

Overview

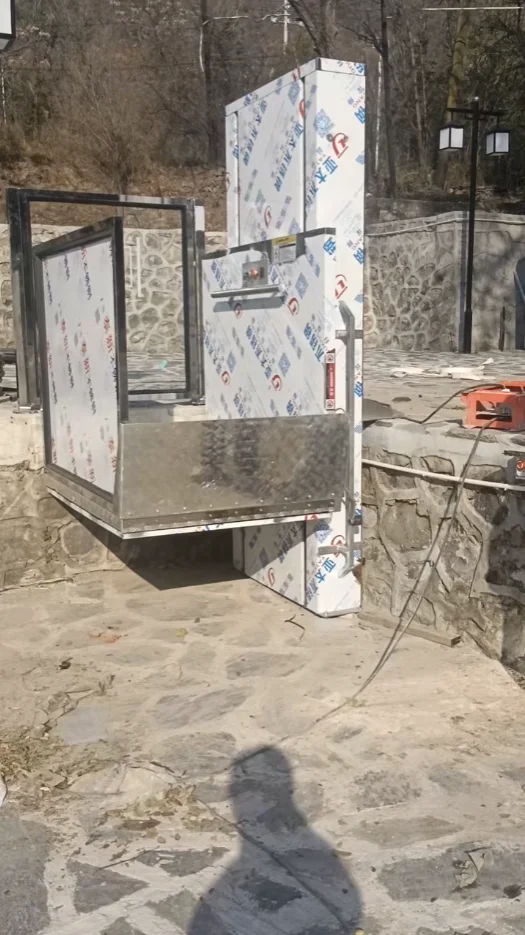

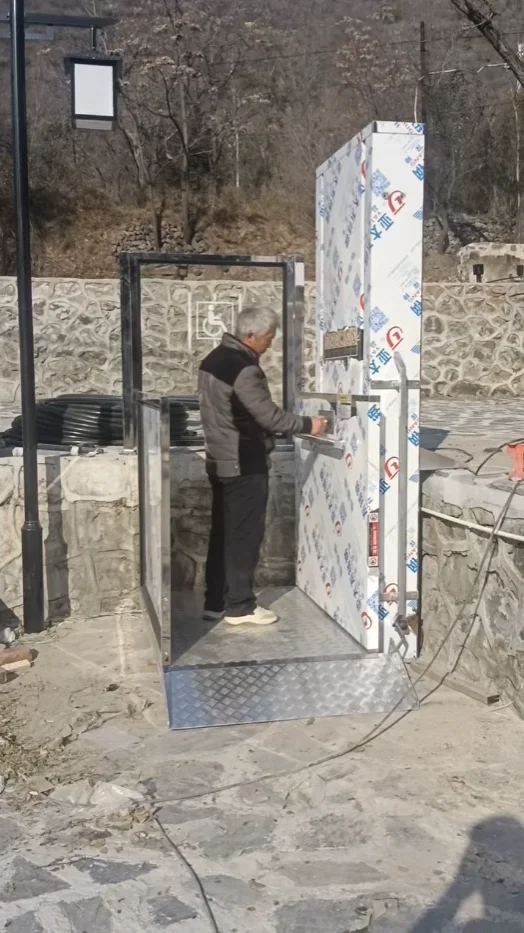

The JG-350 vertical accessibility lift was installed at the external area of a scenic spot tourist center to provide barrier-free access for all visitors.

This outdoor platform features stainless steel construction and a pit-free installation, specifically designed for external environments.

With its 250kg load capacity and 1200mm lift height, the solution enables full accessibility compliance while demonstrating excellent weather resistance in challenging outdoor conditions.

Basic Parameters

Category	Specification	Details/Notes
Core Parameters
Model	JG-350	Barrier-free access lift
Rated Load Capacity	250 kg
Lift Height	1,200 mm
Travel Speed	4-6 m/min
Platform Size	1,000 × 1,400 mm	900mm clear opening
Drive System
Power Unit	1.5 kW / 220V	Hydraulic power unit
Cylinder	Φ63/45 precision ground	1 piece
Construction
Platform Material	Patterned aluminum plate	180° access
Guide Rails	T78 rails with 201 stainless steel cladding
Chains	0834 plate-type lifting chains	Double chain drive
Control & Safety
Control System	Push-button	Call boxes at both levels
Electrical Components	Delixi brand
Safety Features	Overload protection, emergency stop, safety edges
Installation
Method	Pit-free installation	Direct floor mounting
Power Supply	220V	24V operating voltage

The Challenges

The scenic spot’s tourist center faced multiple accessibility and installation challenges:

Terrain Barriers: Elevated entrances created obstacles for wheelchair users and elderly visitors
Environmental Demands: Outdoor installation required weather-resistant construction
Space Limitations: Restricted area with minimal construction tolerance
Operational Constraints: Installation couldn’t disrupt daily visitor services

Solution

Durable Construction: 304 stainless steel body with corrosion-resistant coating
Space-Optimized Design: Pit-free installation requiring no ground excavation
Reliable Performance: Hydraulic system with Japanese NOK seals for outdoor use
Enhanced Safety: Multiple protection systems, including safety edges and emergency stops
User-Friendly Access: 180° platform configuration with intuitive push-button controls
