Automotive Service Lift for Car Repair & Maintenance Business

Project Overview

This case study presents a heavy-duty automotive lift solution customized for a professional automotive service provider.

The client, specializing in automotive repair, maintenance, and beauty services, required a vehicle lifting system to enhance workshop efficiency.

This automotive transport platform is designed to handle multiple core tasks: positioning vehicles during repairs, creating optimal workspace for maintenance, and facilitating quick station conversion for beauty services.

It successfully addresses the client’s requirement for both equipment stability and enhanced workflow integration.

Basic Parameters

Category	Parameter	Details / Value
General Model Info	Contract No.	ZD-LYS20250928
	Customer Industry	Auto Repair, Maintenance & Detailing
	Product Type	Heavy-Duty Automotive Service Lift / Transport Platform
Main Specifications	Table Size (L x W)	7900mm x 4200mm
	Pit Size (L x W)	8000mm x 5000mm
	Travel Height	4200mm
	Rated Load Capacity	5000 kg
	Number of Stops	2 Stops & 2 Stations
	Equipment Grade	Standard (Non-Explosion Proof)
	Drive-through Direction	4200mm Side (Through Access)

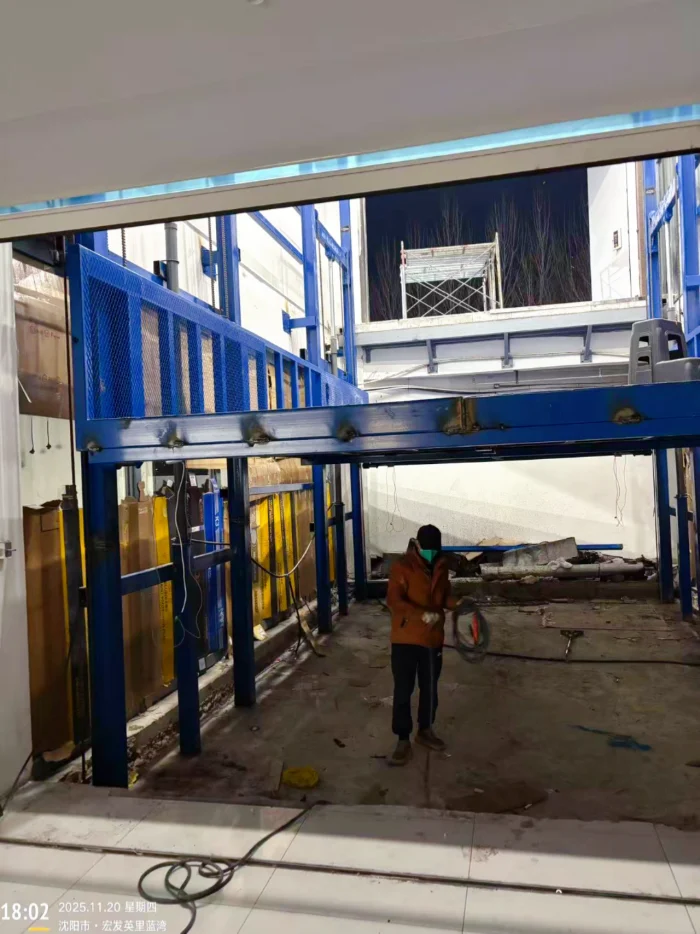

Structural Design	Mechanical Form	4 Hydraulic Cylinders, 8 Columns
	Guide Rails	150 H-Steel * 8 units
	Hydraulic Cylinders	80-60mm * 4 units
	Table Frame	160804mm Rectangular Tube + φ80 round tube
	Table Deck Plate	5mm Checkered Plate
	Lifting Frame	120604mm Rectangular Tube
	Top Lift Frame	160804mm Rectangular Tube
Power & Transmission	Power Station	7.5 KW
	Hydraulic Lines	φ22 * 4 lines
	Lifting Chains	#1244 Plate-Type Chain
	Steel Wire Rope	16# (Backup Safety)
	Pit Depth	590mm (Client-Prepared)
	Finish Color	Standard Blue
Special Requirements	1. Leveling Device	Included
	2. Door Integration	Electrical pre-wiring provided for customer’s existing doors.
	3. Old Equipment	Removal service required.
	4. Timeline	Mandatory delivery by October 20, 2025.

Requirements

Door Integration: Compatible with existing workshop doors

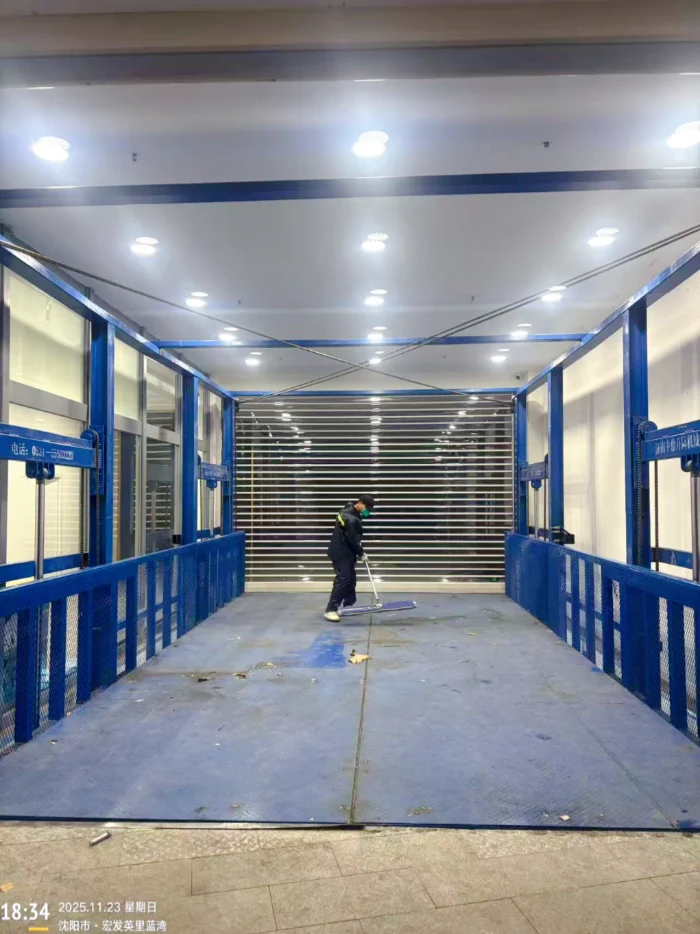

Platform Design: Non-slip 5mm patterned steel surface

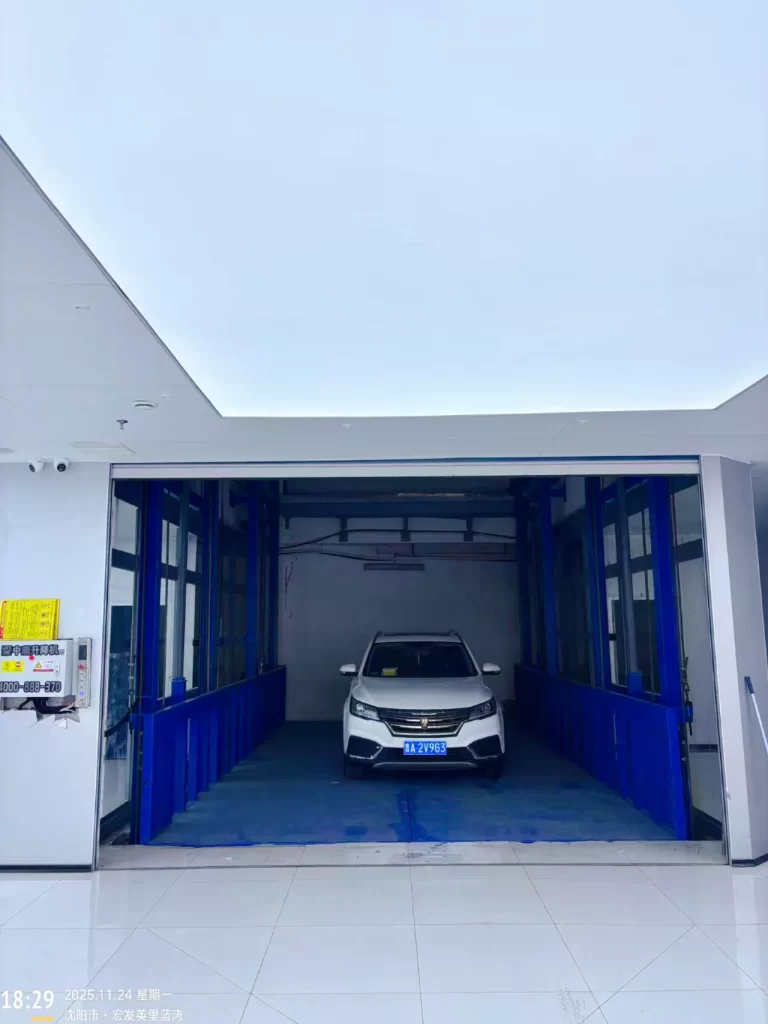

Access Configuration: 4200mm through access for vehicle flow
Color Scheme: Professional blue finish

Solutions

Comprehensive Vehicle Repair Platform: The 4200mm travel height provides technicians with complete, unobstructed access to vehicle undersides. This enables efficient execution of complex repairs including exhaust system replacements, transmission work, and suspension modifications. The rigid 4-cylinder, 8-column design ensures absolute stability during precision repair tasks.
Multi-level Maintenance Workstation: With its 5000kg capacity and expansive work surface, the platform comfortably accommodates everything from compact sedans to full-size SUVs. This versatility makes it ideal for routine maintenance procedures such as oil changes, brake servicing, tire rotations, and electrical system diagnostics – all performed with ergonomic comfort.
Professional Automotive Beauty Station: The elevated working position transforms detailing operations, allowing technicians to perform paint correction, ceramic coating application, and interior deep-cleaning without constant bending or stretching. The non-slip 5mm patterned steel deck provides secure footing while working with liquids and polishers.

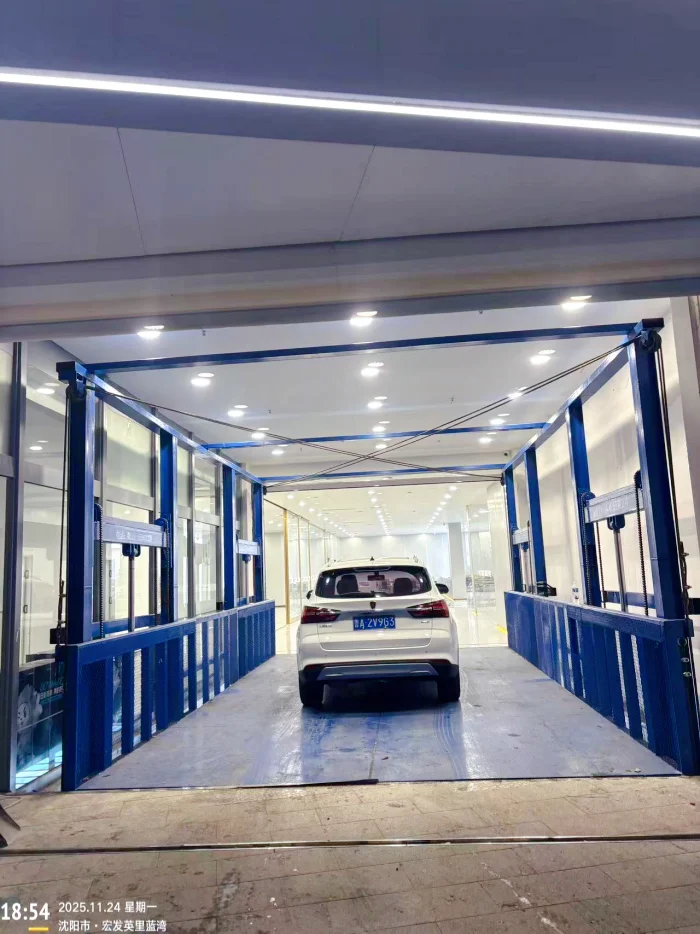

Intelligent Vehicle Transport System: The through-access design facilitates seamless vehicle movement between specialized service bays. This significantly reduces repositioning time and eliminates the need for multiple test drives, creating a continuous workflow from mechanical repair to final quality control.
Enhanced Workshop Flexibility: The 2-stop, 2-station configuration allows simultaneous operations at different height levels, while the quick station conversion capability enables rapid reconfiguration between mechanical repair and aesthetic service modes – maximizing utilization throughout the workday.
