10Ton Chain Turning Rolls – 90/180° Precision Flipping

Project Overview

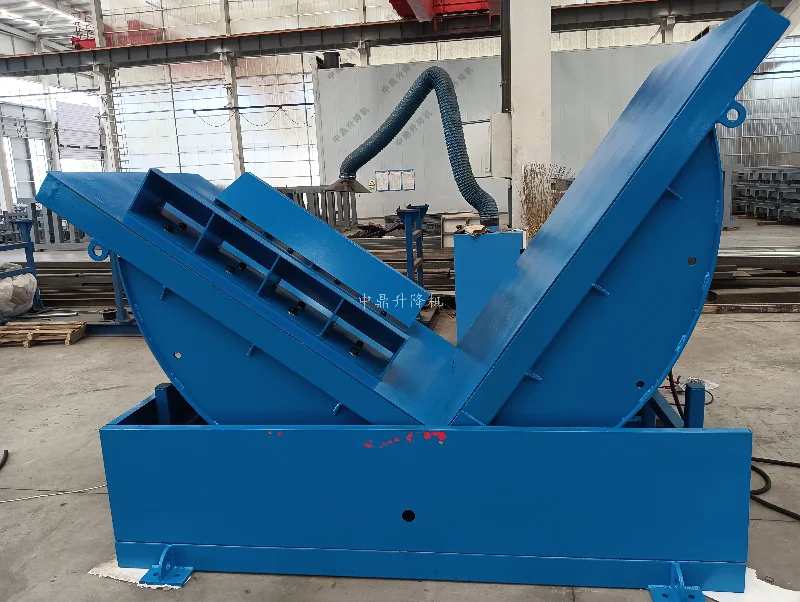

The 90-degree mechanical gear flipping machine, also known as a chain flipping platform, is a specialized equipment designed for lifting and flipping heavy-duty workpieces such as molds, castings, and mechanical components.

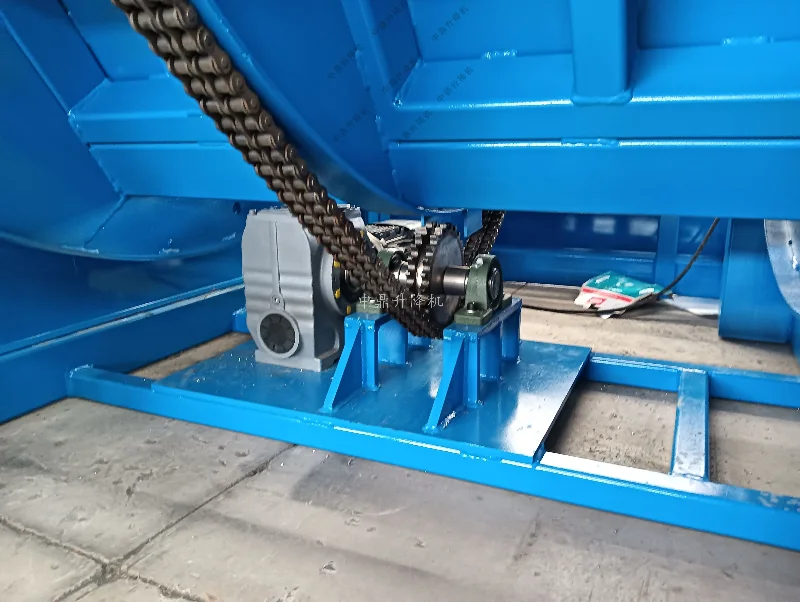

Utilizing a high-strength chain transmission system, it ensures precise and stable handling of loads up to 10 tons. With support for electric, hydraulic, or pneumatic drive systems, this device offers flexibility and reliability for various industrial applications, including manufacturing, maintenance workshops, and logistics.

Basic Parameters

ItemSpecification
Maximum Load Capacity10 tons
Flipping Angle Range0-90° or 0-180° (user-selectable)
Drive OptionsElectric, Hydraulic, or Pneumatic
Safety FeaturesLimit switches, overload protection, emergency stop buttons
Additional FeaturesBuffer devices, stabilization systems, modular design

The Challenge

Handling heavy and bulky workpieces traditionally requires multiple pieces of equipment or manual labor, leading to inefficiencies, safety risks, and potential damage to materials.

Conventional methods often lack precision in angle control, stability during operation, and adaptability to diverse industrial environments.

Solutions

High Load Capacity: Supports up to 10 tons, enabling efficient handling of medium to large workpieces.

Precision Angle Control: Allows accurate flipping within 0-90° or 0-180° ranges, catering to specific operational needs.

Versatile Drive Systems: Offers electric, hydraulic, and pneumatic options to suit different site conditions.

Enhanced Stability: Equipped with buffers and stabilization mechanisms to prevent swaying or damage during operation.

Safety Assurance: Integrates multiple protective features to ensure operational safety for both equipment and personnel.

Modular Design: Provides flexibility for customization based on user requirements.
