Explore the engineering behind our advanced Core Flipping Station. This technical deep-dive explains how its automated design enhances safety and efficiency in 3D transformer core assembly, eliminating manual handling.

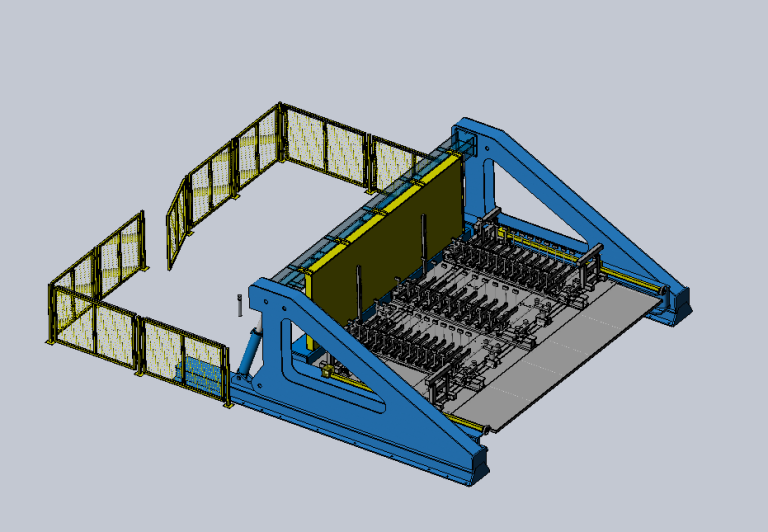

The Hydraulic Iron Core Tilting Table System is a specialized industrial solution designed for the assembly, turning, and vertical positioning of large transformer cores, including two- and three-column configurations.
It integrates a hydraulic tilting platform, stacking platform, motorized lifting support, and auxiliary tooling to streamline transformer manufacturing processes
Efficient space utilization: The compact C-shaped track design can be installed along the plant column, saving valuable production space.
Precise material positioning: Using a servo control system, the positioning accuracy can reach ±1mm.
Super load capacity: The heavy-duty design can carry more than 2 tons of materials for smooth lifting.
Intelligent interconnection: Supports docking with the MES system to achieve digital management of production logistics.
