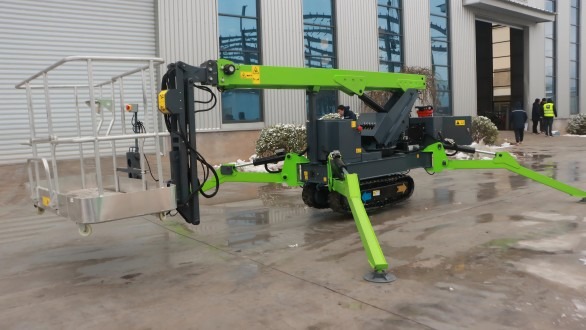

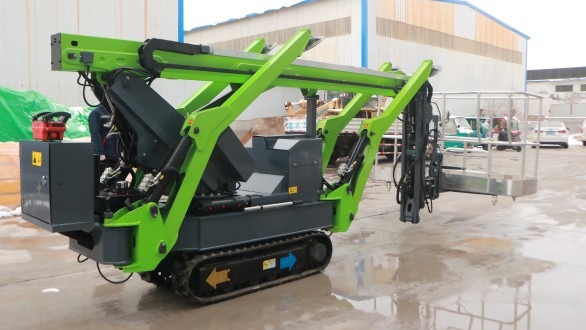

G-S10C 10-метровый гусеничный подъемник с паучьей стрелой
10m|200kg|Superior Stability|Rough Terrain Adaptation
With a 10m platform height and 12m working height, this crawler spider boom lift offers excellent maneuverability in confined spaces. Its telescopic boom with a jib arm ensures flexible operation, while the 360° rotating turntable and ±80° rotatable aluminum platform enhance adaptability. The ultra-narrow chassis and high-durability tracks provide superior access and stability. Equipped with a turntable control box and CAN bus technology, it ensures efficient operation and fault diagnostics. Ideal for construction, maintenance, and tree trimming.
G-S10C 10-метровый гусеничный подъемник с паучьей стрелой
Модели и характеристики
Технические характеристики | |
Макс. Рабочая высота | 10m |
Макс. Высота платформы | 8m |

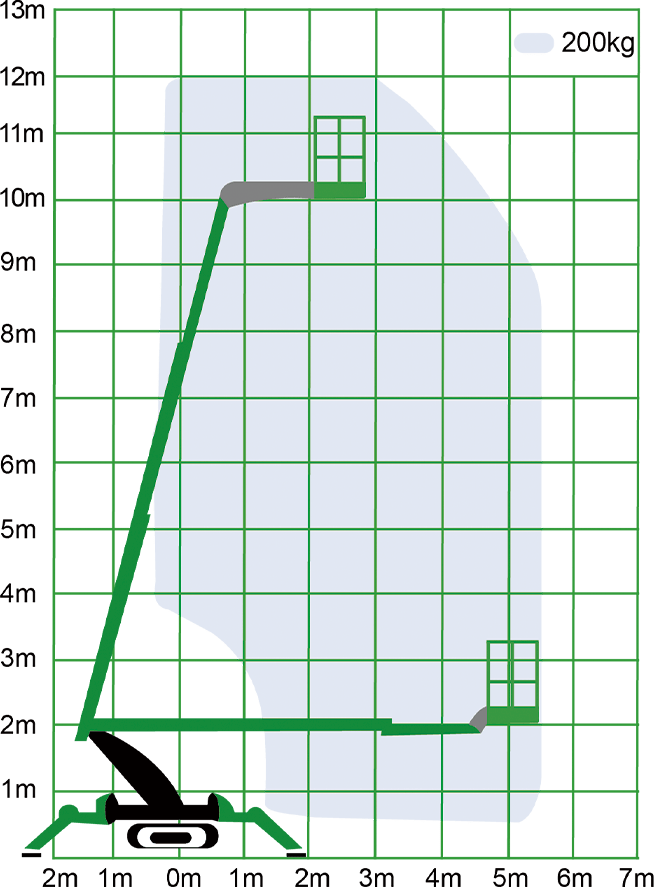

Макс. Рабочий радиус | 5m |
Размеры платформы | 0.9*0.7*1.1m |
Ⓐ Length- stowed | 4.7m |
Ⓑ Width-stowed | 0.75m |
Ⓒ Height-stowed | 1.9m |
Ⓓ Outrigger Footprint Length | 4m |
Ⓔ Outrigger Footprint Width | 2.6m |
Производительность | |
Lift Capacity | 200 кг |
Platform Occupancy | 2 |
Platform Rotation | ±80° |
Jib Rotation | -90°-0 |
Turntable Rotation | 355° |
Drive Speed- stowed | 1.5km/h |
Gradeability | 25% |
Max. Working Angle | 10° |
Вес | 1720kg |
Мощность | |
LFP Battery | 48V/230Ah |
Двигатель насоса | 4.5kw |
Напряжение управления | 12V |
Driving motor | 2.5kw |
Charger | 48V20A |
Hydraulic oil tank | 20L |
