7.3.2025 / 5-minute read
Continuous Parcel Lift | 4000 pcs/hr Sorting System | Zero-Damage Vertical Conveyor | AS/RS Integration
Обзор

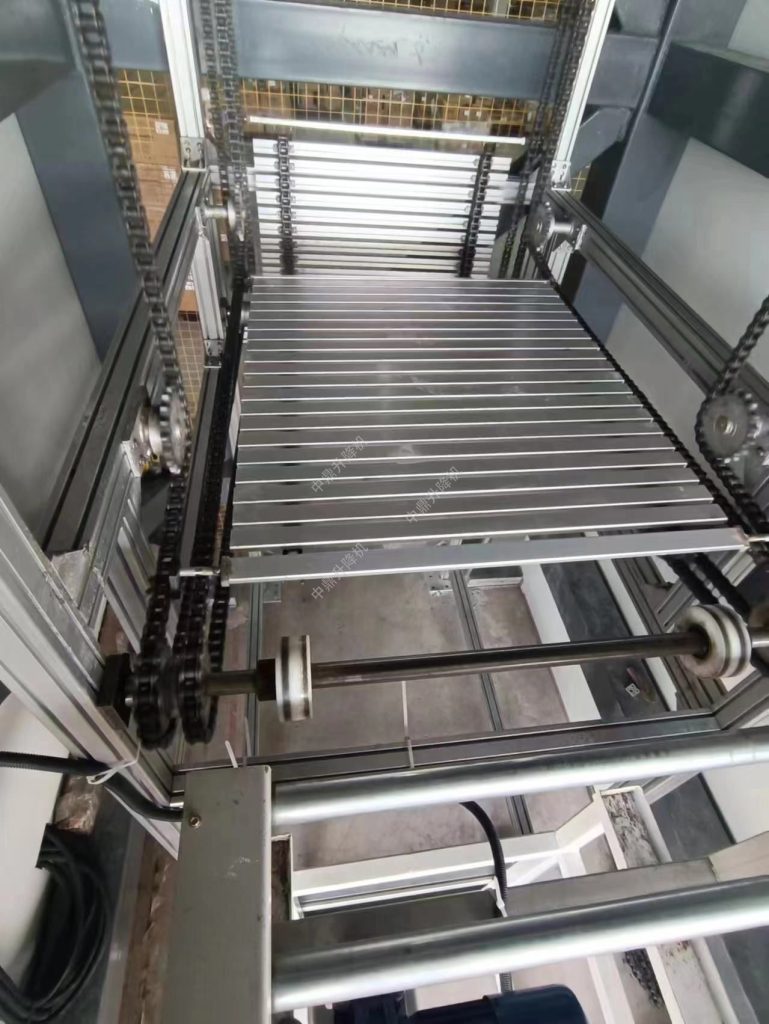

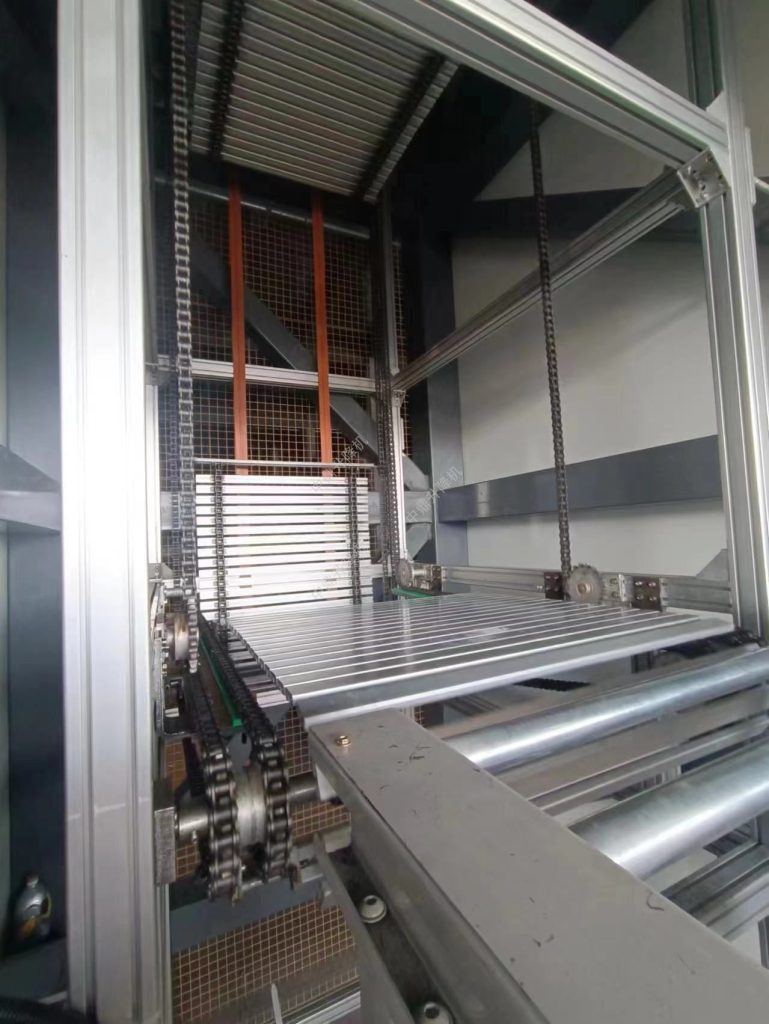

Continuous vertical conveyor engineered for express logistics hubs. Features multi-stage synchronous belt/roller drive for gap-free parcel transport:
- 24/7 Operation: VFD motors + AI scheduling (≥4000 pcs/hr peak)
- Zero-Impact Transfer: Dynamic buffer guides (spacing control ±5cm)
- Size Adaptability: Handles 500-1200mm parcels (5-30kg)
- Smart Sorting Integration: Barcode/RFID scanning with real-time routing
Основные параметры
| Технические характеристики | Значение |
|---|---|
| Capacity | 3000-4000 pcs/hr |
| Parcel Size | L:500-1200mm |
| W:300-800mm | |
| Max Load | 30kg/piece |
| Скорость | 0.8-1.5m/s |
| Power | 5.5kW/level |
| Noise | ≤65dB(A) |
Вызов
- Throughput Limit: Batch-type lifts cause idle time (peak＜2000 pcs/hr)
- Parcel Damage: Free-fall transfers＞0.5% breakage rate
- Mis-Sorting: Dynamic barcode scan accuracy＜95%
- High Energy Waste: Conventional models＞10kW power consumption
Решения
- 2x Efficiency: 200% faster than batch lifts
- Cost Saving: ＜0.1% damage rate, 50% labor reduction
- Smart Ready: WCS integration with sorting robots
- Быстрое развертывание: Modular assembly (72hrs setup)
Преимущества
- Intrinsic Safety:
- Dual brakes + FOPS/ROPS certified cabin (10t impact resistance); 90% accident reduction.
- Операционная эффективность:
- 30% faster loading via three-sided access (cycle time ≤15 sec/unit).
- Extreme Environment Ready:
- Temperature range: -30°C to +40°C; Class 1000 cleanroom compatible.
- Durability:
- Q345A steel mast + roller bearing transmission (100,000-hour lifespan).
Application Scenarios
- Regional Hubs: Integrate with cross-belt sorter
- Airport Terminals: Connect security scanners
- E-commerce Warehouses: Sync with put-wall systems
- Last-Mile Stations: Compact multi-level sorting
