28.5.2025 / 6 minute read

Грузовой подъемник AGV для пожарной команды | 2000 кг автоматизированный складской лифт

Обзор проекта

This automated goods lift is engineered for seamless integration with AGVs in unmanned warehouse environments, enabling hands-free transportation of goods. Designed for the Fire Brigade Headquarters, it supports:

  • AGV Autonomy: AGVs retrieve goods, enter the lift, and trigger automated door/lift operations.
  • Zero Human Intervention: Operators manage workflows remotely from offices.
  • Synchronized Protocol: AGV-lift communication ensures door control and lift activation.

Основные параметры

Product ModelSJD2-15
Размер платформы (мм)2000 x 1500 x 2200
Required Space Size (mm)According to pit drawing
Docking Stations3 stations, 3 stops
Maximum Lifting Height (m)10
Minimum Height of Lifting Platform (mm)120 (flush with ground when installed in pit)
Pit Depth (mm)200
Entry/Exit Method
Скорость подъема4-6 м/мин
Maximum Load Capacity (kg)2000
Power Supply380V / AC / 50Hz
Hydraulic UnitOriginal product from Zhongding, complete hydraulic system
Система приводаHydraulic drive
Operation MethodDigital button control, automatic stop at designated floors
Overload ProtectionOvercurrent relay control
Finish ColorMid-gray or blue
Operating EnvironmentSuitable for indoor and outdoor use
Operating Temperature-20°C to 60°C
Способ установкиShaft installation
External Control Device1) Automatic control
2) External control box installed near upper and lower stop levels; no control box on the platform
Emergency StopPressing the emergency switch can control machine operation.
Manual OperationManual hydraulic valve can be opened or platform can descend manually by rotating the screw.

Вызов

  • Unmanned Efficiency: Eliminate manual handling in high-volume logistics.
  • AGV Integration: Synchronize lifts with AGV navigation and loading protocols.
  • Соблюдение требований безопасности: Ensure fail-safe operations for heavy cargo (up to 2000kg).
  • Harsh Environment Resilience: Operate in -20°C to 60°C indoor/outdoor conditions.

Решения

Automated AGV-Lift System

  • Communication Protocol: AGV signals trigger door opening/closing & lift activation.

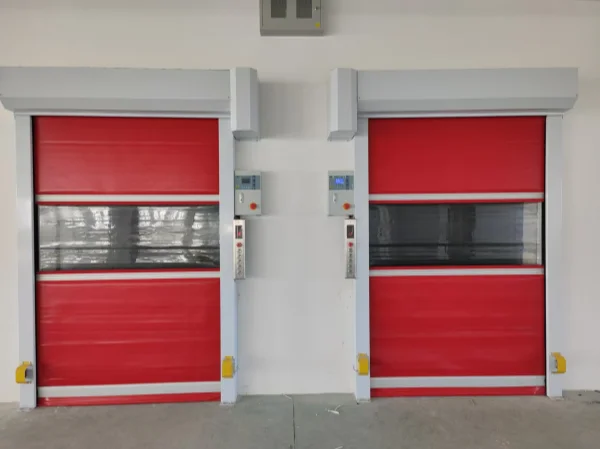

  • Fast-Acting PVC Door: Accelerates loading cycles.
  • 3-Station Docking: Flexible multi-floor access.

Robust Hydraulic Design

  • Zhongding Hydraulic Unit: Original system with 380V/50Hz power.
  • 4-6 m/min Speed: Balanced efficiency and stability.

Safety Engineering

  • Overload Lock: Halts operation if load >2000kg.
  • Cylinder Lock Device: Prevents free-fall during hose rupture.
  • Emergency Descent: Manual valve/screw operation during power failure.

Преимущества

FeatureBenefit
Full Automation24/7 unmanned operation; remote office control.
AGV SynchronizationSeamless signal communication reduces cycle time by 30%.
Эффективность использования пространства120mm min. platform height (pit installation); 200mm pit depth.
Extreme ResilienceOperates at -20°C~60°C indoors/outdoors.
Zero-Downtime SafetyQuadruple protection: overload lock, cylinder lock, emergency stop, manual descent.
Low MaintenanceOriginal Zhongding hydraulic system + digital control ensures longevity.

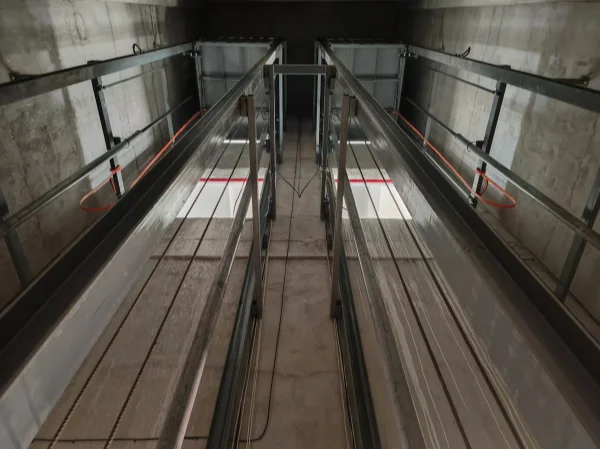

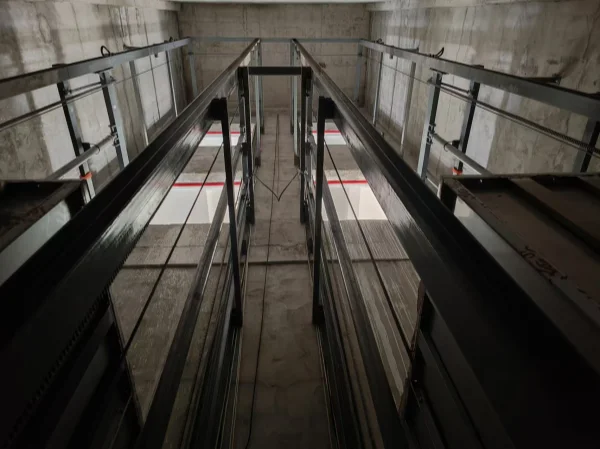

Галерея
