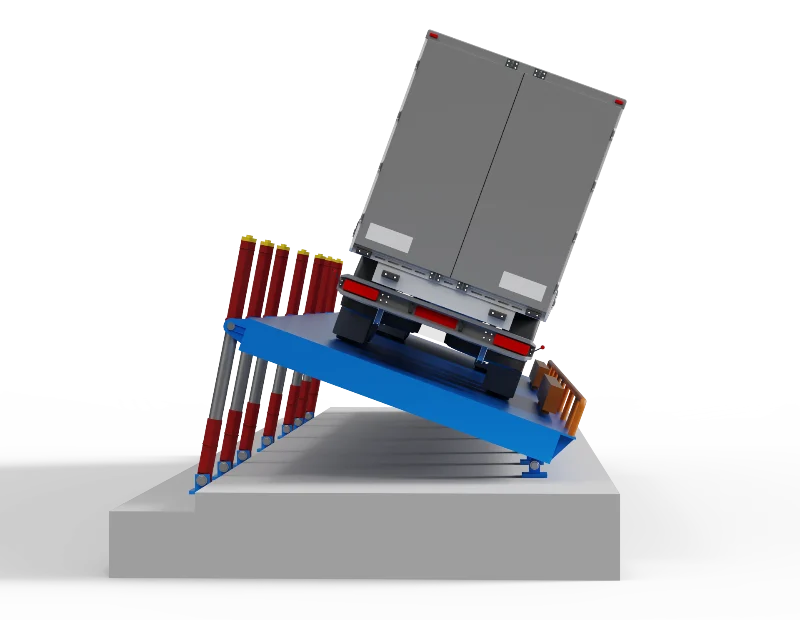

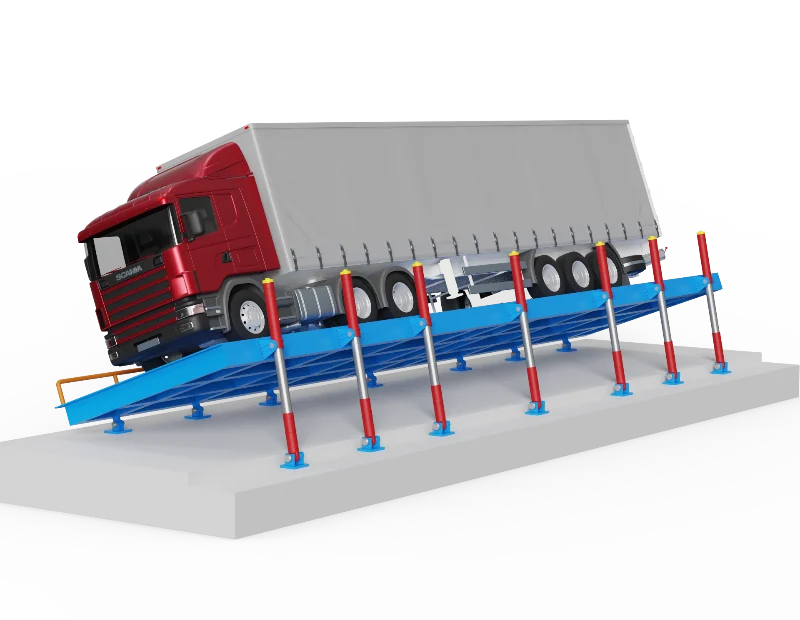

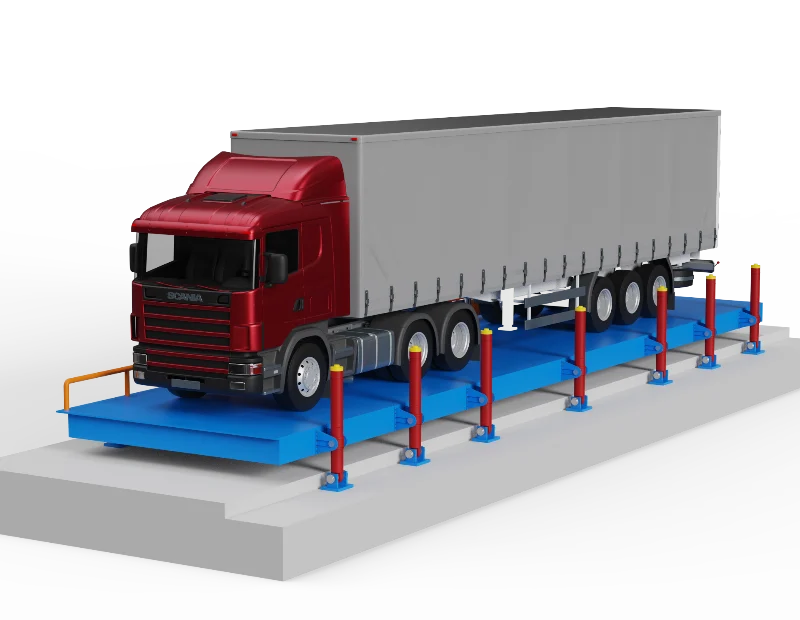

Heavy-Duty Lateral/Side-Tilting Tilters
Heavy-Duty Lateral/Side-Tilting Tilters deliver precision flipping for trucks, machinery, and oversized loads. Engineered with robust hydraulic systems and safety interlocks, they optimize maintenance efficiency by rotating equipment up to 90° laterally. Ideal for workshops, logistics hubs, and manufacturing plants requiring secure, space-saving material handling solutions.
To find out more talk to our team
Specification
| Parameter | Value |
|---|---|
| Max Capacity | 10-50 tons (customizable) |
| Tilt Angle | 0° to 45° continuous control |
| Platform Size | 3m x 8m (LxW, standard) |
| Power Source | Hydraulic / Electric Hybrid |
| Safety Lock | Dual-valve hydraulic brake |
| Control Mode | Remote pendant + Emergency stop |
Features
✅ Precision Hydraulic Control
- Dual-pump system with proportional valves for 0.1° tilt accuracy
- Load-sensing flow compensation (up to 50 tons)
✅ Robust Structural Design
- Reinforced Weld-Free Monocoque frame (ASTM A572 steel)
- Replaceable wear plates on pivot points
✅ Advanced Safety Systems
- Triple interlock: overload sensor + angle limiter + hydraulic hold valve
- Grounding ports for static discharge (ISO 20244 compliant)
✅ Smart Operation
- IoT-enabled: Remote diagnostics via HMI touchscreen
- Auto-return to neutral position with one-touch
✅ Efficiency Optimized
- Fast-cycling hydraulic system (90° flip in ≤45s)
- Energy-recovery during descent
✅ Adaptive Configuration
- Pit-mounted / surface-installation options
- Modular deck sections with T-slot tie-downs
Options & Accessories
▸ Specialized Tooling
- Adjustable truck axle cradles (CE certified)
- Rotating vacuum pads for glass/panel handling
▸ Automation Packages
- Programmable flip sequences (up to 99 presets)
- RFID-triggered auto-positioning
▸ Environmental Kits
- Explosion-proof motors (ATEX Zone 1)
- Sealed hydraulic units for marine use
▸ Ergonomic Upgrades
- Wireless pendant with emergency stop
- Anti-glare 10″ color HMI display
▸ Maintenance Solutions
- Hydraulic filtration monitoring system
- Quick-disconnect power units
▸ Mobility Systems
- Air-caster relocation kit (5-ton capacity)
- Trailer base with hydraulic self-leveling
