Fully Automatic Heavy-Duty Flipping Platform: A Safe and Efficient Solution for Refrigeration Equipment Rotation

Project Overview

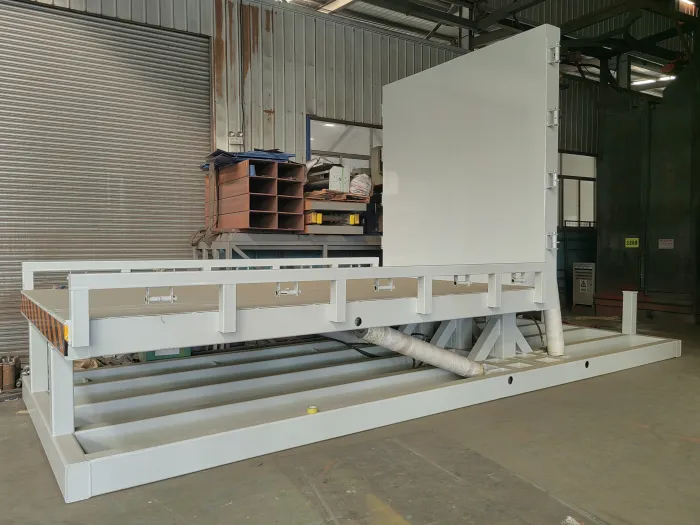

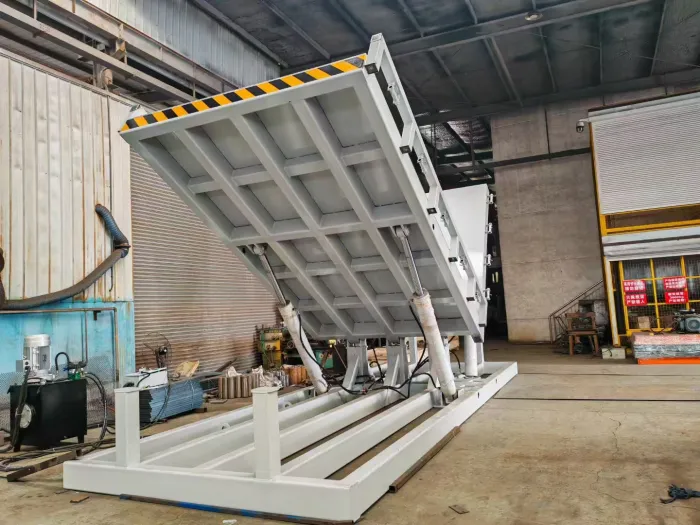

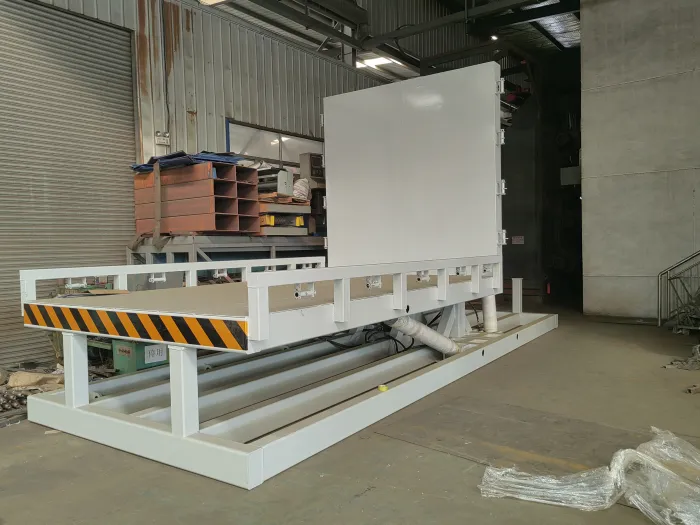

This flipping platform is designed for 90-degree rotation of heavy refrigeration equipment, replacing manual crane operations.

It utilizes automated hydraulic drive and multi-layer safety systems to achieve efficient and stable posture adjustment.

Equipped with guardrails, rope tensioners, emergency stop, overload protection, and anti-burst valves, it ensures full-process safety for both ground and pit installations.

Basic Parameters

Feature	Specification
Model	FZPT-15000
Table Dimensions	5000×3000mm + 3000×3000mm (Double-sided 150mm High Guardrail + Tighteners)
Max. Load Capacity	15000Kg
Tilting Angle	90 degrees
Tilting Speed	60-100 seconds/cycle
Paint Color	Light Gray (Acceptance Standard)
Installation Method	Ground Installation / Pit Installation
Core Safety Devices	Emergency Stop Button, Overload Overflow Valve, Cylinder Explosion-Proof Valve, Phase Failure Protection Relay

도전 과제

Low stability leading to equipment slippage or tipping;
Inefficient manual fastening relying on operator skill;
Potential hydraulic failures causing sudden drops during heavy-load operations.

솔루션

Automated Hydraulic Control: Precise 90-degree rotation with adjustable speed, eliminating human error;
Physical Safeguards: Side guardrails and tensioners to prevent lateral movement;
Quad-Layer Safety: Emergency stop, overload protection, anti-burst valves, and phase-loss protection for instant shutdown in emergencies;
Modular Design: Compatible with ground or pit installations for flexible deployment.

장점

Safety: Dual hydraulic protection (anti-burst valve + relief valve) with emergency stop response <0.5s;
High Efficiency: 15,000Kg load rotation within 100 seconds, improving productivity by 50%;
Adaptability: Expandable dual-platform design for large-scale equipment;
Durability: Industrial-grade hydraulic system and IP54 rating for harsh environments.
