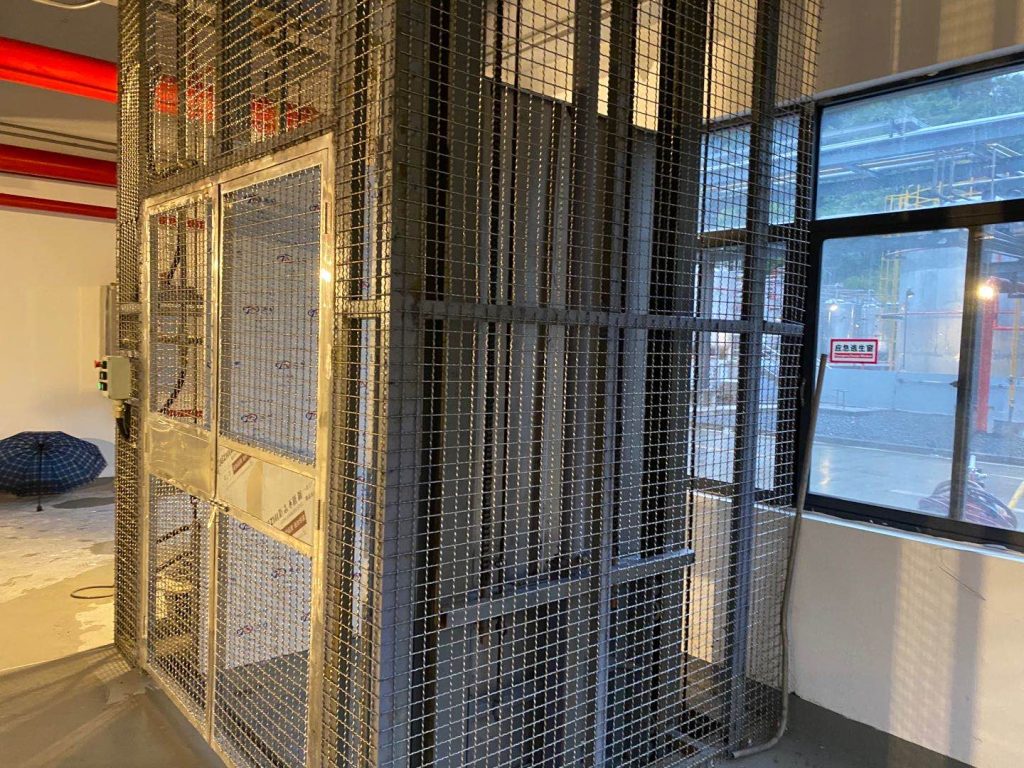

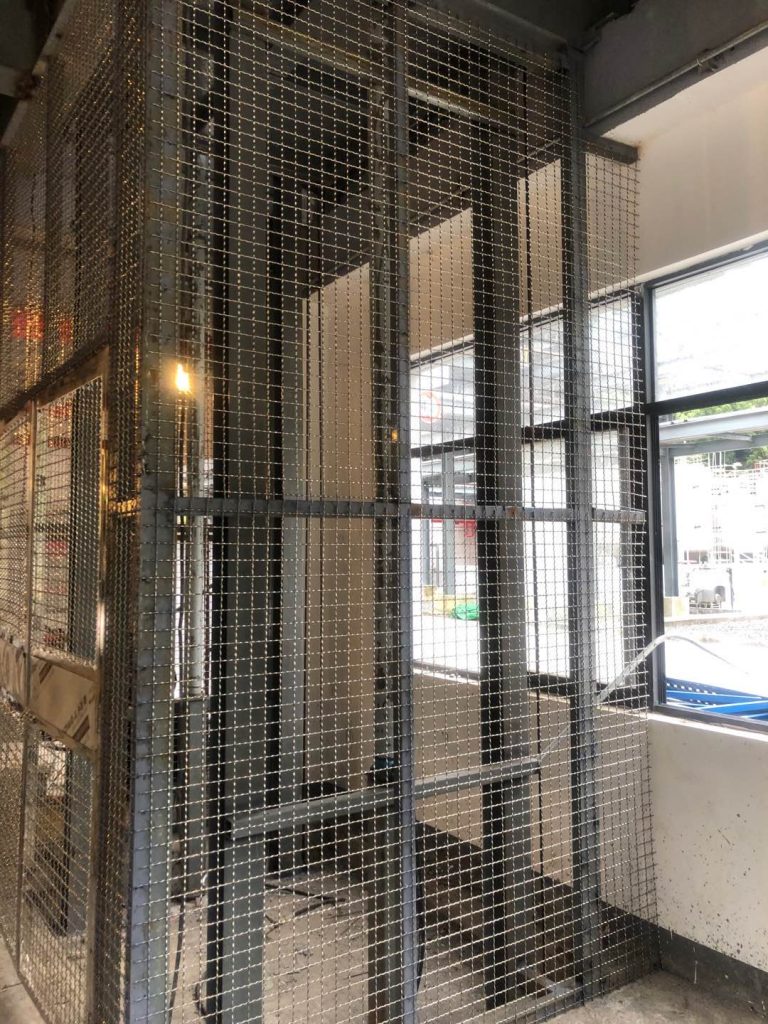

향신료 공장용 방폭형 강철 메쉬 화물 엘리베이터 - 3-스톱 소형 산업용 리프트

개요

This medium-duty freight elevator (3000kg capacity) operates vertically across 3 fixed stops.

The structural frame utilizes Q235B carbon steel, with exterior cladding of 304 stainless steel mesh.

The drive system features an IP54-rated motor that meets IEC 60079-10-1 standards for explosive atmospheres.

매개변수	설명
Type	Medium Cargo Lift
Installation Type	Wall-mounted, no pit required
정류장 수	3
부하 용량	Customizable, up to 3 tons
리프팅 높이	Customizable, up to 10 meters
Drive Method	유압 드라이브
플랫폼 크기	Customizable dimensions
안전 기능	Overload protection, emergency stop button
전원 공급 장치	220V / 380V (customizable)
제어 시스템	Push button or remote control options
재료	Carbon steel frame with anti-corrosion coating
속도	Adjustable, typically 0.1-0.3 m/s
Usage Environment	Indoor, suitable for spice processing facilities
Environment Protection	IP54 rating for dust and moisture resistance
Temperature Range	Operating in ambient temperatures of 0°C to 40°C
Vibration Control	Anti-vibration mounts for stable operation
Cleaning Features	Easy-to-clean platform surface with drain holes
Noise Level	Low noise operation, ≤ 60 dB
Control Panel	User-friendly interface with safety indicators
Maintenance Access	Removable panels for easy service access
Safety Guards	Side and rear safety guards to prevent accidents
Emergency Power	Backup battery for emergency operation
Weight Sensors	Integrated weight sensors for load monitoring
Custom Branding	Option for custom branding on the lift platform

Explosion Hazard: Combustible dust clouds (D90 particle size <60μm, MIE <10mJ)
Containment Requirement: ≤0.1% particle leakage rate for <500μm materials
공간 제약: Hoistway footprint ≤1.5m², overhead clearance ≤3.2m
Corrosion Resistance: Required CR5 rating per ISO 12944-6

Explosion Protection Triad
- Intrinsically safe controls (Ex ib IIC T4)
- Pressure-relief vents (activation @ 15psi)
- Equipotential bonding (<0.1Ω resistance)
Containment System
- Laser-fused mesh screen (open area ratio ≤15%)
- Magnetic door seals (leakage <20 CFM)
Space-Optimized Drive
- Permanent magnet synchronous gearless machine (η>92%)
- Integrated rail system (T75-1/B profile)
Surface Protection
- Epoxy-zinc primer (DFT 3.2mil)
- ASTM A193 B8M fasteners
