Plataformas telescópicas eléctricas G-J20 20m

20m｜300kg｜Long-reach｜straight-line｜high-stability

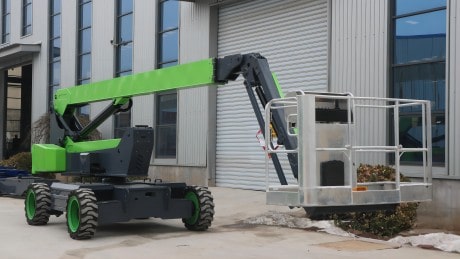

G-J20 Electric Telescopic Boom Lifts, designed for superior height and reach in your most challenging aerial projects. Unlike Articulating Boom Lifts, which offer flexibility around obstacles, the G-J20 features a straightforward, extendable arm ideal for direct vertical and horizontal access. With a remarkable maximum working height of 21.6 meters, the G-J20 excels in construction, maintenance, telecommunications, and other tasks where maximum height is crucial. Check out the specifications below to see how the G-J20 Telescopic Boom Lifts can boost your efficiency and performance in high-reach applications.

SOLICITAR PRESUPUESTO

Plataformas telescópicas eléctricas G-J20 20m

Modelos y especificaciones

Especificaciones
Máx. Altura de trabajo21.6m
Max. Altura plataforma19.6m
Máx. Radio de trabajo14.5m
Dimensiones de la plataforma1.8*0.75m
Ⓐ Length（stowed）10.3m
Ⓑ Width（stowed）2.49m
Ⓒ Height（stowed）2.26m
Ⓓ Wheelbase2.5m
Distancia al suelo - centro0.32m
Peso9100kg
Productividad
Máx. Capacidad de elevación300 kg
Número de ocupantes del andén3
Rotación de la plataforma±80°
Rotación del plato giratorio360° Continuous
Jib rotation (up/down)±70°
Velocidad de marcha - replegado4,8 km/h
Gradeabilidad - estibado45%
Max. Working angle (Tilt sensor activation)3°
Radio de giro (exterior)5m
Drive and steer mode4*2
Potencia
Batería48V/320Ah
Tensión de control12V
Motor de la bomba12kw
Motor de accionamiento3,3 kW
Opcional
Batería de litioOpcional
Generador Power PlusOpcional

Características

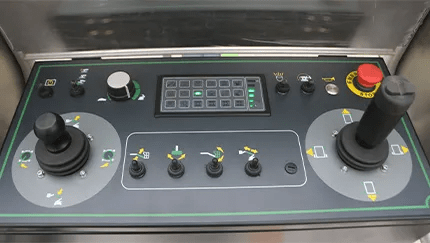

The Bosch Rexroth platform control panel is equipped with proportional joystick controls and an emergency stop button.

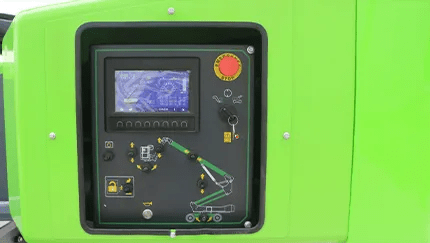

The Bosch Rexroth ground control panel features an IP65 waterproof design and an emergency stop button.

The boom utilizes self-weight lowering technology and a load-sensitive hydraulic system to ensure smooth and energy-efficient operation.

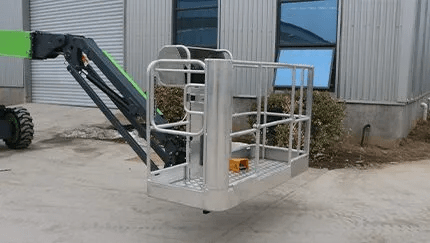

The platform can automatically level itself within a ±80° rotation range.

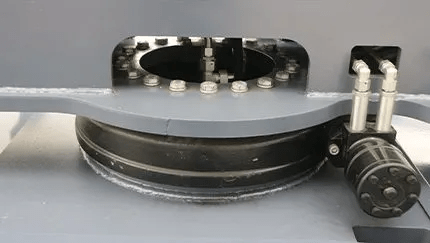

The 360° continuous rotation of the turntable allows the platform to reach worksites with enhanced flexibility.

Advanced four-wheel AC drive technology combined with steering differential control significantly reduces tire wear and motor overload rates.

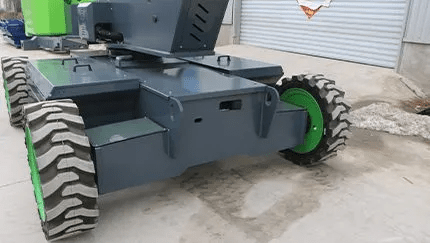

Equipado con neumáticos sólidos, a prueba de derrapes y explosiones con una vida útil más larga, proporcionando un funcionamiento estable y con ahorro de mano de obra.

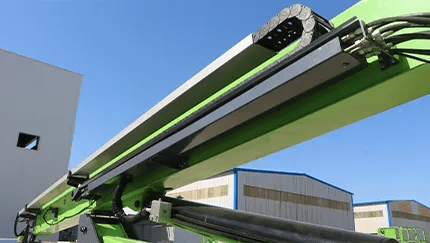

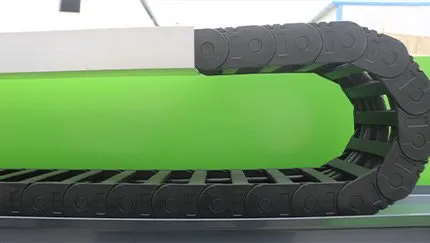

The international brand drag chain of the telescopic boom offers safety protection and guiding capabilities for the cables inside the booms.

Vídeos

18m Electric Telescopic Boom Lift
How to Operate Telescopic Boom Lifts Step by Step Guide

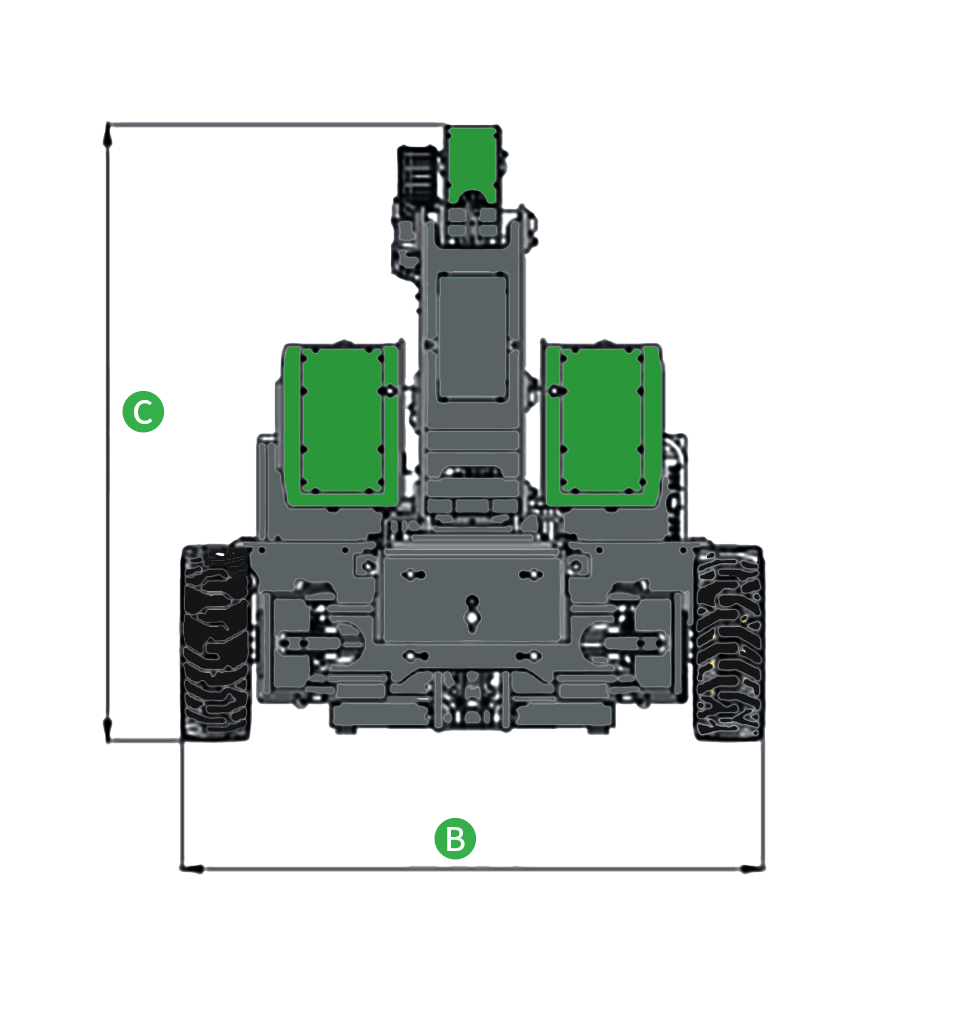

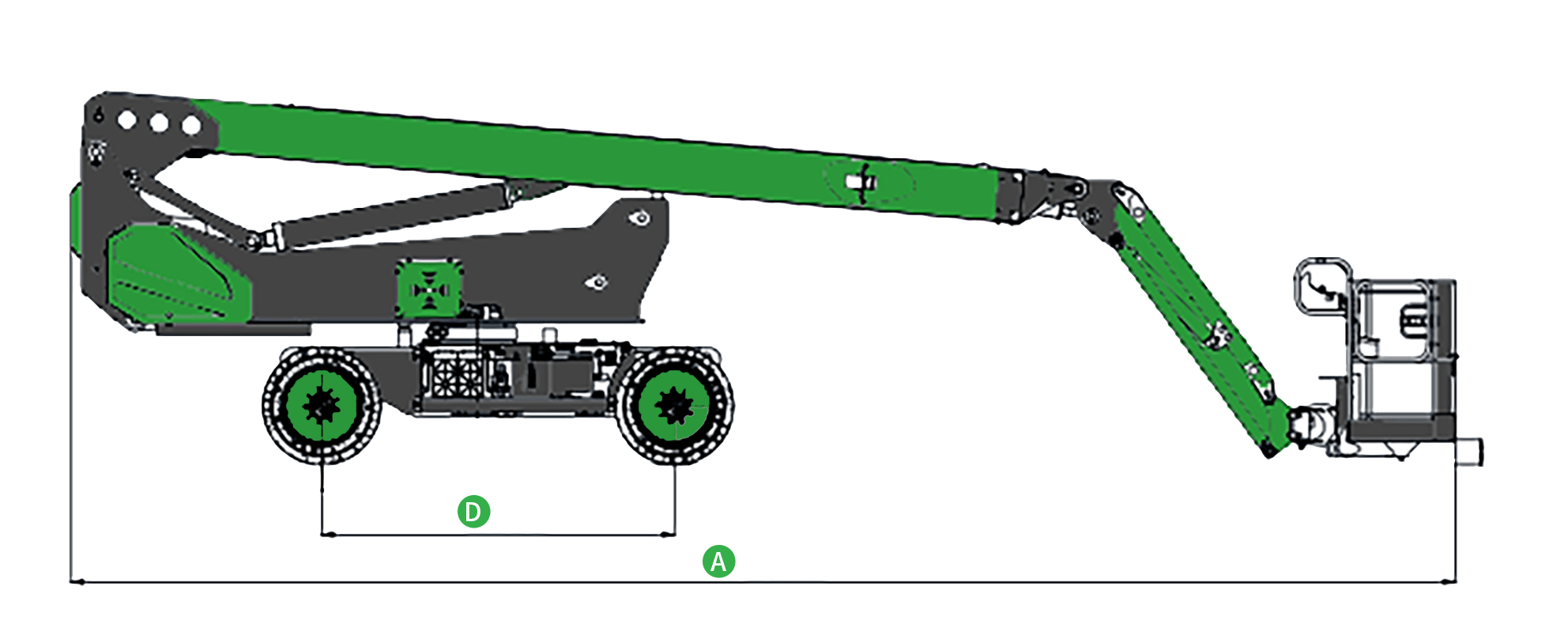

Dimensional Drawing
