Fabricación de automóviles Solución de transporte entre plantas para cargas pesadas - Elevador de vagones de transferencia por raíl guiado
Visión general
Este análisis de caso detalla un guided rail transfer car with integrated lifting platform specifically designed for the automotive manufacturing industry.
By innovatively combining a pit-mounted scissor lift mechanism with a rail system, it effectively addresses the vertical transportation needs of heavy components between different levels or workstations in production lines, enabling seamless transfer of electric transfer cars and significantly improving material flow efficiency.
Parámetros básicos
| Parámetro | Valor/Descripción |
|---|---|
| Lifting Mechanism | Dual Scissor, Synchronized Hydraulic Lift |
| Capacidad de carga nominal | Customizable (Typical 10-50 tons) |
| Max. Altura de elevación | Customizable (Typical 1-5 meters) |
| Tamaño de la plataforma | Customized (Matched to transfer car track gauge) |
| Rail Configuration | Fixed rails on platform, aligned with workshop tracks |
| Sistema de accionamiento | Hydraulic (High-strength precision cylinders) |
| Modo de control | Automatic/Manual, Emergency stop function |
| Surface Treatment | High-quality baking paint, anti-rust & corrosion-resistant |
| Material principal | High-strength manganese steel |
Cómo funciona

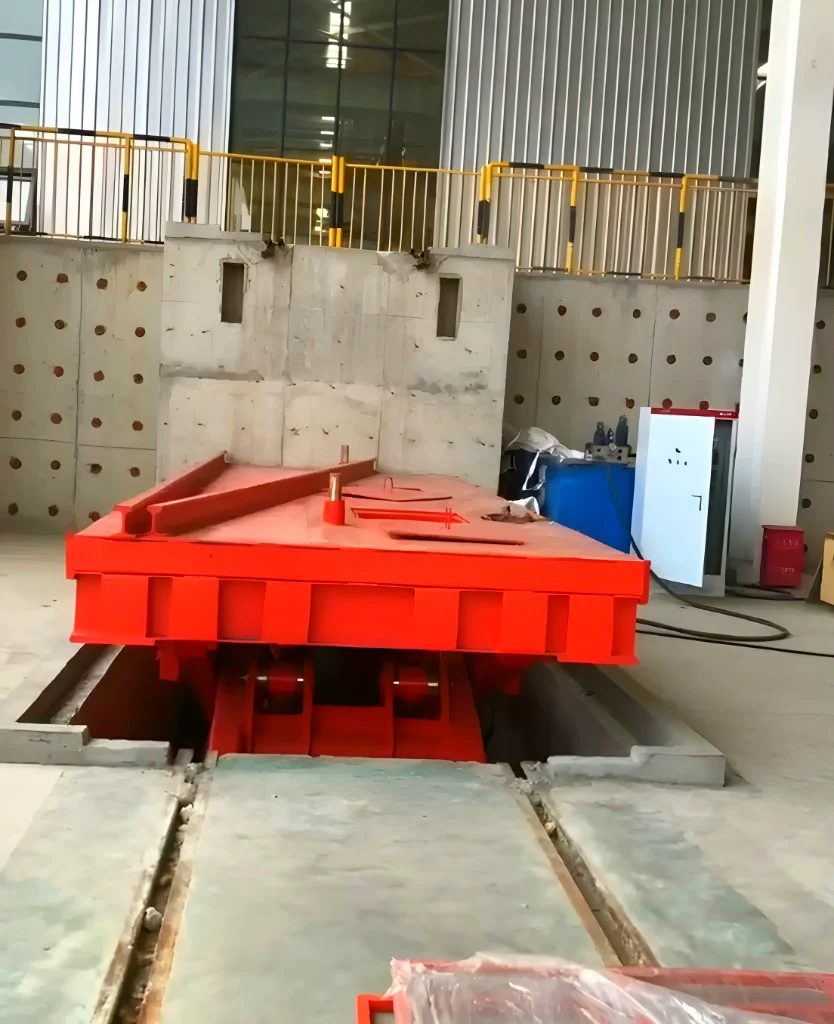

The equipment is installed in a pit, with its platform flush with the factory floor.
When an electric transfer car loaded with automotive parts or a car body drives onto the platform (guided precisely by the integrated rails), the dual scissor mechanisms are synchronously raised by precision hydraulic cylinders, lifting the platform and its load steadily to the target level.
Upon arrival, the transfer car can drive out along the rails, completing the inter-floor material transport.
The entire process is managed by an intelligent control system ensuring synchronization and positioning accuracy.
Los retos
- Cuellos de botella: Traditional methods like elevators or ramps are inefficient and cannot meet cycle time demands.
- Riesgos para la seguridad: Heavy components (e.g., car bodies, chassis) risk shifting or falling during lifting.
- Limitaciones de espacio: Precious floor space is occupied by fixed ramps.
- Docking Accuracy: High precision is required for transfer car docking to avoid jams or impacts.
- Maintenance Costs: Equipment must withstand high-frequency, high-load operation, demanding durability and ease of maintenance.
Soluciones
- Efficient Seamless Transfer: Precision rail alignment allows quick drive-on/drive-off, drastically reducing transfer time.
- High Load Capacity & Stability: Dual scissor structure and manganese steel ensure stable operation under heavy loads and long service life.
- Safety & Reliability: Imported sealing rings prevent leakage; features like power-off protection, emergency stop buttons, and anti-fall measures ensure comprehensive safety.
- Optimización del espacio: Pit-mounted design saves valuable floor space, maintaining a clean and efficient workshop layout.
- Durable Construction: High-quality paint and manganese steel resist oil, corrosion, and reduce maintenance frequency.
