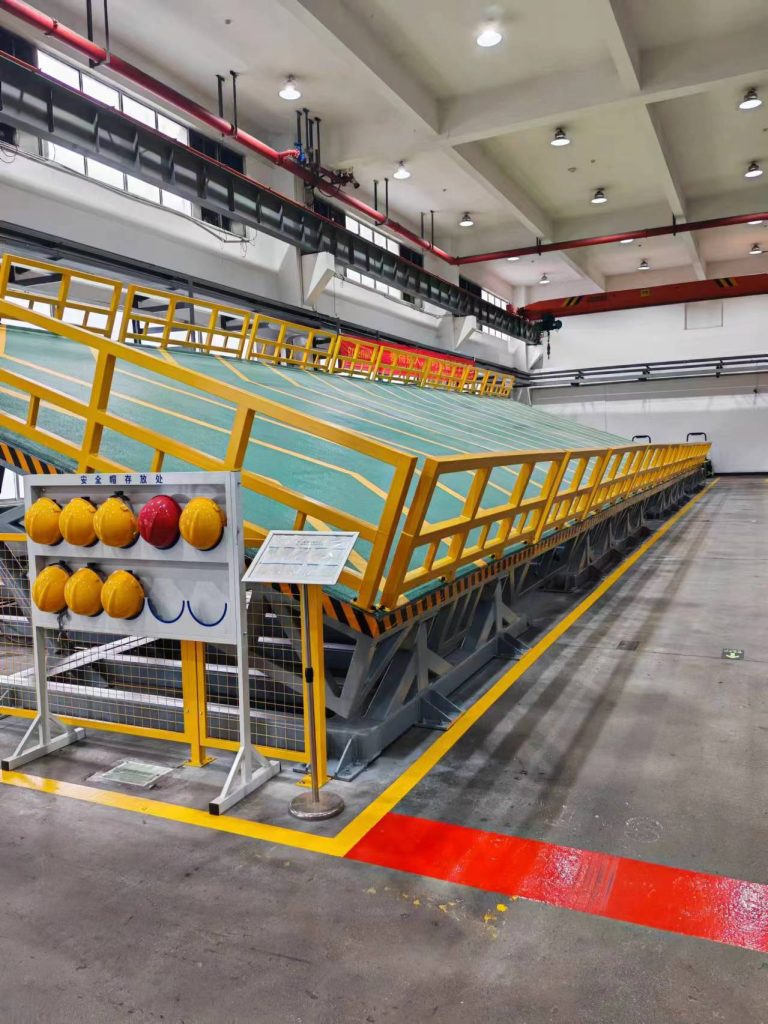

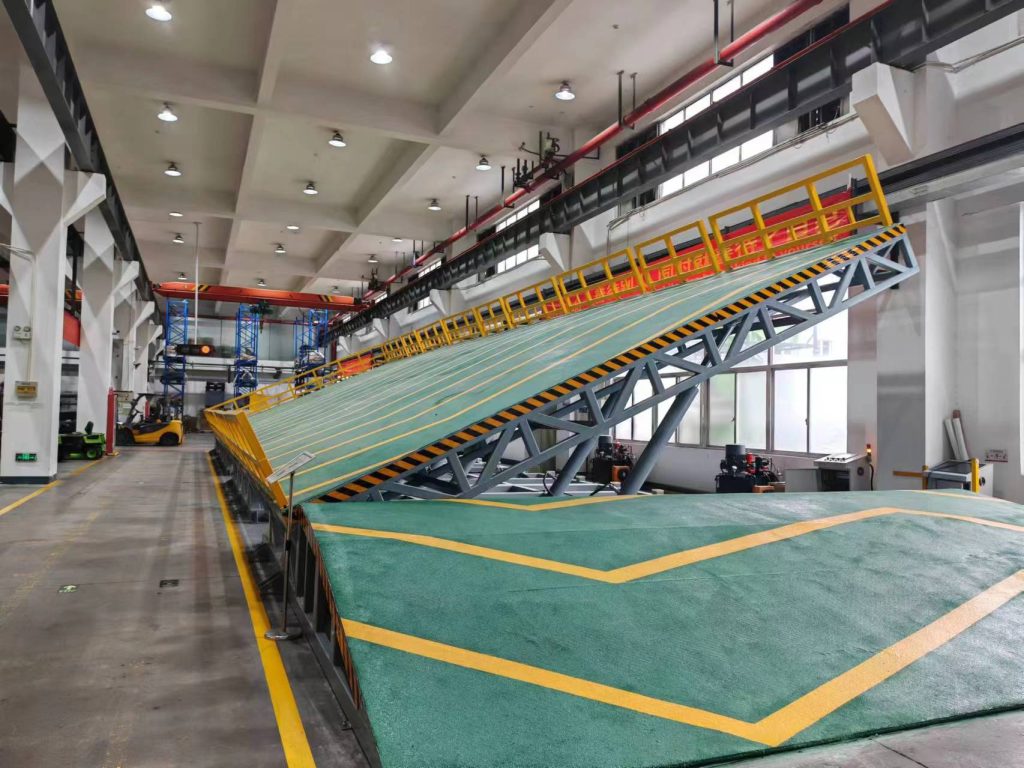

Lateral Incline Test Platform｜0°-25° Tilt｜7m×27m｜Vehicle Cross-Slope Testing

Overview

Lateral Tilt: 0°-25° continuous side incline, max 25° cross-slope
Mega Dimensions: 7m width, 24m tilt section, 27m total length (with 1.5m×2 ramps)
Heavy Load: ≥2-ton capacity (lateral torque load)
Anti-Skid: 16-36 grit textured surface for cross-slope traction
Smart Control: Wireless remote for lateral angle adjustment
Dual Safety: Fixed guardrails + auto-deploy curbs at 25°

The Challenge

Lateral Stability: Prevent 2-ton vehicle skid at 25° cross-slope
Long-Span Deformation: Limit deflection to ≤20mm on 24m span
Dynamic Containment: Instant vehicle slide interception
Synchronization: Real-time wireless control across 27m length

Solutions

1. Torsion-Resistant Frame

24m tilt section with honeycomb steel box girder (deflection ≤18mm)
30° transition ramps at both ends

2. Cross-Slope Traction

Laser-clad 16-36 grit tungsten carbide particles (μ≥0.78)

3. Active Safety

Hydraulic pop-up curbs (150mm height auto-deploy at 25°)
Guardrails withstand 40kN lateral force (ISO 3450:2011)

Advantages

✅ Precision Tilt: 0.5° accuracy via wireless remote, 60s to 25°
✅ Extended Lifespan: WC surface 3x more wear-resistant than steel
✅ Safety Redundancy: Dual slide sensors (response <0.3s)
✅ Modular Expansion: Multi-platform matrix for parallel testing
