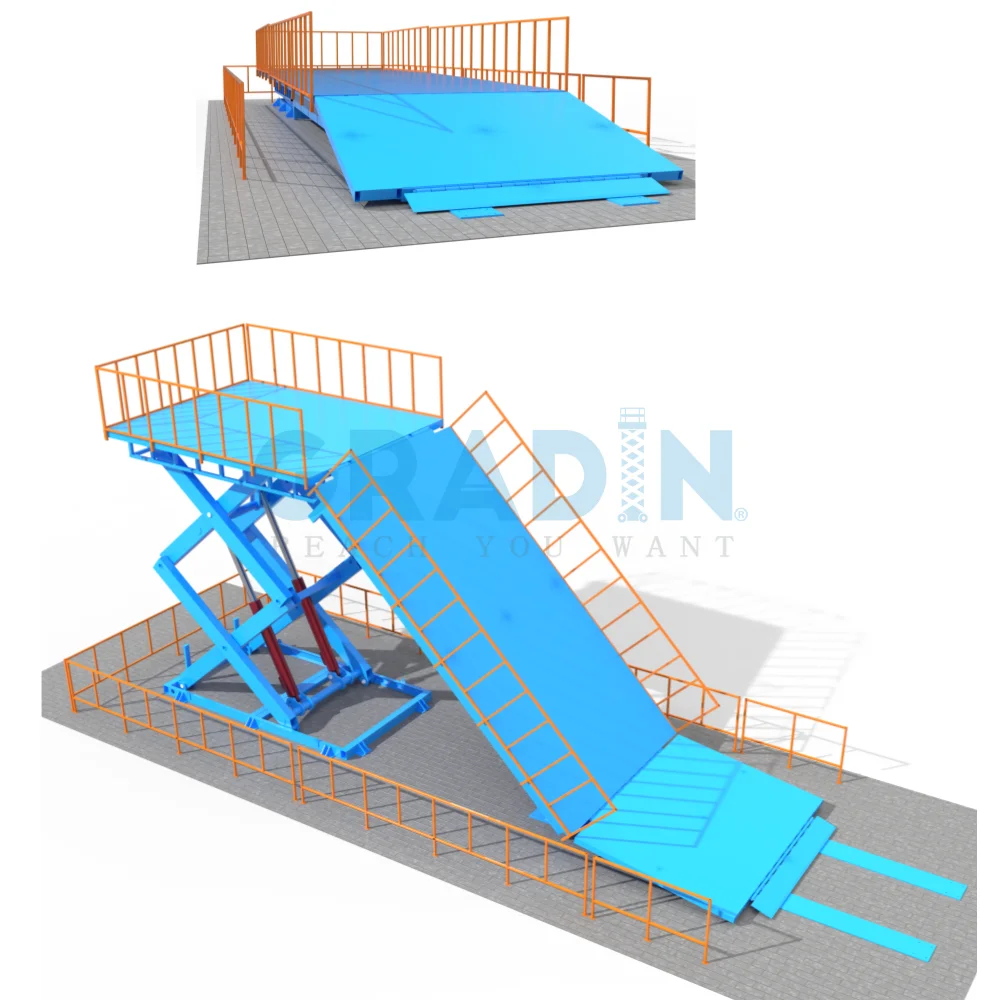

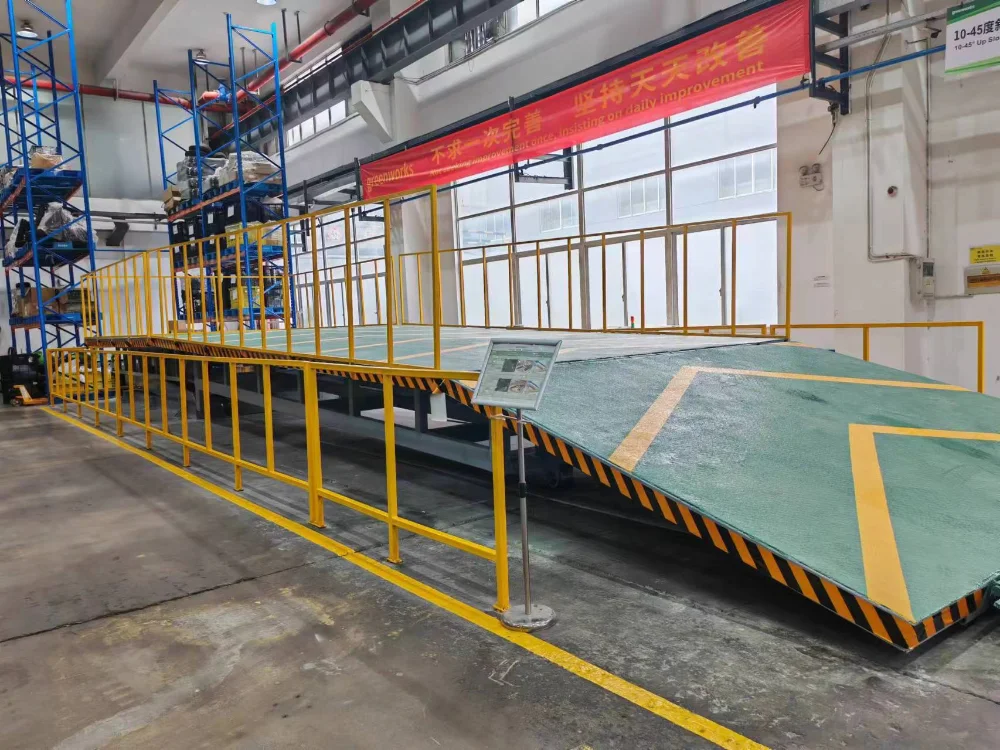

Adjustable Ramp Test Platform｜10°-45° Incline｜2.5T Capacity｜Vehicle Testing Equipment
Overview
Slope Adjustment: 10°~45° continuous tilt, max 45° incline
Dimensions: 5m×4m (L×W) top platform, ≤16m projection length, 6m max height
Load Capacity: Static load ≥2 tons (dynamic testing compatible)
Anti-Slip Surface: 16~36 grit textured slope
Smart Control: Wireless remote for lifting/angle adjustment
Safety Guard: 1.2m high crash-proof guardrails
The Challenge
- Steep Slope Stability: Prevent 2-ton load slippage at 45° incline
- Compact Footprint: Achieve 6m height within ≤16m projection
- Dynamic Durability: Withstand vehicle impact loads during testing
- Operational Safety: Contain vehicles within guardrails during tests
Solutions
1. Reinforced Triangular Frame
- Folding hydraulic struts with angle auto-lock (10°~45°)
- 6m height achieved via truss beams (15.8m projection)
2. Military-Grade Traction
- Slope surface welded with 16~36 grit SiC particles (μ≥0.85)
3. Multi-Layer Safety
- Guardrails withstand 50kN impact (GB 4053.3-2009 compliant)
- Emergency stop + auto-reset on angle overload
Advantages
✅ Precision Control: Angle change in <1min via wireless remote
✅ Heavy-Duty Load: 2.5-ton tested capacity (25% above standard)
✅ All-Weather Use: Traction layer resists -40℃~120℃
✅ Zero Maintenance: Hot-dip galvanized steel + IP67 rating
