4 Post Goods Lift

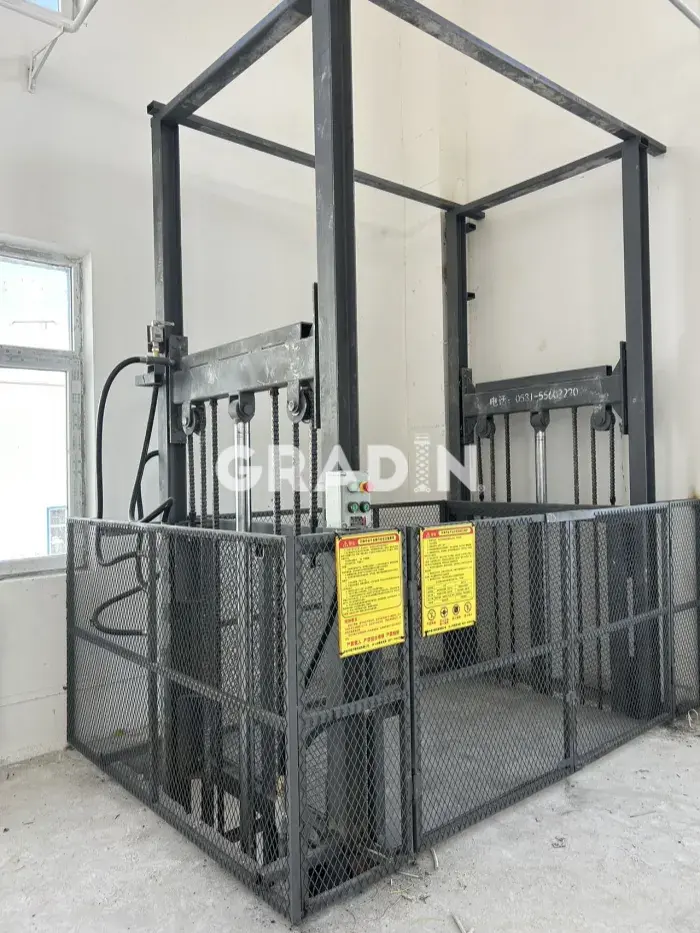

The dual-cylinder four-post cargo lift is a high-stability, high-load-capacity lifting device designed for vertical cargo transportation in warehouses, factories, and logistics centers. It features dual hydraulic cylinder drive and four-rail support, ensuring smooth and reliable operation.
To find out more talk to our team
Specification
Capacity: ≤ 5000kg
Standard Platform Size: 3 * 3m (suit your requirements)
Lifting Height: from 2,500mm
4-8 weeks from order to install
Price: from $3400
Enquire hereFeatures
🔹 Dual-Cylinder Drive: Dual hydraulic cylinders provide strong power, ensuring smooth and reliable lifting.
🔹 Four-Post Rails: High-strength structure increases load capacity and enhances resistance to off-center loads.
🔹 Safety Protection: Equipped with anti-fall devices, limit switches, and emergency stop buttons to ensure operational safety.
🔹 Easy Operation: Supports button control, remote control, and PLC intelligent control for flexible and efficient use.
Enquire here
Options & Accessories
🔹Variety of gate options to suit your operation such as bi fold, concertina, roller shutter or hinge.
🔹Choice of loading pattern.
🔹Options of finish including cladding, galvanising, stainless steel and colours to suit your branding.
🔹One touch latching controls for efficiency.
Enquire hereI would certainly recommend Gradin to any company in a similar situation to us. The responses were quick and detailed from the very first enquiry. The good lift has introduced so many efficiencies into our business processes and I know that over a very short period of time, the lift will have paid for itself both financially and in terms of opportunities for additional business growth.
The Material Handling Equipments in your industry
The Gradin goods lifts can be used to carry pallet loads of finished products or ingredients, or equipment, up and down from a mezzanine floor or second floor. The lift’s platform can be manufactured in stainless steel so it complies with regulations, is non-corrosive and can be washed.
With musculoskeletal injuries in mind, the following is a useful, but not exhaustive, list of situations that commonly arise in the manufacturing and engineering sectors during the production process:
• Repeated manipulation of the load at a distance from the trunk of the body.
• Repeated bending of the trunk to lift the load.
• A very large load that is difficult to grasp.
• Repeated handling of the load above shoulder height or at floor level.
• Lifting that involves twisting of the trunk.
• The load needs to be carried over a long distance through a cluttered or hazardous area.
When manual handling activities involve such risks of injury (particularly to the back) due to unfavourable ergonomic conditions, the basic principle is that the employer must take measures to reduce or eliminate the risk of injury.
The Gradin goods lift is designed specifically to transport standard sized pallets from manufacturing, to and from storage on a mezzanine or first floor. If a standard specification doesn’t tick all your boxes, we also specialise in bespoke configurations, working collaboratively with you to ensure your end solution is perfect for your company, employees and products.
