Revolutionizing Battery Industry Logistics: The Stainless Steel Vertical Reciprocating Conveyor for Heavy-Duty Material Handling
Project Overview

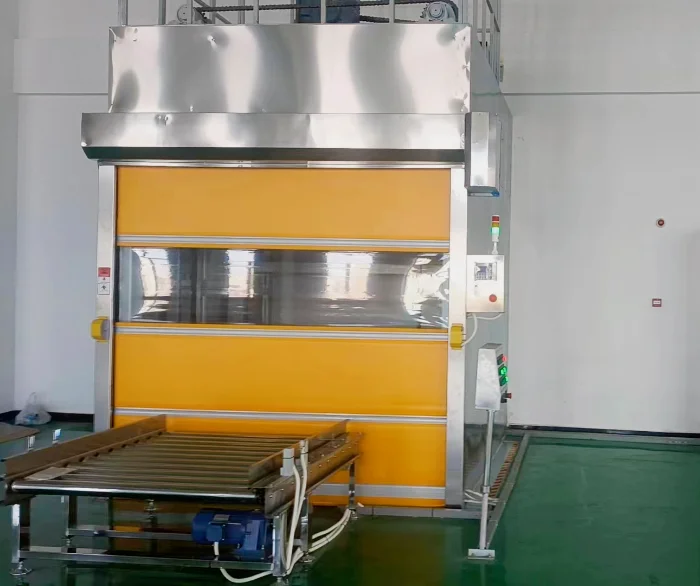

This stainless steel reciprocating elevator is specifically designed for the battery industry, particularly suitable for transporting heavy materials such as bulk bags of battery raw materials. The equipment features a stainless steel enclosure, providing high corrosion resistance and pollution protection, ensuring stable operation in demanding production environments, especially in conditions of humidity, chemicals, or high temperatures.

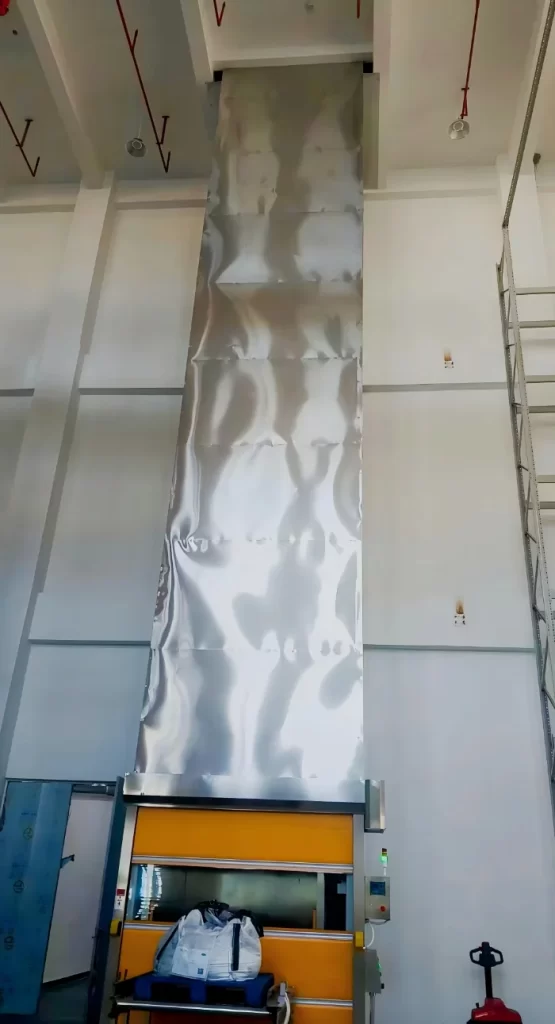

With an efficient roller conveyor system and precise elevator control, this equipment can achieve rapid material transport at a speed of 15 m/min, while accommodating a travel height of up to 16,000 mm to meet the needs of high-rise buildings and multiple work areas. The cabin internal dimensions are L1800 mm × W1800 mm × H2200 mm, providing ample space for transporting bulk bags or other large materials weighing up to 1500 kg. Its high operational efficiency significantly enhances the automation level of the production line, ensuring effective material transport efficiency and safety.
Basic Parameters –
| Equipment Parameters | Description |
|---|---|
| Cabin Internal Dimensions | L1800*W1800*H2200 mm |
| Shaft Dimensions | 2400 (depth) * 3000 (width) mm |
| Entry Direction | 3000 (same direction) |
| Travel Height | 16000 mm |
| Rated Load | 1500 kg |
| Number of Stops | 2 stops |
| Cabin Roller | W1300*L1500*H500 mm, roller diameter 50 mm |
| Elevator Speed | 15 m/min |
| Roller Conveyor | W1300*L1500*H500 mm, roller diameter 50 mm, 2 lines |
| Conveyor Speed | 15 m/min |
| Stainless Steel Enclosure | 304 |
| Rolling Shutter Door | PVC |
The Challenge
Harsh Environments: Exposure to corrosive chemicals, high humidity, and extreme temperatures degrades equipment.
Heavy Loads & High Floors: Moving 1,500 kg+ loads across multi-story facilities demands robust lifting capacity and precision.
Safety Risks: Unstable material handling can damage sensitive battery components or endanger workers.
Efficiency Demands: Slow or unreliable systems bottleneck production lines, delaying throughput.
Solutions
- Stainless Steel Enclosure
- Material: 304-grade stainless steel housing for corrosion, heat, and chemical resistance.
- Design: Sealed structure prevents contamination in wet or dusty environments.
- High-Speed Roller Conveyor System
- Dual Roller Lines: 50mm-diameter rollers at 15 m/min speed ensure rapid, stable material transfer.
- Automated Loading/Unloading: Seamless integration with production line workflows.
- Precision Vertical Lifting
- 16,000mm Travel Height: Multi-floor reach with millimeter-level accuracy for error-free docking.
- Smart Control System: Programmable logic controller (PLC) with one-touch operation and multi-mode adaptability.
- Safety & Durability
- PVC Roll-Up Doors: Protect operators during operation.
- Overload Protection & Emergency Braking: Ensures safe handling of 1,500 kg loads.
Advantages
- Unmatched Efficiency
- 15 m/min lifting speed reduces cycle times by 40%, accelerating material flow.
- Automated roller system eliminates manual handling delays.
- Industrial-Grade Resilience
- Stainless steel construction extends lifespan in corrosive environments (e.g., acid/alkali exposure).
- Minimal maintenance requirements due to high-quality components.
- Precision & Flexibility
- Adaptable to varying floor heights (up to 16m) and load types (ton bags, bulk materials).
- Intuitive interface simplifies operation and scheduling.
- Safety Compliance
- Reinforced structure and fail-safe mechanisms meet global industrial safety standards.
- Anti-slip surfaces and enclosed design prevent accidents.
- Cost Savings
- Reduced downtime and repair costs from durable, low-maintenance design.
- Energy-efficient motors lower operational expenses.
