28.4.2025 / 5 minute read
Lithium-Optimized Vertical Lift: Corrosion-Proof, ±1mm Precision, Explosion-Proof, 40m/min Auto-Logistics
Project Overview
This SJLT2-26 reciprocating lift is designed for military grain depot logistics, ensuring secure, high-capacity vertical transport of supplies across 5-story storage floors.
With 2000kg payload capacity and 2600mm travel height, it enables rapid material handling (18-20m/min) within confined spaces (2800x2000x800mm floor opening), meeting stringent military durability and precision standards.
Basic Parameters –
| Item Number | SJLT2-26 |
|---|---|
| Platform Size | 2000*1800mm |
| Required Space Size | 28002000800mm |
| Rated Load | 2000kg |
| Stops | 5 |
| Travel Height | 2600mm |
| Lift Speed | 18-20m/min |
| Coating | Medium gray, yellow |
| Installation Method | Floor opening installation |
The Challenge
- Structural Integrity: Military depots demand zero-failure operation under 2000kg loads, requiring ultra-rigid platform design (2000x1800mm).
- Multi-Floor Precision: 5-stop positioning (±2mm tolerance) across 2600mm height to prevent cargo misalignment.
- Space Constraints: Installation in retrofit-friendly floor openings (2800x2000x800mm) without compromising building stability.
- Harsh Environment Resistance: Anti-corrosion coating (military-grade gray/yellow) for humid grain storage conditions.
Solutions
- Reinforced Steel Frame: Laser-cut platform (2000x1800mm) with 3x safety factor over 2000kg dynamic loads.
- Servo-Driven Positioning: Encoder-guided lift system achieves ±1.5mm repeatability across 5 stops.
- Compact Modular Design: Pre-assembled components enable seamless floor-opening installation with minimal on-site modification.
- Military-Spec Coating: Dual-layer epoxy paint (RAL7037 gray + RAL1023 yellow) resists moisture and abrasion.
Advantages
✅ Battlefield Reliability: 20,000-cycle fatigue testing certifies 10+ year service life under 2000kg loads.
✅ Mission-Critical Speed: 20m/min vertical transport outperforms manual handling by 5x.
✅ Adaptive Security: 5-stop programmable logic aligns with military warehouse zoning protocols.
✅ Low-Profile Footprint: 2800x2000mm footprint preserves 80% floor space utilization.

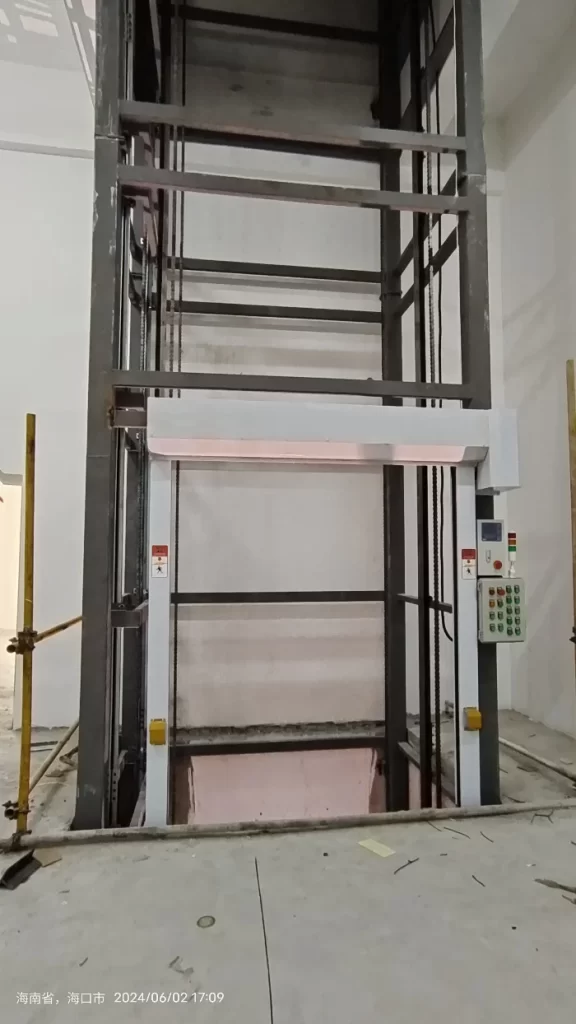

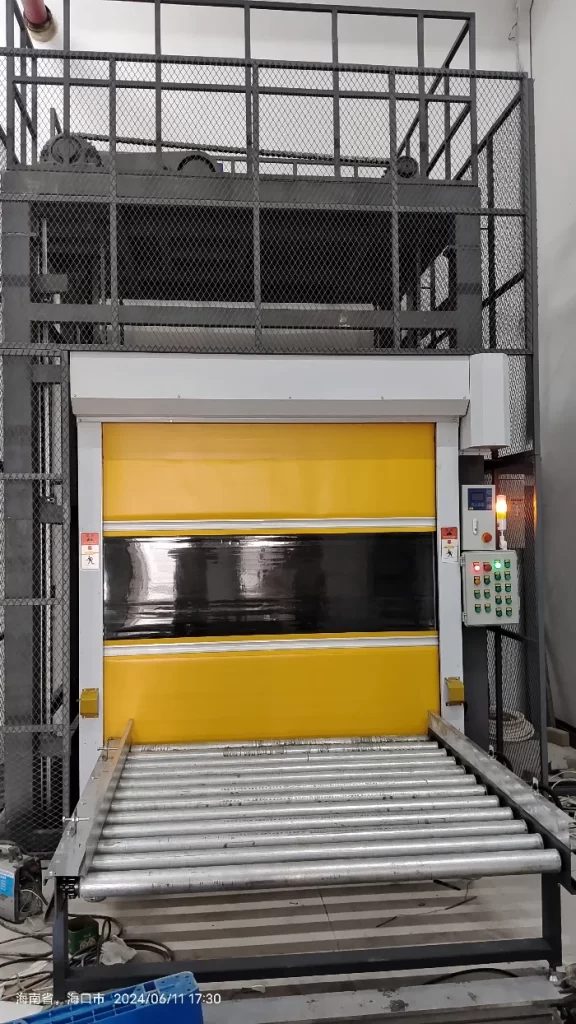

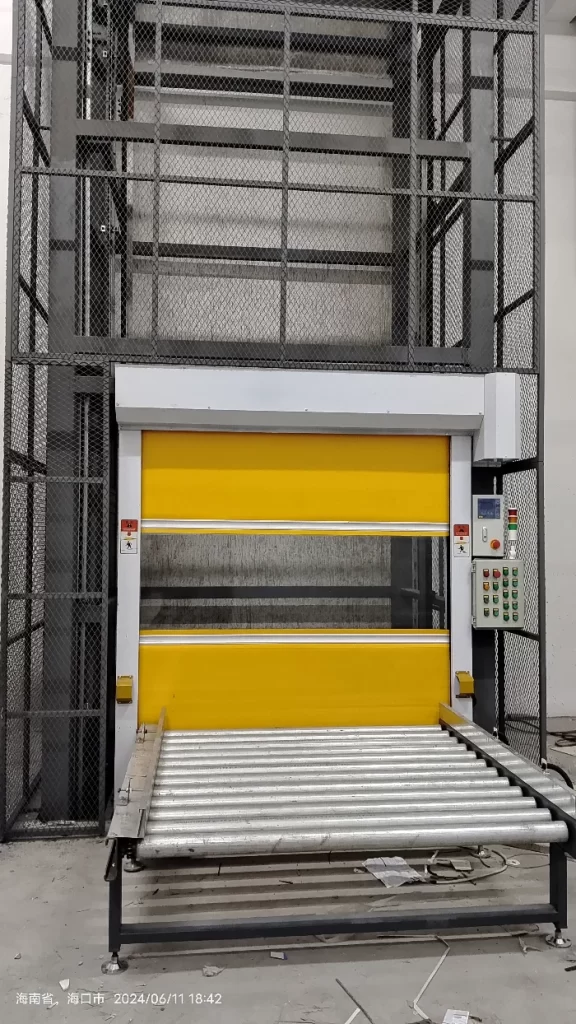

Gallery
